2018 Embraer Legacy 500
Price: Call for Price
- Serial Number: 55000084
- Tail Number: N440AF
- Hours: 2,436
- Cycles: 1,158
Synthetic Vision System
Avance L5 Wi-Fi
FANS 1/A & CPDLC
Engines and APU Enrolled on MSP Gold
EEC Standard with Landing Gear Overhaul Option
XM Weather
Avance L5 Wi-Fi
FANS 1/A & CPDLC
Engines and APU Enrolled on MSP Gold
EEC Standard with Landing Gear Overhaul Option
XM Weather
Airframe
Total Hours:
2,436
Total Cycles:
1,158
Engines
Honeywell HTF 7500E
Engine Program Coverage:
MSP Gold
Engine 1
Serial Number:
P131367
Hours Since New:
2,436
Cycles Since New:
1,158
Engine 2
Serial Number:
P131368
Hours Since New:
2,436
Cycles Since New:
1,158
APU
Description:
Honeywell GTCP36-150(EMB)
APU Program Coverage:
MSP Gold
Serial Number:
P-257
Total Time Since New:
1,375
Total Cycles Since New:
1,823

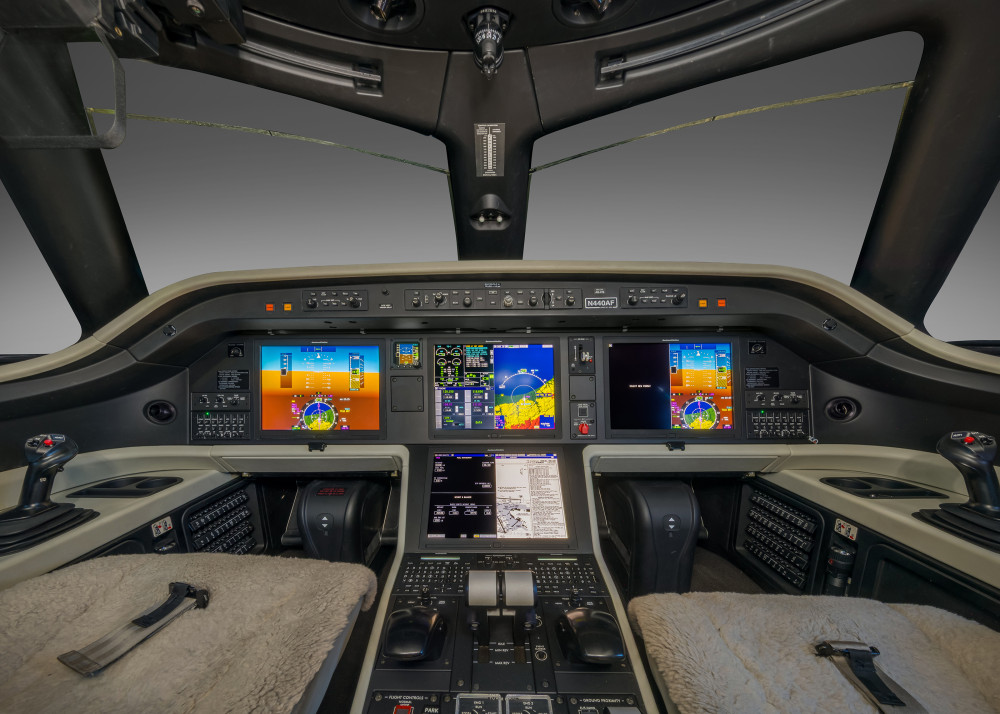

Avionics
ADS-B Out Equipped:Yes
FANS Equipped:Yes
WAAS Equipped:Yes
CPDLC Equipped:Yes
Four 15.1-inch Active-Matrix Liquid Crystal Smart Displays
Dual Air Data System RVSM Compatible
Dual Enhanced Attitude Heading Reference System (AHRS)
Dual Flight Management System (FMS)
Dual Flight Director with Passive Fail Autopilot
Dual channel Data Module Cabinet (DMC)
Dual Display Control Panel (DCP)
Dual Multifunction Keyboard Panel (MKP)
Dual channel Aural Warning Unit (AWU)
Dual digital Audio Control Panel (ACP)
Dual VHF Communication Transceivers
Dual Global Positioning System (GPS) w/WAAS
Dual Navigation Receivers (VOR/ILS/MB)
Two Modular Integrated Processing Cabinets (IPC)
Synthetic Vision System (SVS) with Full-Screen Presentation
Auto-Throttle System
Engine Indication and Crew Alerting System (EICAS)
Graphical System Synoptic Presentations
Integrated Flight Information System (IFIS)
Single ADF
Third VHF Radio
Dual HF w/SELCAL
115 Cubic FT Oxygen
Three Frequency Emergency Locator Transmitter (ELT) High
Resolution Terrain Maps
Vertical Profile Window
Standby Flight Information System (SFIS)
Flight Control Panel (FCP)
Reversionary Switch Panel
Digital Audio System
Weather Radar (18” antenna) with Turbulence Detection
Mode
Distance Measuring Equipment (DME) Receiver
Radio Altimeter
Traffic Surveillance System (Integrated TCAS II w/
Enhanced Mode S
Second Enhanced Mode S Transponder
Terrain Awareness and Warning System Class A (TAWS-A)
Onboard Maintenance System (OMS)
Electronic Checklist
Cockpit Voice Recorder (CVR)
Flight Data Recorder (FDR)
RNP AR .3
ACARS Datalink
Satellite Datalink Weather (XM)
Paperless Cockpit Operation
Pilot Tables (2)
Fly-By-Wire Side-Stick Control
ATG GoGo Advance L5 Broadband Wi-Fi w Text to
Talk
Dual Air Data System RVSM Compatible
Dual Enhanced Attitude Heading Reference System (AHRS)
Dual Flight Management System (FMS)
Dual Flight Director with Passive Fail Autopilot
Dual channel Data Module Cabinet (DMC)
Dual Display Control Panel (DCP)
Dual Multifunction Keyboard Panel (MKP)
Dual channel Aural Warning Unit (AWU)
Dual digital Audio Control Panel (ACP)
Dual VHF Communication Transceivers
Dual Global Positioning System (GPS) w/WAAS
Dual Navigation Receivers (VOR/ILS/MB)
Two Modular Integrated Processing Cabinets (IPC)
Synthetic Vision System (SVS) with Full-Screen Presentation
Auto-Throttle System
Engine Indication and Crew Alerting System (EICAS)
Graphical System Synoptic Presentations
Integrated Flight Information System (IFIS)
Single ADF
Third VHF Radio
Dual HF w/SELCAL
115 Cubic FT Oxygen
Three Frequency Emergency Locator Transmitter (ELT) High
Resolution Terrain Maps
Vertical Profile Window
Standby Flight Information System (SFIS)
Flight Control Panel (FCP)
Reversionary Switch Panel
Digital Audio System
Weather Radar (18” antenna) with Turbulence Detection
Mode
Distance Measuring Equipment (DME) Receiver
Radio Altimeter
Traffic Surveillance System (Integrated TCAS II w/
Enhanced Mode S
Second Enhanced Mode S Transponder
Terrain Awareness and Warning System Class A (TAWS-A)
Onboard Maintenance System (OMS)
Electronic Checklist
Cockpit Voice Recorder (CVR)
Flight Data Recorder (FDR)
RNP AR .3
ACARS Datalink
Satellite Datalink Weather (XM)
Paperless Cockpit Operation
Pilot Tables (2)
Fly-By-Wire Side-Stick Control
ATG GoGo Advance L5 Broadband Wi-Fi w Text to
Talk
Navigation and Compliance
FANS Equipped:Yes
CPDLC Equipped:Yes

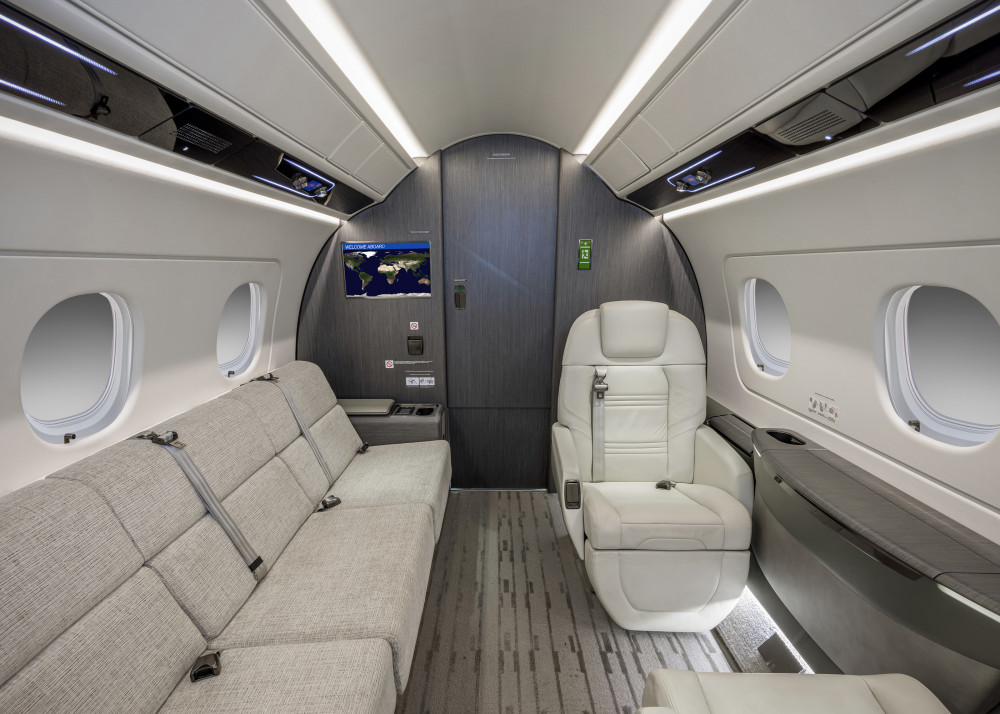

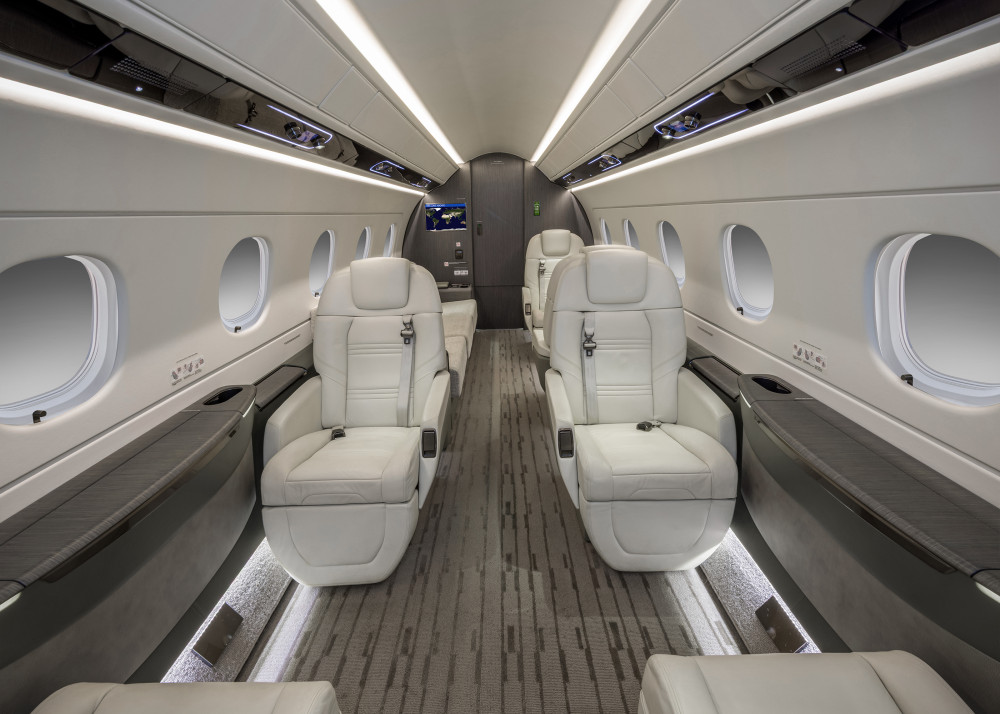

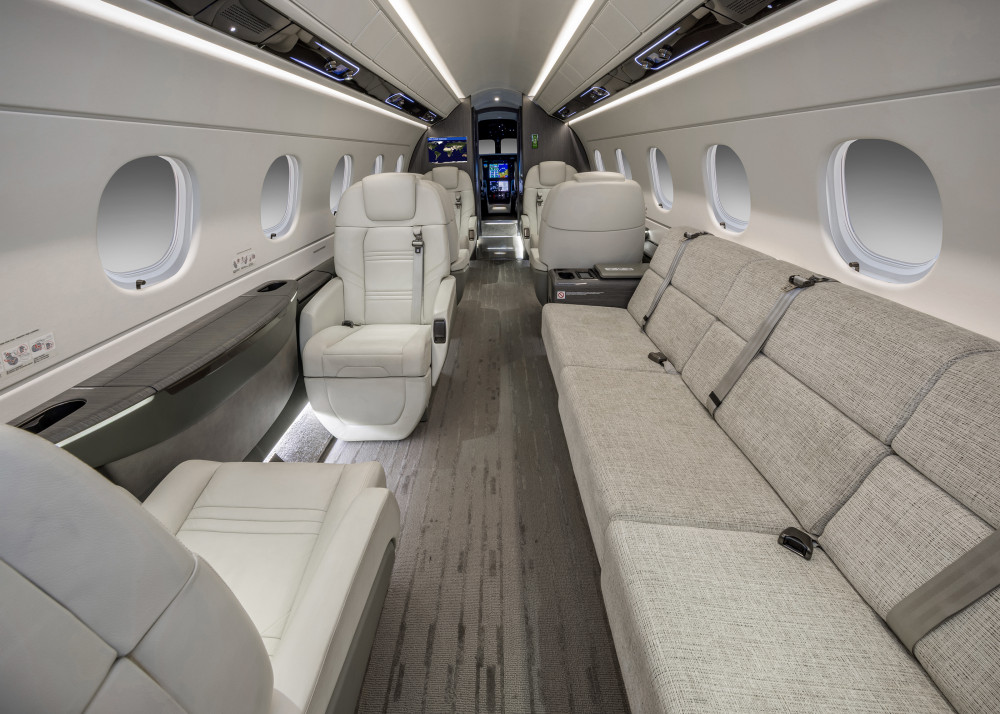

Interior
Number Of Passengers:
9

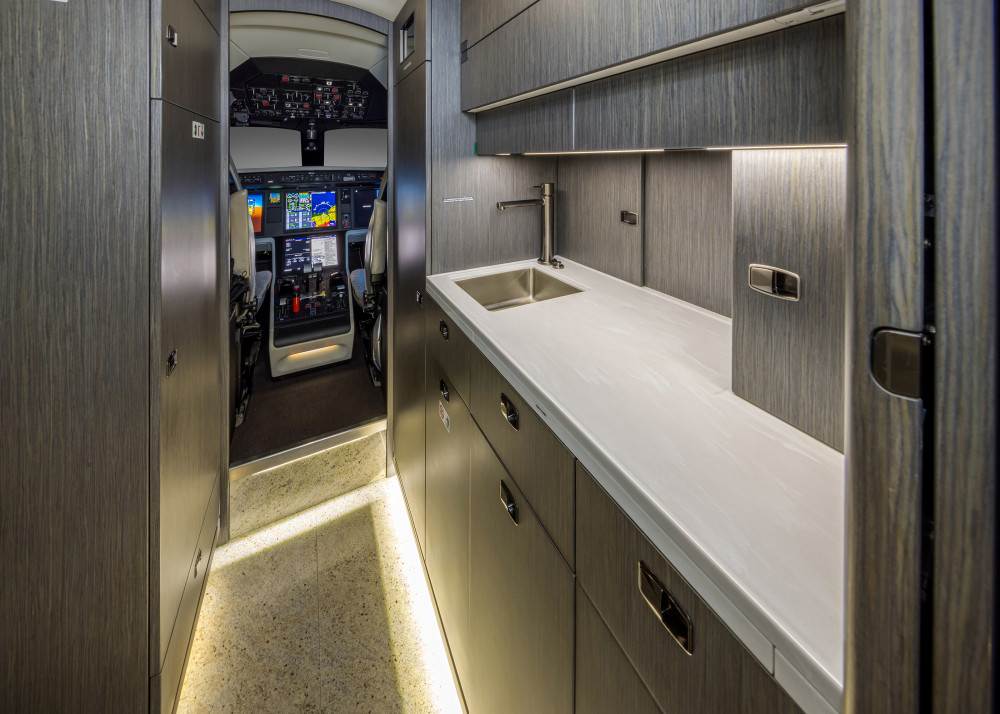

Forward Galley: Yes

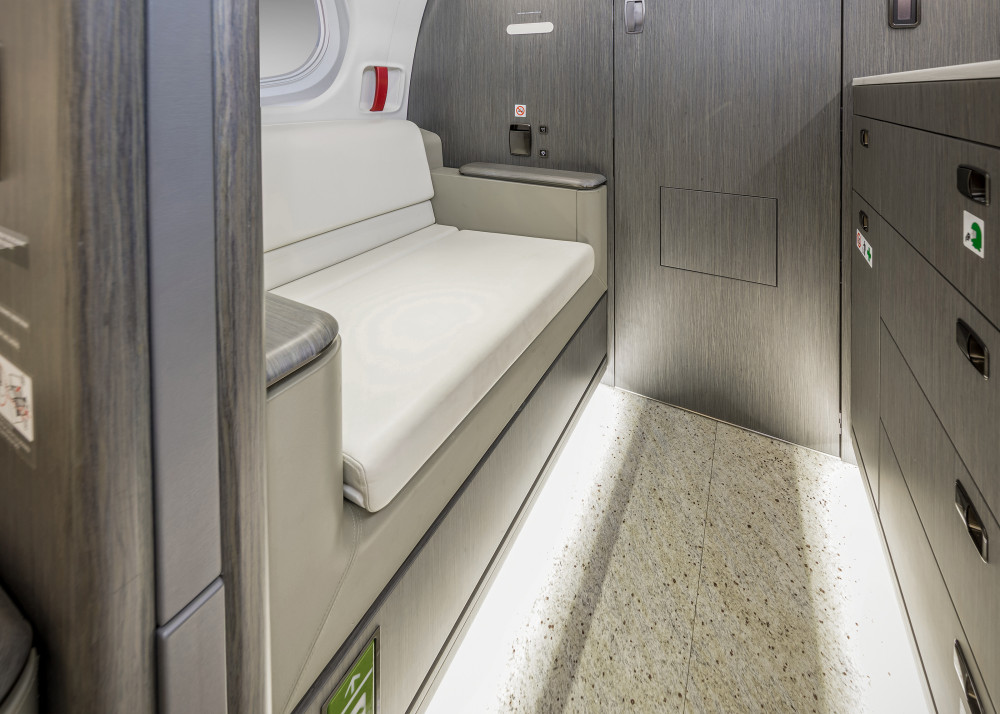

Aft Lavatory: Yes
Interior Last Refurbished:
2018
Nine (9) Passenger Fire-Blocked Custom Leather & Fabric Interior, Six (6) Enhanced Executive Seats with Leg
Rest and Berthing Option; Aft Right Side Three (3) Place Divan Right Side Forward Galley w/Quartz
Entryway Floor & Corian Surfaces, Microwave, Hot/Cold Beverage Service, 9” Passenger Touchscreen
Master Control Monitor, Sink w/Water, Food Storage, Entryway Acoustic Curtain. Aft Lavatory w/Quartz
Floor & Mirrored Vanity & Corian Surfaces. Enhanced CMS w/Blu-Ray Player, Jet Map (passenger in-flight
Information system w/maps), Audio System, HDMI Inputs, Two (2) 19” HD Cabin Monitors Located on Fwd
and Aft Bulkheads, LED Lighting, Electronic Controls, Window Shades, 115/60hz Cabin & Galley Utility
Outlets. Passenger Address System. Completed October 2018.
Rest and Berthing Option; Aft Right Side Three (3) Place Divan Right Side Forward Galley w/Quartz
Entryway Floor & Corian Surfaces, Microwave, Hot/Cold Beverage Service, 9” Passenger Touchscreen
Master Control Monitor, Sink w/Water, Food Storage, Entryway Acoustic Curtain. Aft Lavatory w/Quartz
Floor & Mirrored Vanity & Corian Surfaces. Enhanced CMS w/Blu-Ray Player, Jet Map (passenger in-flight
Information system w/maps), Audio System, HDMI Inputs, Two (2) 19” HD Cabin Monitors Located on Fwd
and Aft Bulkheads, LED Lighting, Electronic Controls, Window Shades, 115/60hz Cabin & Galley Utility
Outlets. Passenger Address System. Completed October 2018.

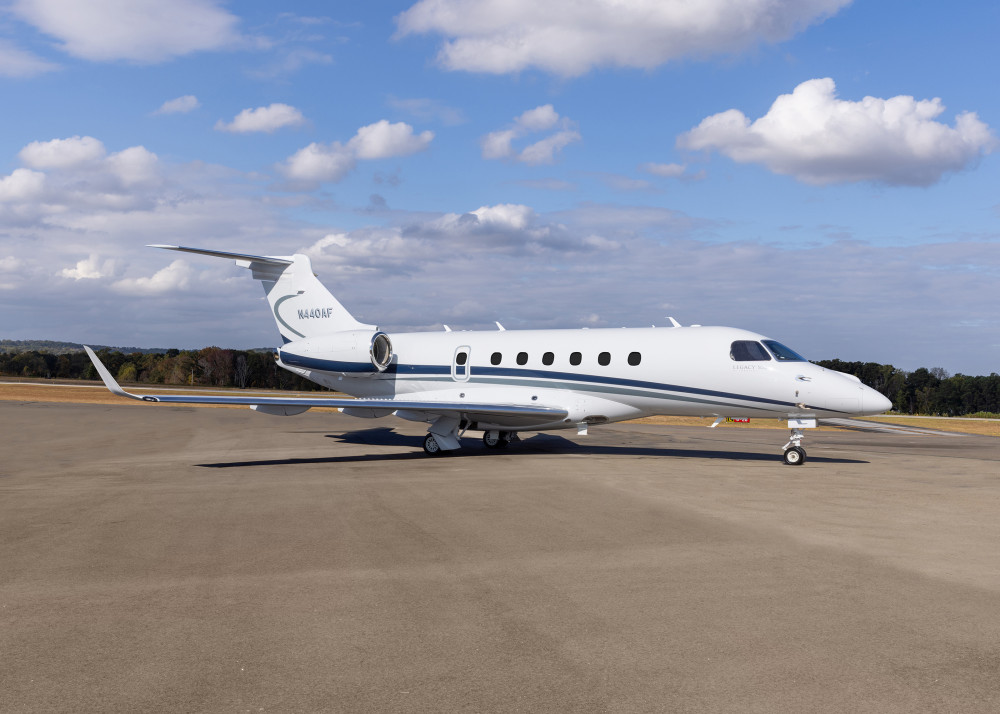

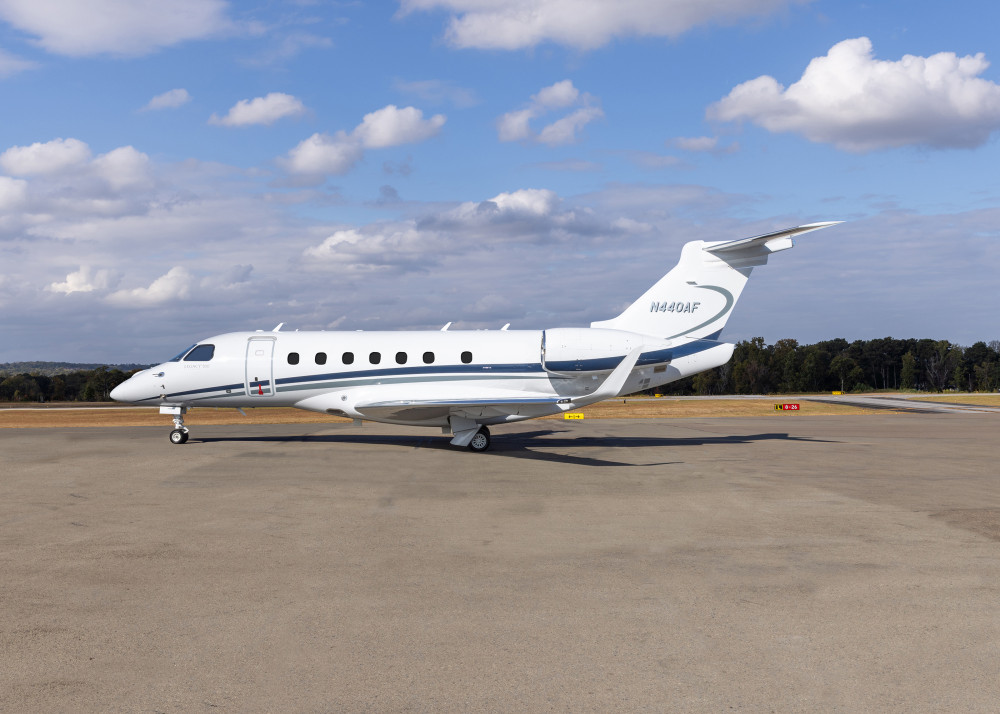

Exterior
Base Paint Colors:
Matterhorn White
Stripe Colors:
Dark Grey and Evening Sky
Last Painted:
2018
Overall Matterhorn White with Dark Gray and Evening Sky Accent Striping. Painted October 2018.
