2022 Daher-Socata TBM 940

Price: Contact Broker Sale Pending!

  • Serial Number: 1413
  • Tail Number: N566FF
  • Hours: 0
  • Cycles: 0
The TBM 940 offers the latest cockpit technology with the Garmin G3000 avionics suite controlled by the new GTC 580 touchscreen controllers. The TBM 940 features enhancements over the 930 like Auto Throttle, Automatic Ice Detection and activation, new interior design, and Ground Suppression Garmin Radar. The TBM 940 has a maximum cruise speed of 330 knots and 1,730 nautical mile range.

•Auto throttle
•Automatic ice detection and activation
•HomeSafe® Emergency Autoland

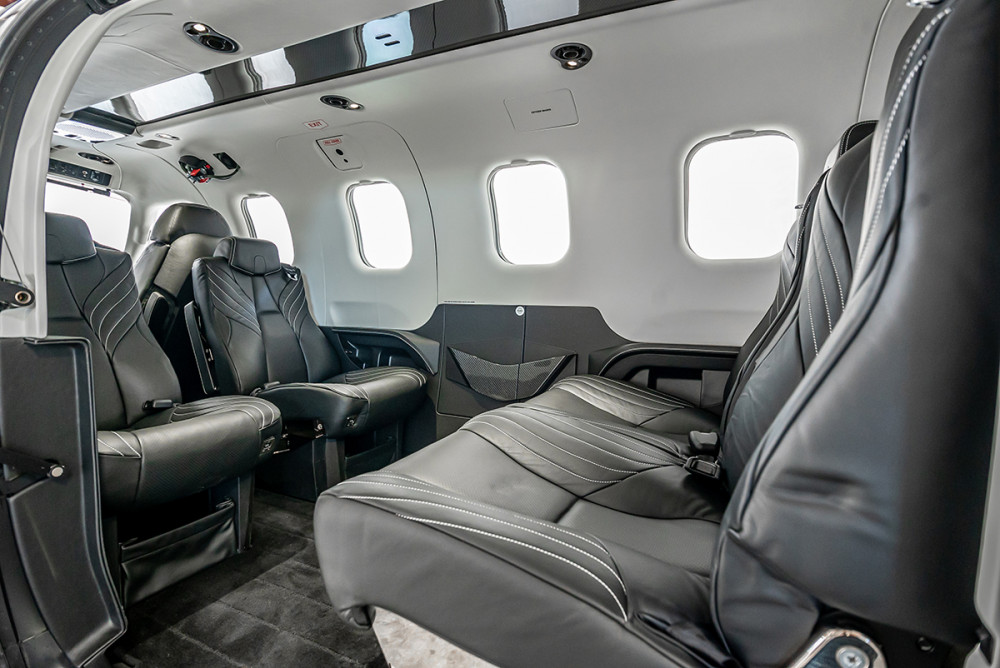

•New interior design
•Ground suppression Garmin radar
•5 Year/1,000 hr, Extended Warranty & Care Maintenance Program.
•330-knot cruise
•31,000-ft. reached in 18 minutes, 45 seconds


Total Hours:
Total Cycles:


Garmin G3000 Avionics System
1 GMA 36B Audio controller with Bluetooth audio link and integrated marker beacon receiver, intercom and public address capability
2 GDU 1250W, 12'' WUXGA high resolution PFD Primary Flight Displays
1 GDU 1250W, 12" WUXGA high resolution MFD Multi-Function Display with engine, pressurization, electrical, fuel, flaps and trims indication, Crew Alerting System (CAS), checklist capability, aircraft synoptics and navigation mapping system
2 GEA 71B Engine and airframe interface unit
2 GRS 79 Attitude and Heading Reference System (AHRS)
2 GMU 44 triaxial magnetometer
2 GDC 72B digital air-data computers w/ dual probe system
2 GTX 345 Mode S Extended Squitter transponder (#1) ADS-B In & out
2 GTC 580 Tactile Controllers conveniently located on the reclined section of the panel
1 GMC 711 AT autopilot and autothrottle mode controller located in upper central panel
4 GSA 81 torque flight servos (yaw, pitch, pitch trim and roll)
1 GSA 87 Servo actuator for Autothrottle
1 GTA 82 adapter for yaw auto trim device
MD302 Back up Attitude, Airspeed, Altitude and heading digital display, 2 screens instrument with MD32 remote magnetometer
LPV, LNAV/VNAV (including Baro VNAV) approaches support and advisory vertical guidance for LP, LNAV and Visual approaches
ESP Electronic Stability and underspeed Protection
AOA/stall indicator and Stick shaker based on heated probe
Smooth transition from barometric VNAV to Glideslope/path
Surface Watch® for airport environment awareness
Auto-Ice protection system with ice detection sensor
LVL Level button to roll level and hold altitude
EDM Emergency Descent Mode
1 Flightstream FS510 Bluetooth/Wifi allowing Tablet to Avionics secured exchange information channel
Airframe de-icing control panel
Inertial separator control
Landing gear control panel
Electric generation controls and monitoring on overhead panel
Dedicated master warning and caution for Crew Alerting System message acknowledgement
Voice Alert System
Cabin temperature control (dual zone, with over ride capability)
Heated stall warning system
Digital chronometer displayed on GDU
Digital Flight time hourmeter
Instrument panel lighting, CB dedicated switch lighting
6 Bose Headsets
Flight Data Recorder
RVSM Package
Garmin GTS 820 Traffic Advisory System
WX 500 Stormscope
Garmin GWX 70 Four Color Radar with with Turbulence detection and Ground Suppression
Garmin GDL69 XM Data link weather and XM music
Jeppesen Chart View
Synthetic Vision
GSR56 Integrated Data Link Sat Phone for Text and Talk
HomeSafe® Emergency Autoland


Number Of Passengers:
Interior Last Refurbished:


Last Painted:
