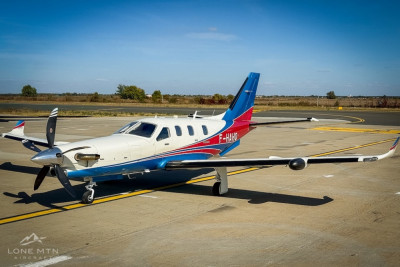

2022 Daher-Socata TBM 960
Price: $5,100,000
- Serial Number: 1417
- Tail Number: F-HAHQ
- Hours: 860
2022 Daher TBM 960 – latest generation with EPECS & the five-blade Hartzell Raptor propeller
Garmin HomeSafe™ Autoland & E-Throttle with Garmin G3000 flight deck
GWX 8000 Auto-radar, FIKI, electrically dimmable windows
860 hours total time
Garmin HomeSafe™ Autoland & E-Throttle with Garmin G3000 flight deck
GWX 8000 Auto-radar, FIKI, electrically dimmable windows
860 hours total time
Airframe
Total Hours:
860
Total Cycles:
0
860 Hours Total Time Since New
6.2 psi pressurisation covering cabin and baggage area
All-metal airframe; cowling and winglets in carbon fibre
Factory corrosion-proofing
Electro-hydraulically retracted undercarriage with hydraulic disc braking
Dedicated crew door plus wide rear cargo/passenger door with fold-away steps; emergency exit
Lockable forward baggage locker (unpressurised)
Full acoustic and thermal cabin lining
6.2 psi pressurisation covering cabin and baggage area
All-metal airframe; cowling and winglets in carbon fibre
Factory corrosion-proofing
Electro-hydraulically retracted undercarriage with hydraulic disc braking
Dedicated crew door plus wide rear cargo/passenger door with fold-away steps; emergency exit
Lockable forward baggage locker (unpressurised)
Full acoustic and thermal cabin lining
Engines
Pratt & Whitney Canada PT6E-66XT turboprop
Fully digital engine & propeller management (EPECS) – one lever controls power and prop
860 Hours Since New
TBO 5,000 hours
Inertial separator deploys automatically
Fully digital engine & propeller management (EPECS) – one lever controls power and prop
860 Hours Since New
TBO 5,000 hours
Inertial separator deploys automatically
Avionics

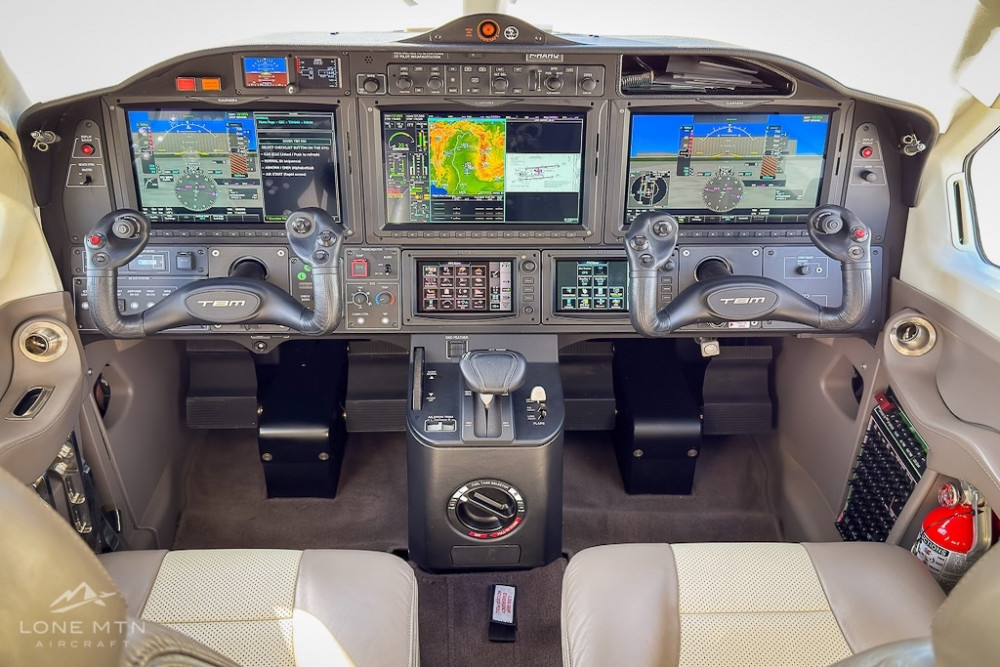

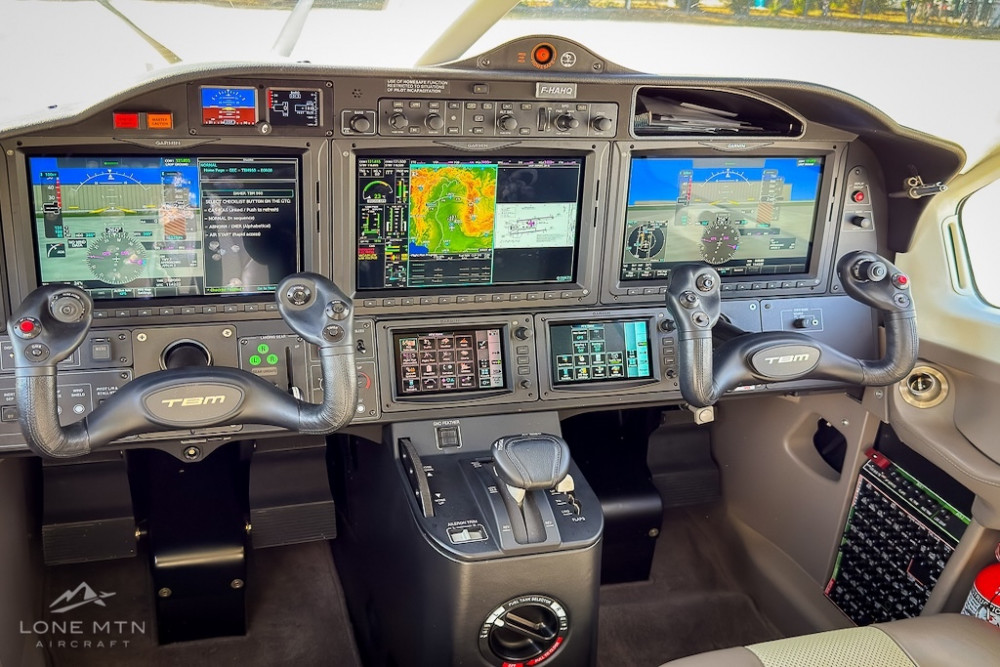

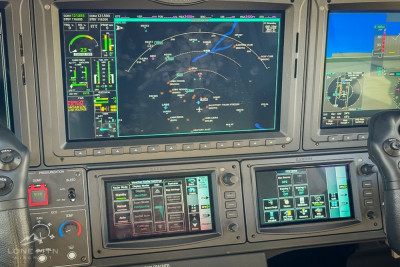

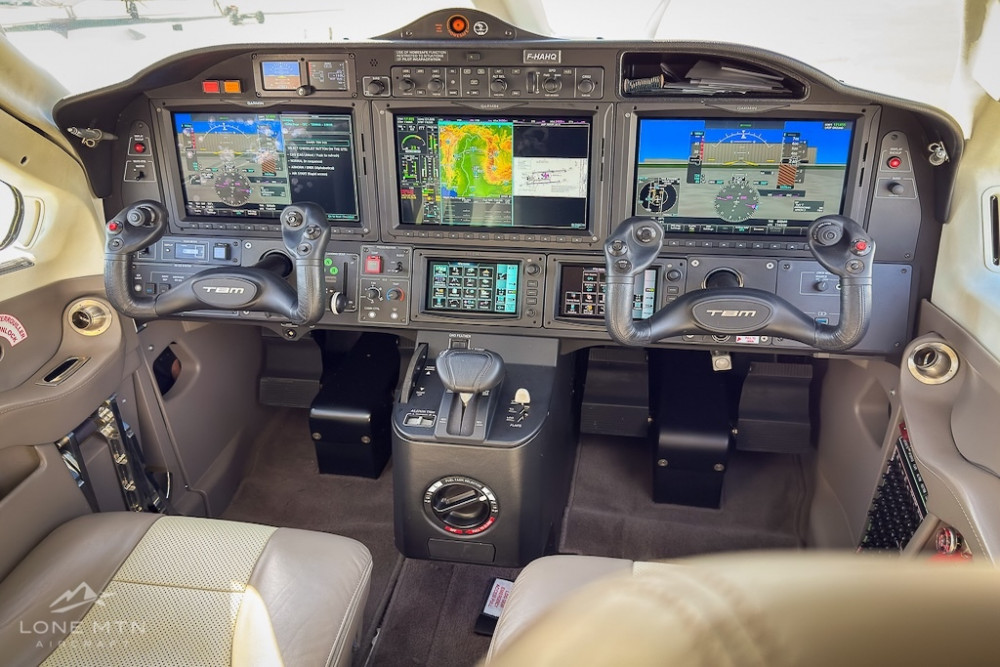

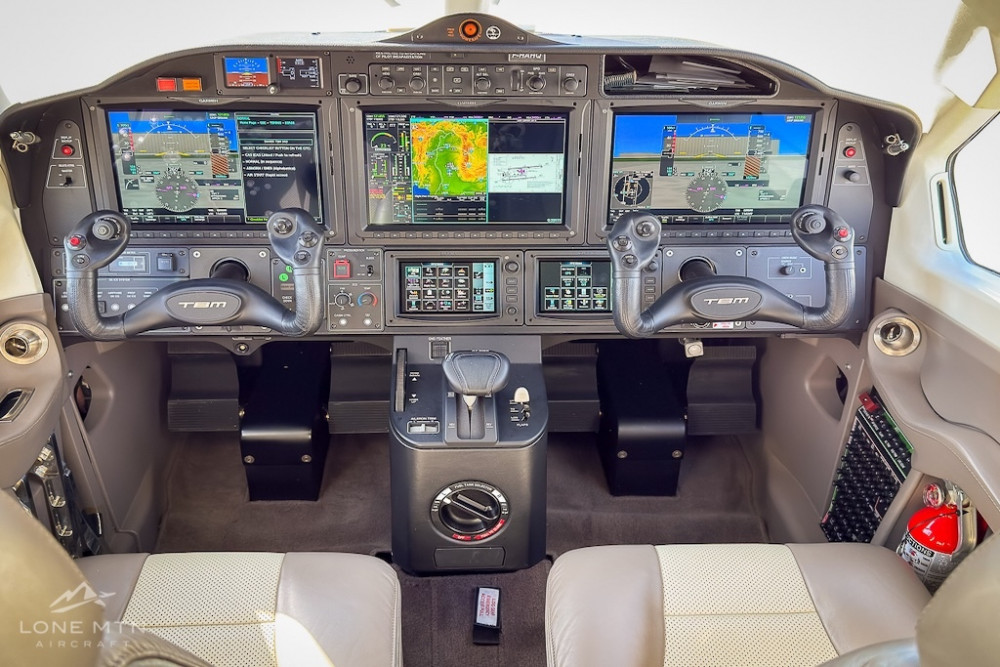

Garmin G3000 integrated flight deck, including:

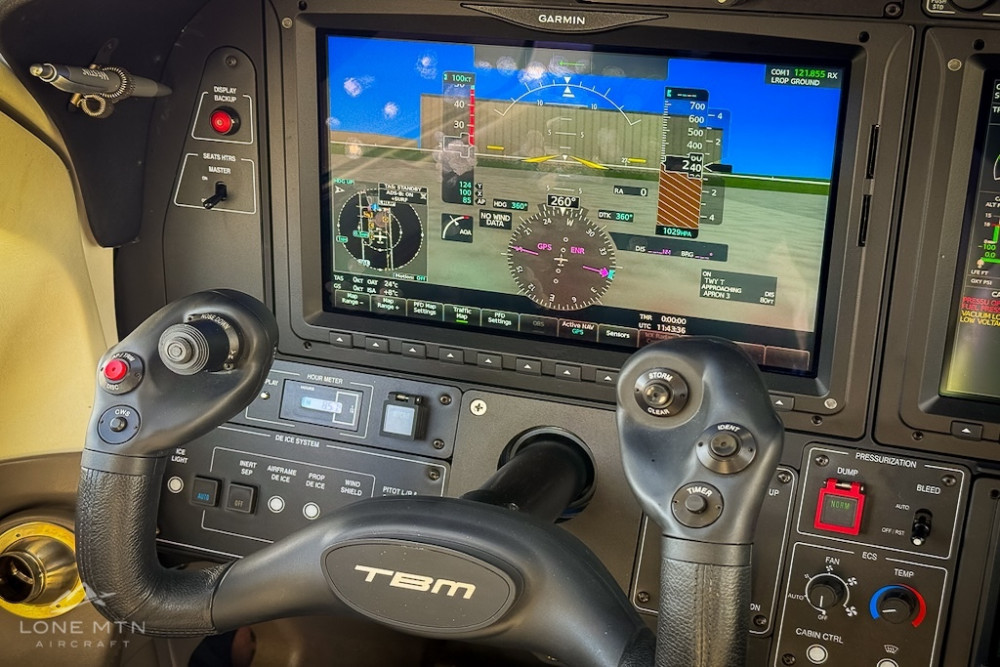

2 x GDU 1250W 12” WUXGA Primary Flight Displays
1 x GDU 1250W 12” WUXGA Multi-Function Display

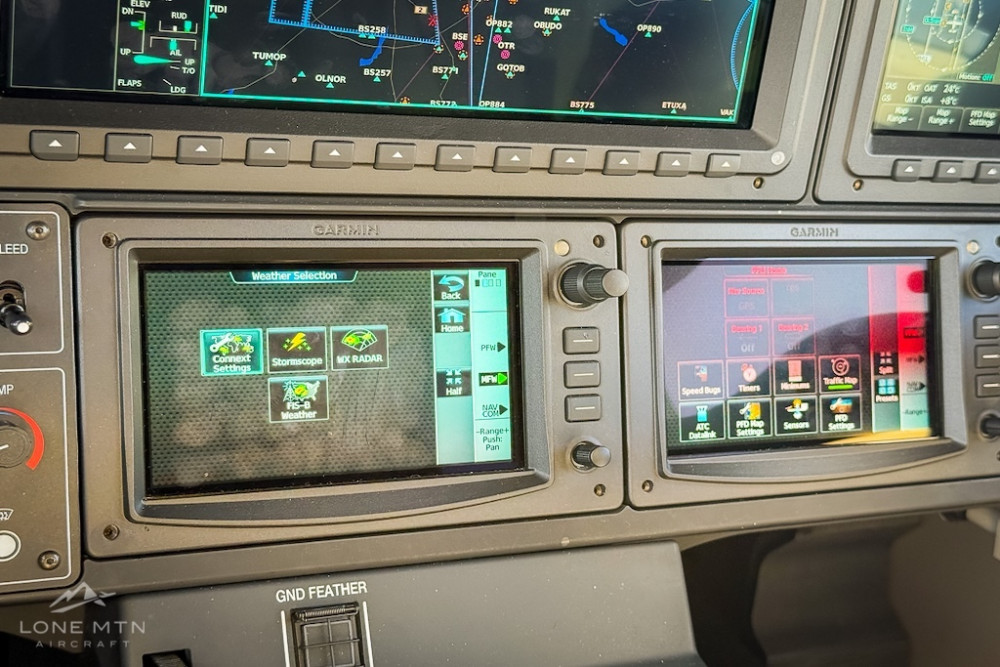

2 x GTC 585 Touchscreen Controllers
Dual GIA 64E NAV / COM / ILS / WAAS GPS
Dual GRS 79 AHRS with dual GMU 44 Magnetometers
Dual GDC 72B Digital Air Data Computers
Garmin GMA 36B Audio Controller
Garmin GTX 345R ADS-B In/Out Transponder & GTX 335R ADS-B Out Transponder
Synthetic Vision Technology (SVT) on both PFDs
WAAS / LPV and LNAV/VNAV (including Baro VNAV) approach capability
ChartView Electronic Charts
MD302 Standby Attitude Module
Garmin GDL 60 PlaneSync™ – automatic database updates via 4G / Wi-Fi
Autopilot & Automation:
Garmin GFC 700 Digital Autopilot with GMC 711 Controller
Garmin Autothrottle
Garmin HomeSafe™ Emergency Autoland
Electronic Stability & Protection (ESP) and Digital Envelope Protection
Angle of Attack (AOA) Indication
On-Board Weather & Connectivity Features:

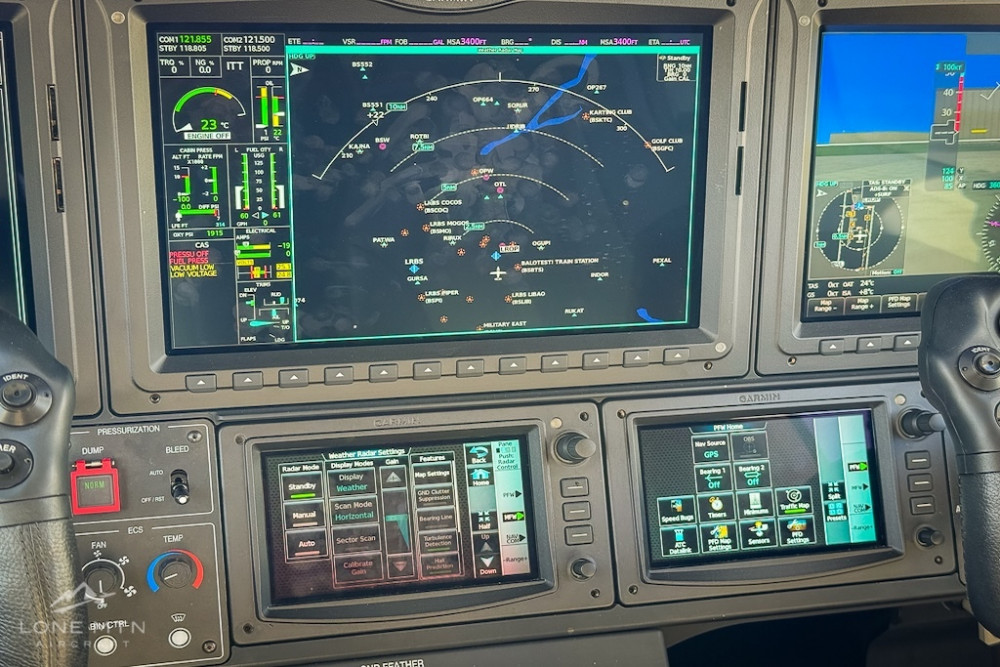

Garmin GWX 8000 StormOptix™ Doppler Weather Radar
Stormscope WX500
Garmin GSR 56 Iridium datalink – satellite phone and worldwide weather
Garmin GRA 55 Radar Altimeter
2 x GDU 1250W 12” WUXGA Primary Flight Displays
1 x GDU 1250W 12” WUXGA Multi-Function Display
2 x GTC 585 Touchscreen Controllers
Dual GIA 64E NAV / COM / ILS / WAAS GPS
Dual GRS 79 AHRS with dual GMU 44 Magnetometers
Dual GDC 72B Digital Air Data Computers
Garmin GMA 36B Audio Controller
Garmin GTX 345R ADS-B In/Out Transponder & GTX 335R ADS-B Out Transponder
Synthetic Vision Technology (SVT) on both PFDs
WAAS / LPV and LNAV/VNAV (including Baro VNAV) approach capability
ChartView Electronic Charts
MD302 Standby Attitude Module
Garmin GDL 60 PlaneSync™ – automatic database updates via 4G / Wi-Fi
Autopilot & Automation:
Garmin GFC 700 Digital Autopilot with GMC 711 Controller
Garmin Autothrottle
Garmin HomeSafe™ Emergency Autoland
Electronic Stability & Protection (ESP) and Digital Envelope Protection
Angle of Attack (AOA) Indication
On-Board Weather & Connectivity Features:
Garmin GWX 8000 StormOptix™ Doppler Weather Radar
Stormscope WX500
Garmin GSR 56 Iridium datalink – satellite phone and worldwide weather
Garmin GRA 55 Radar Altimeter
Props
Prop Information

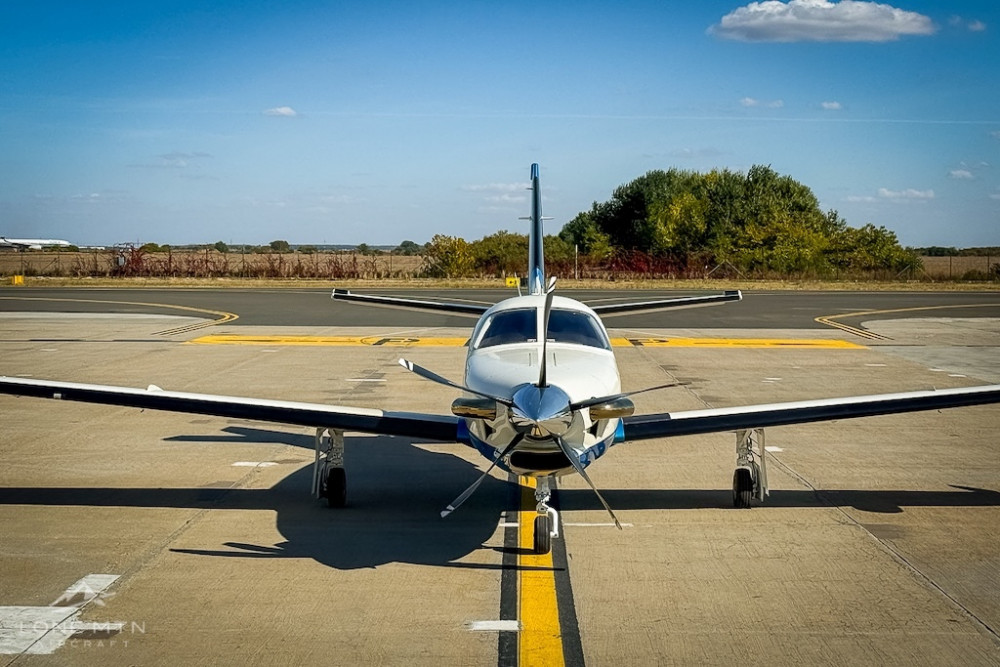

Hartzell Raptor™ five-blade composite propeller
Featherable and reversible constant-speed prop with electric blade de-icing
Polished spinner
Featherable and reversible constant-speed prop with electric blade de-icing
Polished spinner
Additional Equipment/Features
Ice Protection:
Certified Flight Into Known Icing (FIKI)
Ice detection triggers the protection systems automatically
Pneumatic boots on wing and tailplane leading edges
Heated pitots and stall-warning vane
Heated windscreens on both sides
Heated engine intake lip; LED wing-inspection light
Additional Features:
Air conditioning, controlled by touchscreen
Rear cabin comfort display for passengers
Push-button dimmable windows
Seven fast-charge USB ports plus 14 V and 115 V power outlets
Stowable cabin table
Automatic fuel tank switching
300 A main and 100 A standby generators
Safety Features:
Garmin HomeSafe™ Emergency Autoland
Oxygen for all six occupants, with quick-don masks for P1 and P2
GPS-linked three-frequency ELT
ADS-B In/Out traffic shown on the flight deck displays
ALL SPECIFICATIONS SUBJECT TO VERIFICATION UPON INSPECTION.
SOME FEATURES MAY REQUIRE ADDITIONAL SUBSCRIPTIONS.
Certified Flight Into Known Icing (FIKI)
Ice detection triggers the protection systems automatically
Pneumatic boots on wing and tailplane leading edges
Heated pitots and stall-warning vane
Heated windscreens on both sides
Heated engine intake lip; LED wing-inspection light
Additional Features:
Air conditioning, controlled by touchscreen
Rear cabin comfort display for passengers
Push-button dimmable windows
Seven fast-charge USB ports plus 14 V and 115 V power outlets
Stowable cabin table
Automatic fuel tank switching
300 A main and 100 A standby generators
Safety Features:
Garmin HomeSafe™ Emergency Autoland
Oxygen for all six occupants, with quick-don masks for P1 and P2
GPS-linked three-frequency ELT
ADS-B In/Out traffic shown on the flight deck displays
ALL SPECIFICATIONS SUBJECT TO VERIFICATION UPON INSPECTION.
SOME FEATURES MAY REQUIRE ADDITIONAL SUBSCRIPTIONS.
Interior

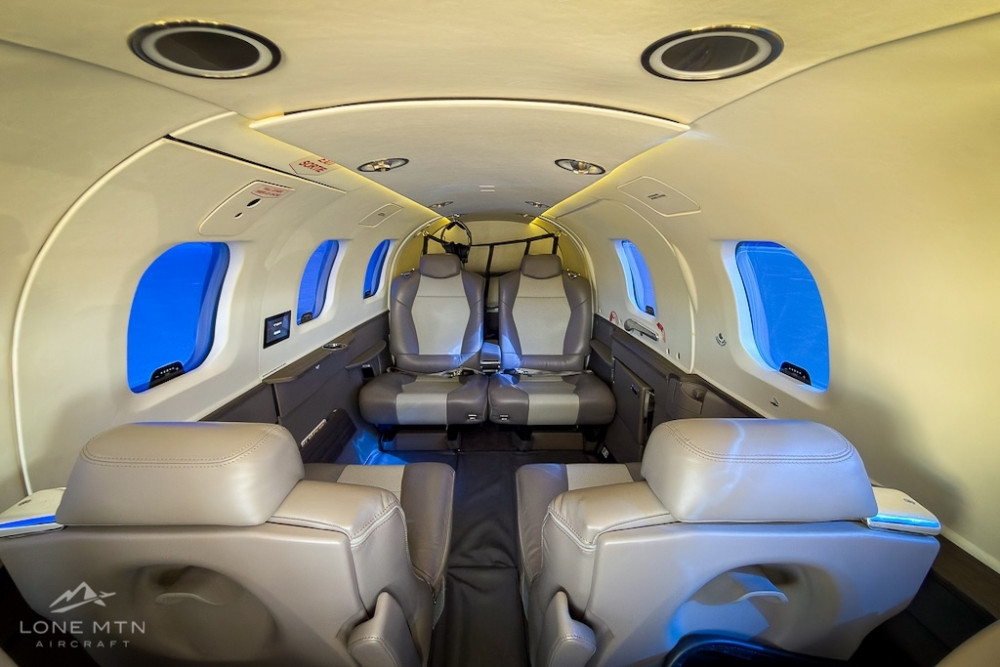

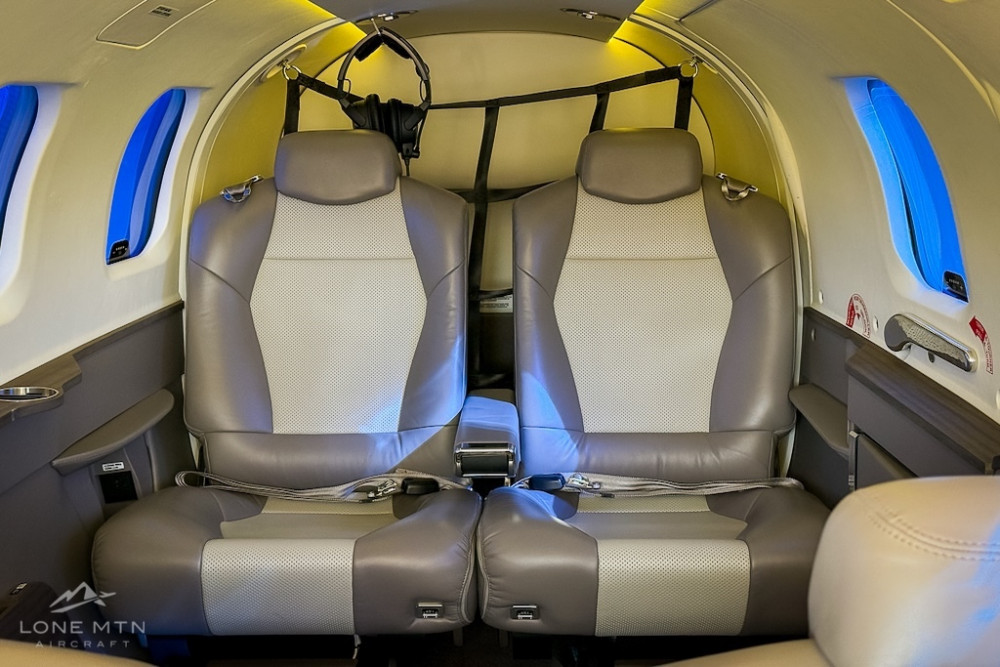

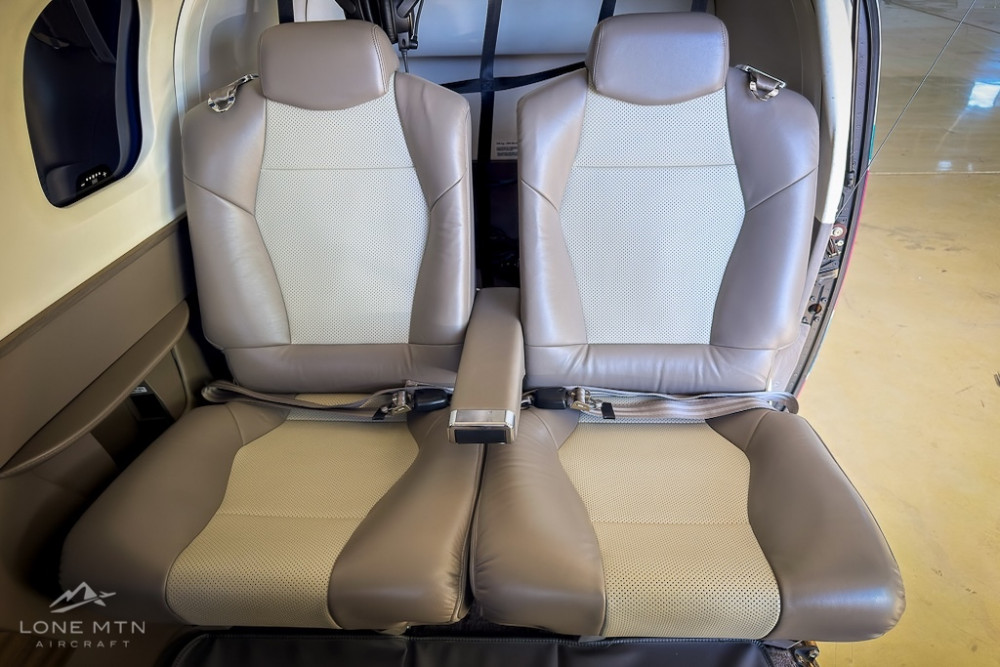

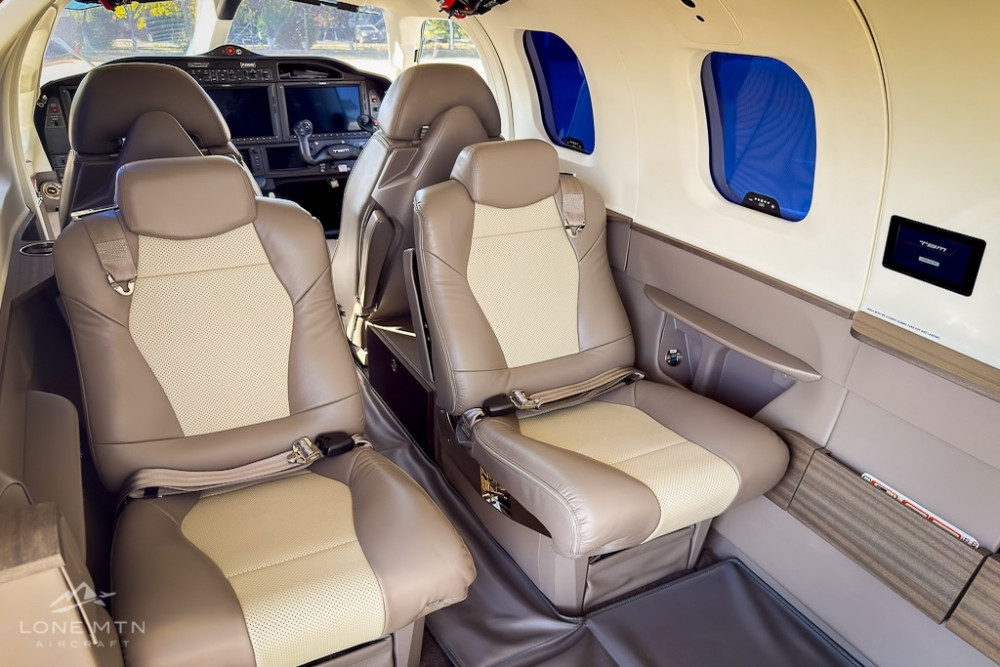

Tasteful two-tone perforated Beige Grey seat leather, light beige headlining. Sapelli Mat finishings and table.
Exterior

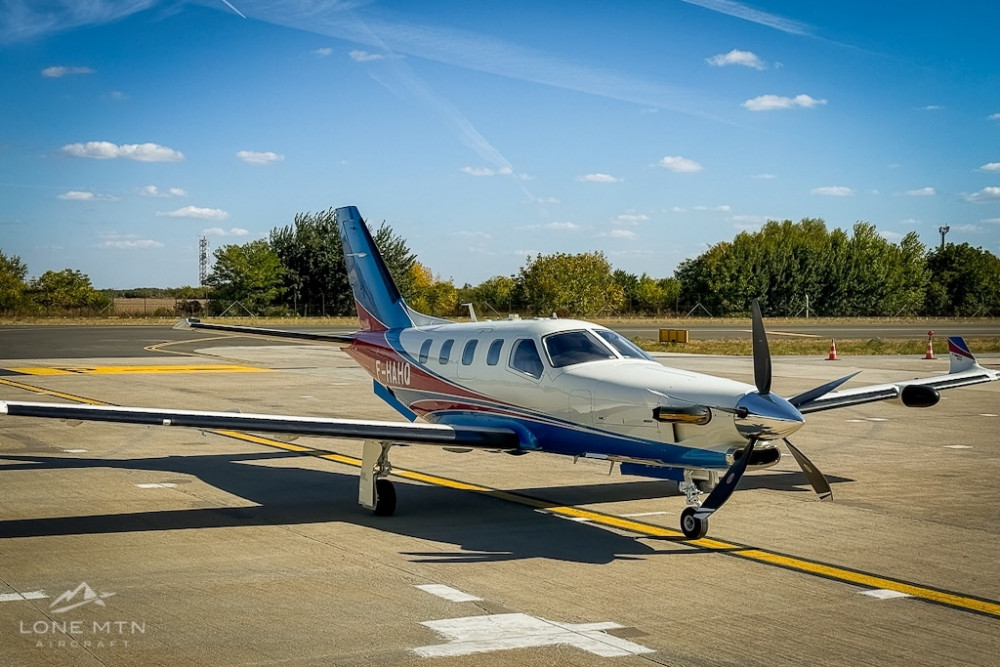

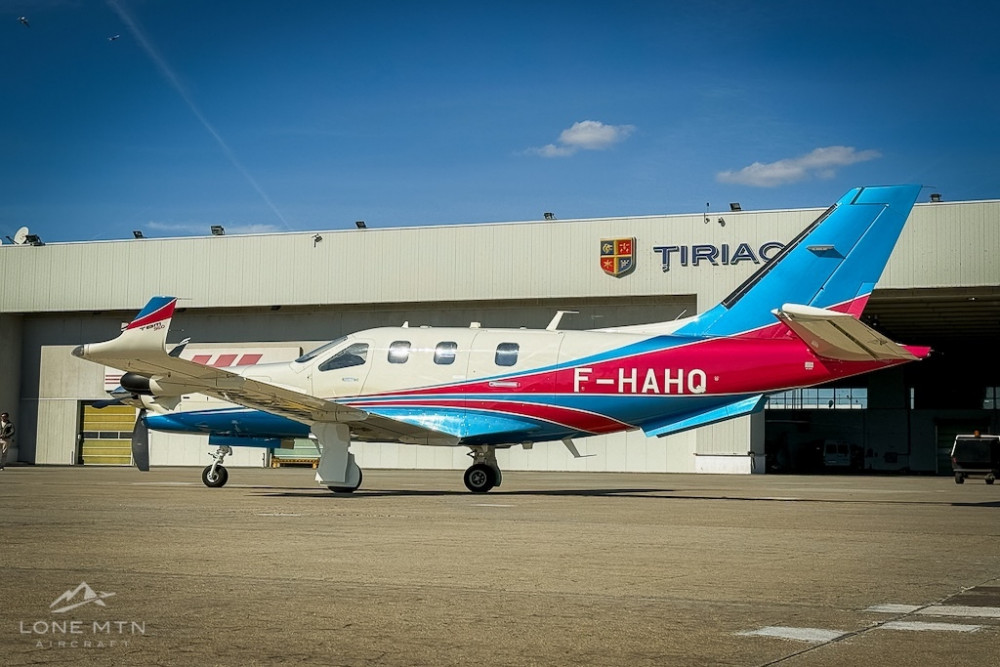

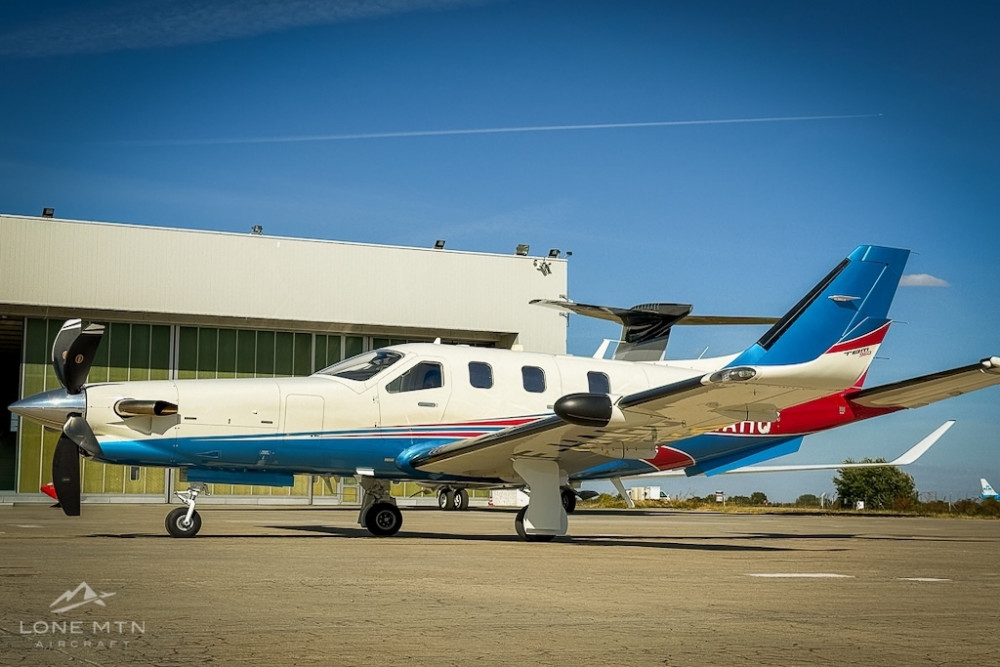

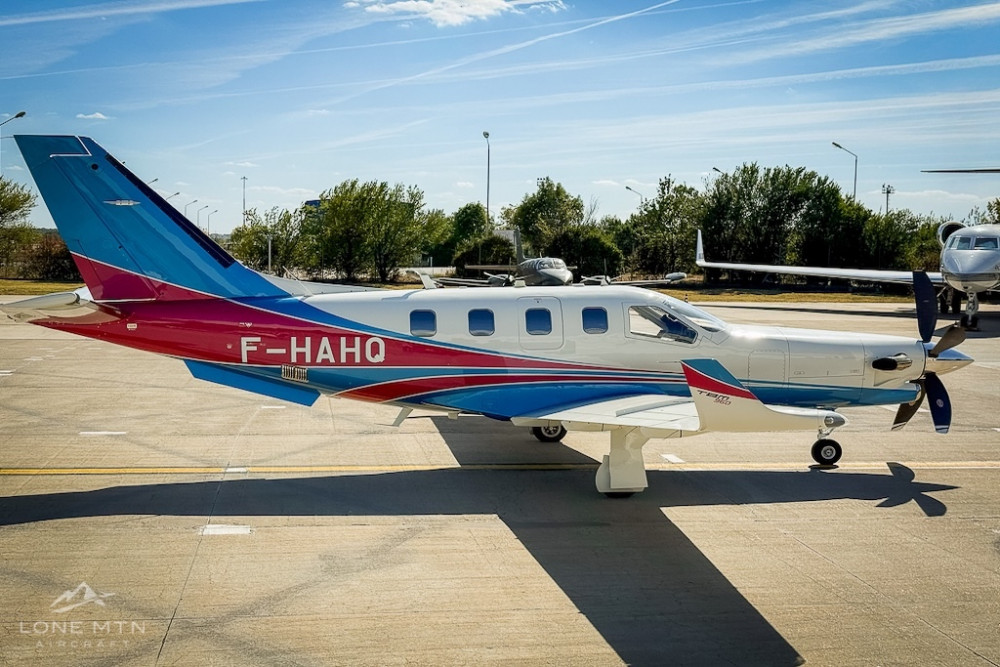

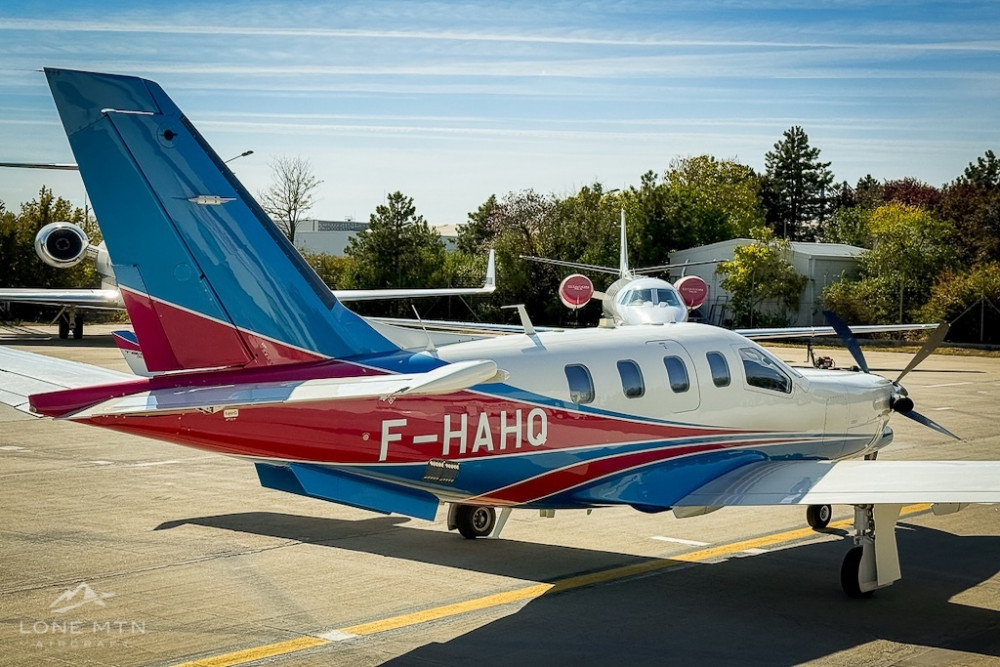

Zephyr scheme with Pure White, Light Blue and Red tail stripes. Polished aluminum spinner.
