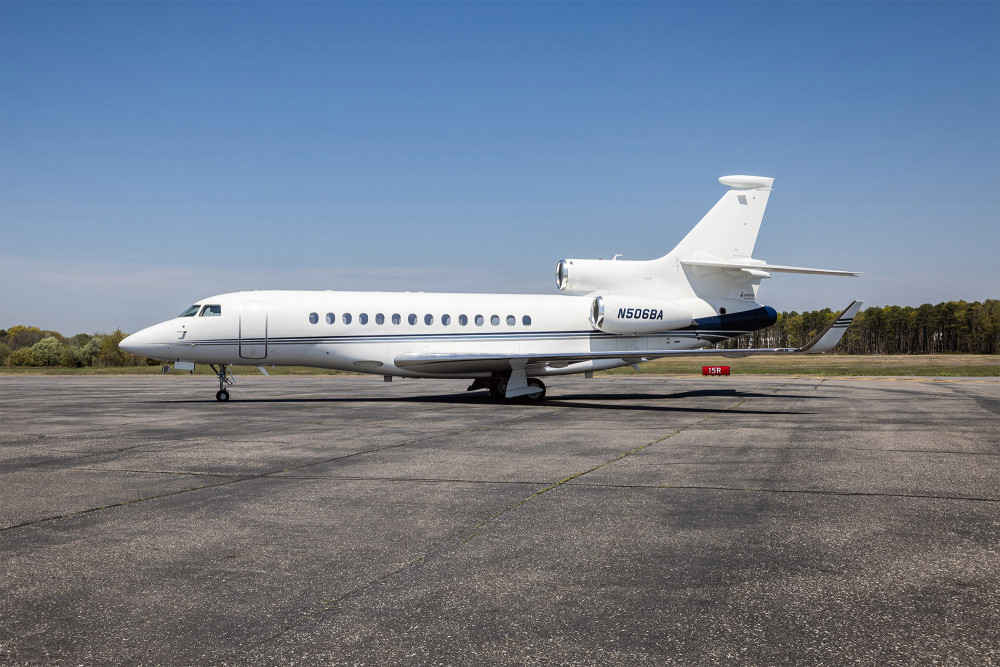

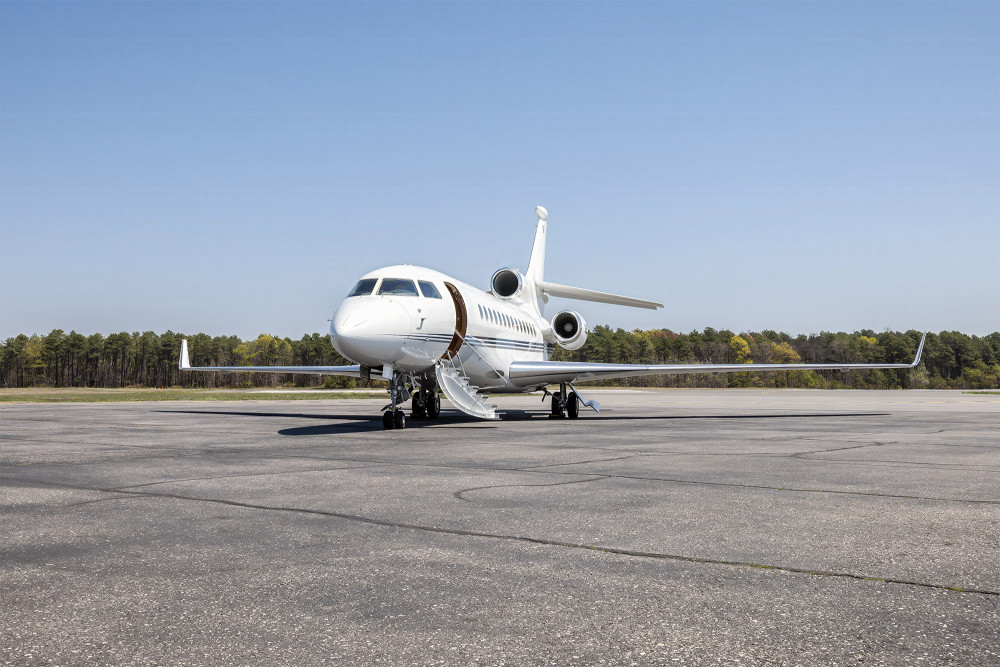

2012 Dassault Falcon 7X
Price: $17,995,000
- Serial Number: 115
- Tail Number: N506BA
- Hours: 5,831
- Cycles: 2,488
• Engines Enrolled on ESP Platinum
• APU Enrolled on MSP Gold
• Gogo AVANCE L5 Internet System
• U.S. Based
• Synthetic Vision
• Currently Operated Part 135
• APU Enrolled on MSP Gold
• Gogo AVANCE L5 Internet System
• U.S. Based
• Synthetic Vision
• Currently Operated Part 135
Airframe
Total Hours:
5,831
Total Cycles:
2,488
DATE OF CONSTRUCTION: August 2010
CofA: May 2012
ENTRY INTO SERVICE: May 2012
LOCATION: Aircraft is Hangared at Long Island MacArthur Airport (ISP) in Islip, NY
CofA: May 2012
ENTRY INTO SERVICE: May 2012
LOCATION: Aircraft is Hangared at Long Island MacArthur Airport (ISP) in Islip, NY
Engines
Pratt & Whitney PW307A
NOTE: Right Engine (#3) PCE-CH0371 removed for repair. Aircraft to be delivered with loaner engine.
NOTE: Right Engine (#3) PCE-CH0371 removed for repair. Aircraft to be delivered with loaner engine.
Engine Program Coverage:
ESP Platinum
Engine 1
Serial Number:
PCE-CH0374
Hours Since New:
5,304
Cycles Since New:
2,223
Engine 2
Serial Number:
PCE-CH0372
Hours Since New:
5,638
Cycles Since New:
2,440
APU
Description:
Honeywell GCTP36-150
APU Program Coverage:
MSP Gold
Serial Number:
P-229
Total Time Since New:
4,272

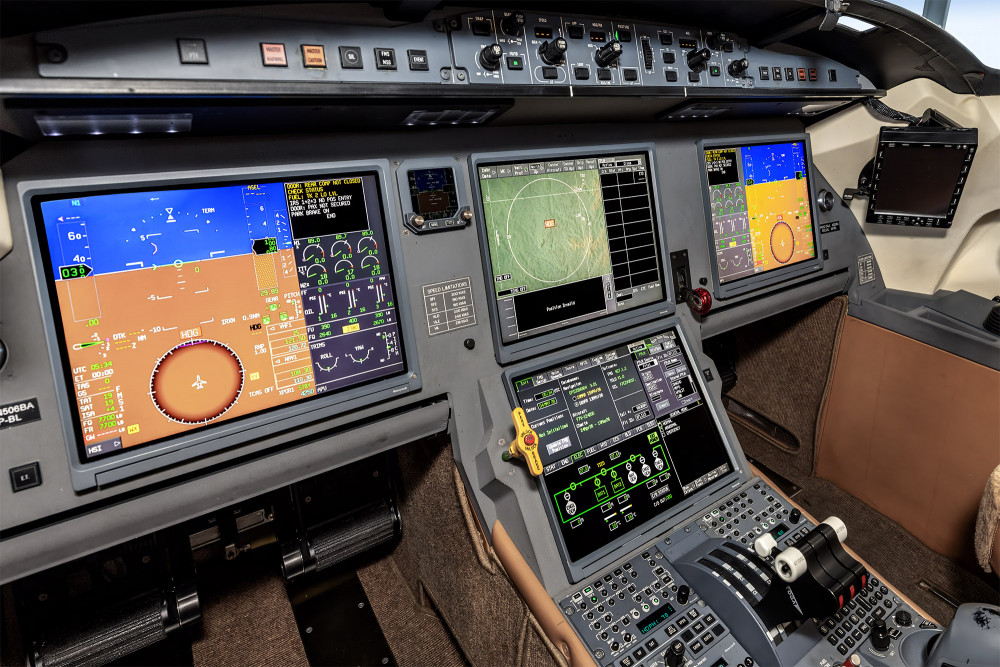

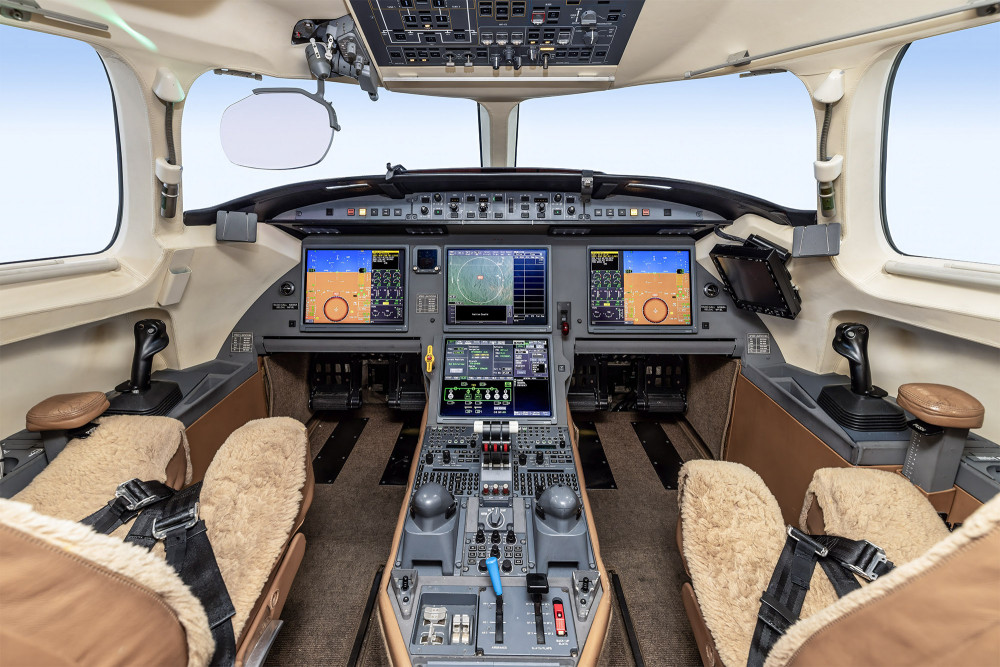

Avionics
COMMUNICATIONS: Dual Honeywell TR-866B w/ 8.33 kHz Spacing
COMMUNICATION: Honeywell TR-866B Third Radio
AUDIO: Triple Honeywell AV-900 Flight Deck Audio
COMMS MANAGEMENT: Honeywell EASy / AFIS / SATAFIS / MILTOP Flight Deck Printer
SATCOM: AFIS/SAT AFIS/MCS-7120 Inmarsat Aero H+/Swift Broadband (Wi-Fi)
VHF NAVIGATION: Dual Honeywell NV-877A VOR / ILS / Marker Receiver
ADF: Dual Honeywell DF-855 ADF receiver
INERTIAL REFERENCE: Triple Honeywell Laseref V Micro Inertial Reference Unit
DISPLAY UNITS: 4- Honeywell DU-1310 Display Units
RADAR: Honeywell Primus 880 Turbulence Detection Radar System
LIGHTNING SENSOR: Honeywell LSS-860 Lightning Sensor
TRANSPONDER: Dual Honeywell XS-858A Mode S Diversity w/ Enhanced Surveillance Capability /
ADS-B OUT / ADS-C
DME: Dual Honeywell DM-855 Distance Measuring Equipment
RADIO ALTIMETER: Honeywell KRA-405B Radar Altimeter
AIR DATA COMPUTER: Dual Honeywell AZ-200 Air Data Computer
AHRS: Dual Honeywell KSG-7200 Altitude Heading Reference System FMS / GPS Dual Honeywell
Flight Management System
GPS SENSOR: Honeywell GPS Sensor (SBAS Capable)
DATALINK: Honeywell CPDLC FANS 1/A (Future Air Navigation System)
CVR: Honeywell SSCVR Cockpit Voice Recorder (2 Hour) RIPS Compliant
FDR: Honeywell SSFDR Flight Data Recorder
TCAS: L3 Communications ACSS TCAS 3000 Traffic Alert and Collision Avoidance System (7.1)
EGPWS: Honeywell EASy EGPMW-100 Enhanced Ground Proximity Warning System w/ Windshear
ELT: Honeywell Rescue 406AF Emergency Locator Transmitter
H.U.D: Honeywell HGS-5860 Heads-Up Display (CAT 1 & II Monitoring)
TELEPHONE: Iridium AirCell Axxess II Phone
HF: Dual Honeywell HF-1050 Radios w/ SELCAL
COMMUNICATION: Honeywell TR-866B Third Radio
AUDIO: Triple Honeywell AV-900 Flight Deck Audio
COMMS MANAGEMENT: Honeywell EASy / AFIS / SATAFIS / MILTOP Flight Deck Printer
SATCOM: AFIS/SAT AFIS/MCS-7120 Inmarsat Aero H+/Swift Broadband (Wi-Fi)
VHF NAVIGATION: Dual Honeywell NV-877A VOR / ILS / Marker Receiver
ADF: Dual Honeywell DF-855 ADF receiver
INERTIAL REFERENCE: Triple Honeywell Laseref V Micro Inertial Reference Unit
DISPLAY UNITS: 4- Honeywell DU-1310 Display Units
RADAR: Honeywell Primus 880 Turbulence Detection Radar System
LIGHTNING SENSOR: Honeywell LSS-860 Lightning Sensor
TRANSPONDER: Dual Honeywell XS-858A Mode S Diversity w/ Enhanced Surveillance Capability /
ADS-B OUT / ADS-C
DME: Dual Honeywell DM-855 Distance Measuring Equipment
RADIO ALTIMETER: Honeywell KRA-405B Radar Altimeter
AIR DATA COMPUTER: Dual Honeywell AZ-200 Air Data Computer
AHRS: Dual Honeywell KSG-7200 Altitude Heading Reference System FMS / GPS Dual Honeywell
Flight Management System
GPS SENSOR: Honeywell GPS Sensor (SBAS Capable)
DATALINK: Honeywell CPDLC FANS 1/A (Future Air Navigation System)
CVR: Honeywell SSCVR Cockpit Voice Recorder (2 Hour) RIPS Compliant
FDR: Honeywell SSFDR Flight Data Recorder
TCAS: L3 Communications ACSS TCAS 3000 Traffic Alert and Collision Avoidance System (7.1)
EGPWS: Honeywell EASy EGPMW-100 Enhanced Ground Proximity Warning System w/ Windshear
ELT: Honeywell Rescue 406AF Emergency Locator Transmitter
H.U.D: Honeywell HGS-5860 Heads-Up Display (CAT 1 & II Monitoring)
TELEPHONE: Iridium AirCell Axxess II Phone
HF: Dual Honeywell HF-1050 Radios w/ SELCAL
Inspections
Additional Equipment/Features
• Honeywell EASy Autothrottle
• Honeywell Central Maintenance Computer
• Meggitt MK2 Secondary Flight Display
• KGS Electronics SB200 (x) 230 VAC 50 HZ 2000VA Inverter
• Avionics Master System
• Cabin and Galley Masters
• Main Batteries Charging w/ GPU
• Mini Load Master System
• Cabin Temp Monitoring System
• (2) Vertical Fin Teleflex Recognition Lights
• CMC-CMA-1100 Pilot View Electronic Flight Bags (EFB)
• Uplink Weather Capability
• CTS Quick Access Recorder
• Pratt & Whitney Flight Data Acquisition Storage & Transmission (FAST)
• Falcon Broadcast
• Brake/Wheel Well Heat
• Left Hand (LH) Crew Closet
• Honeywell Central Maintenance Computer
• Meggitt MK2 Secondary Flight Display
• KGS Electronics SB200 (x) 230 VAC 50 HZ 2000VA Inverter
• Avionics Master System
• Cabin and Galley Masters
• Main Batteries Charging w/ GPU
• Mini Load Master System
• Cabin Temp Monitoring System
• (2) Vertical Fin Teleflex Recognition Lights
• CMC-CMA-1100 Pilot View Electronic Flight Bags (EFB)
• Uplink Weather Capability
• CTS Quick Access Recorder
• Pratt & Whitney Flight Data Acquisition Storage & Transmission (FAST)
• Falcon Broadcast
• Brake/Wheel Well Heat
• Left Hand (LH) Crew Closet
Interior
Number Of Passengers:
14
Interior Last Refurbished:
2012
New May 2012 @ Dassault – Little Rock, AR

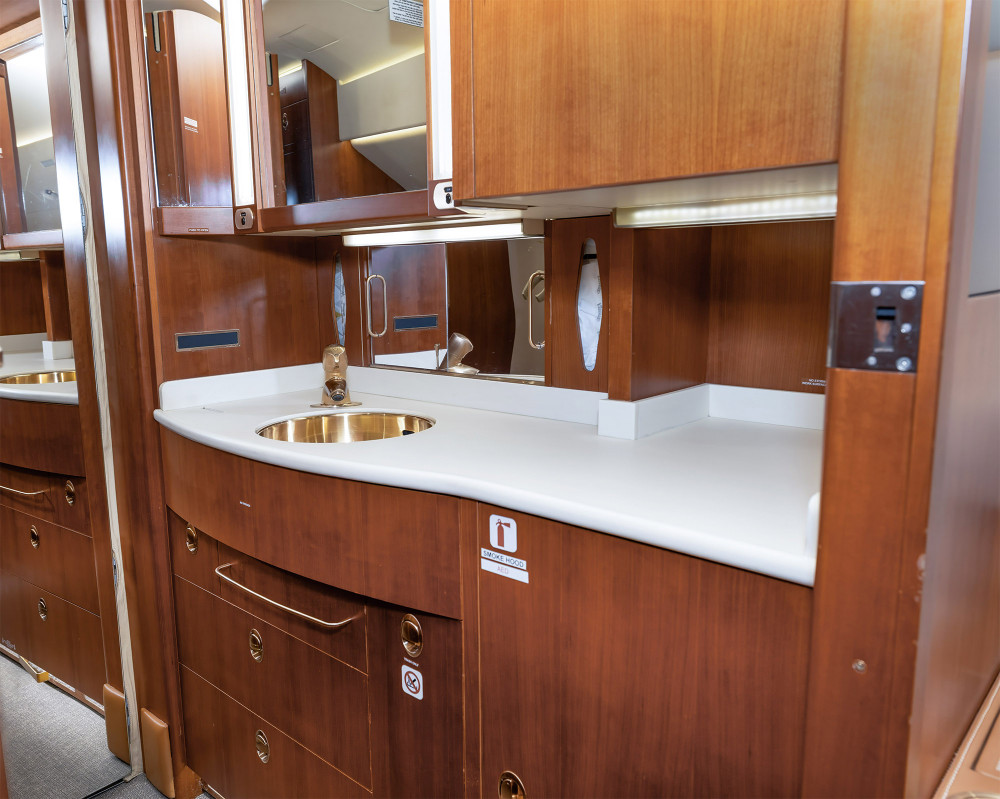

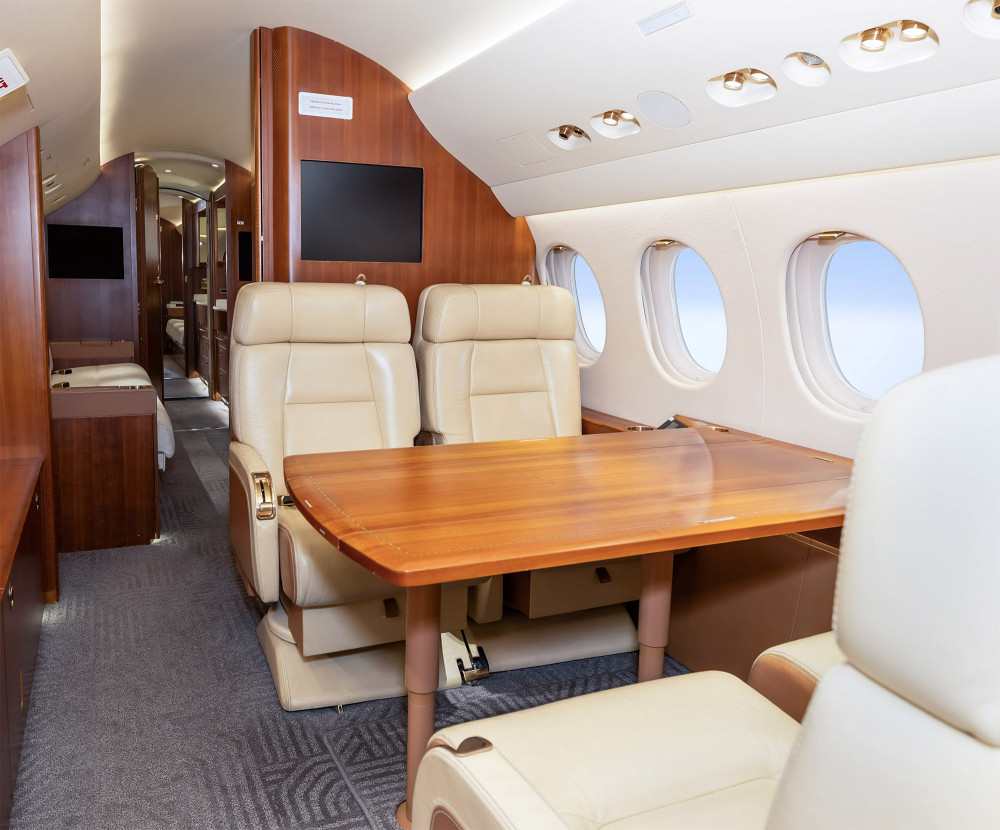

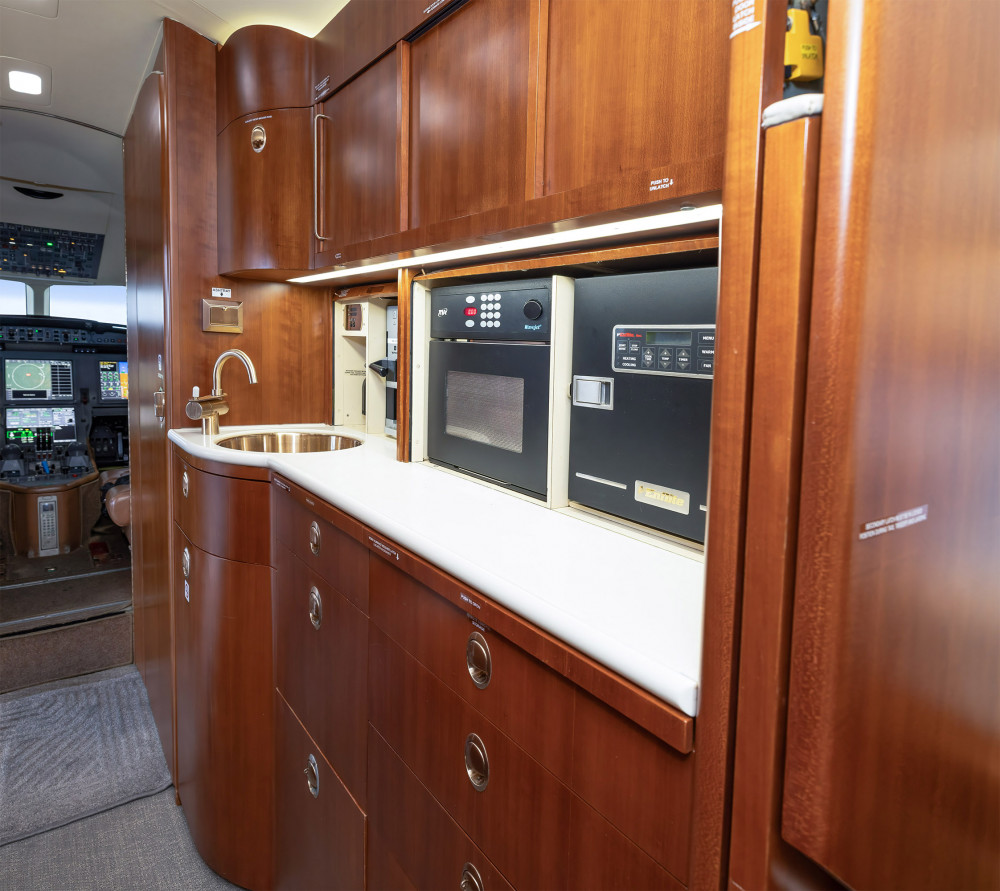

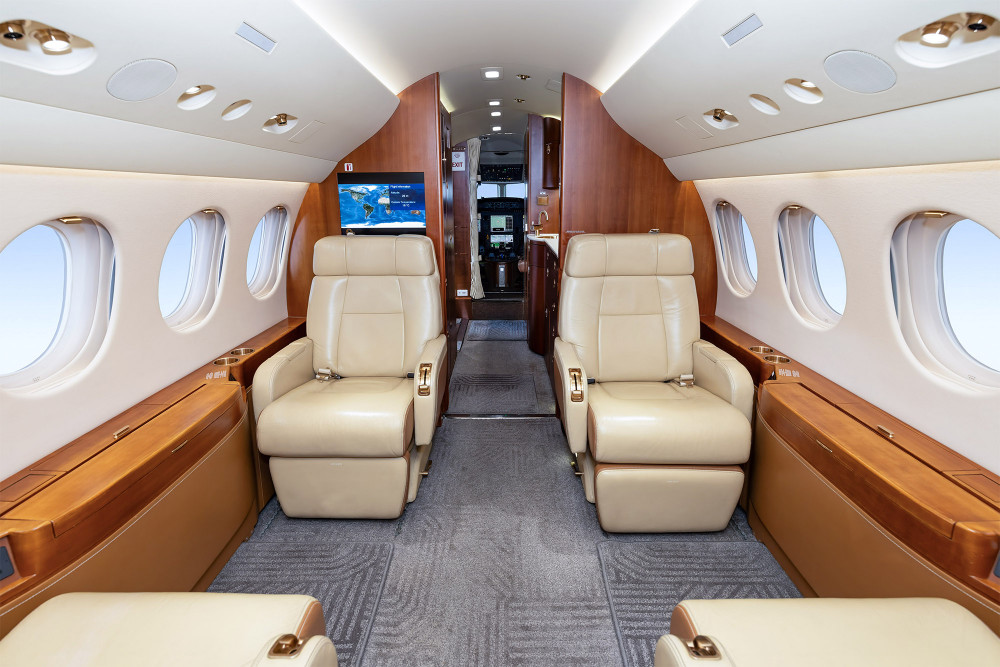

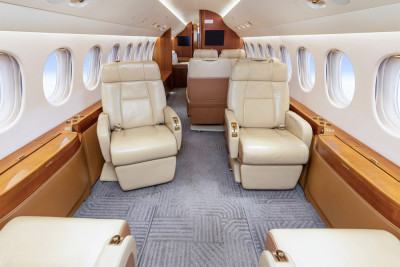

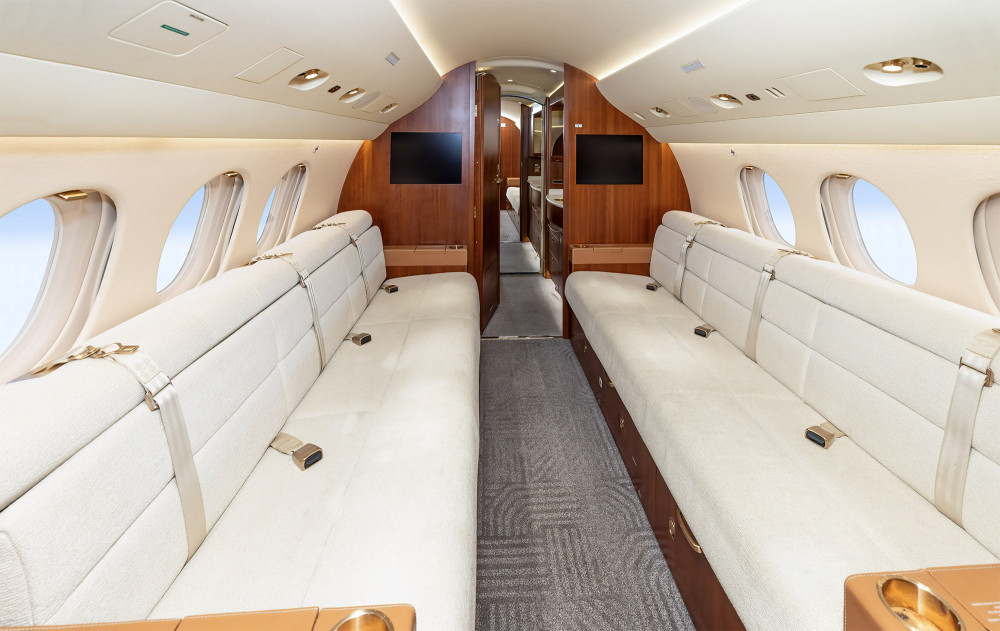

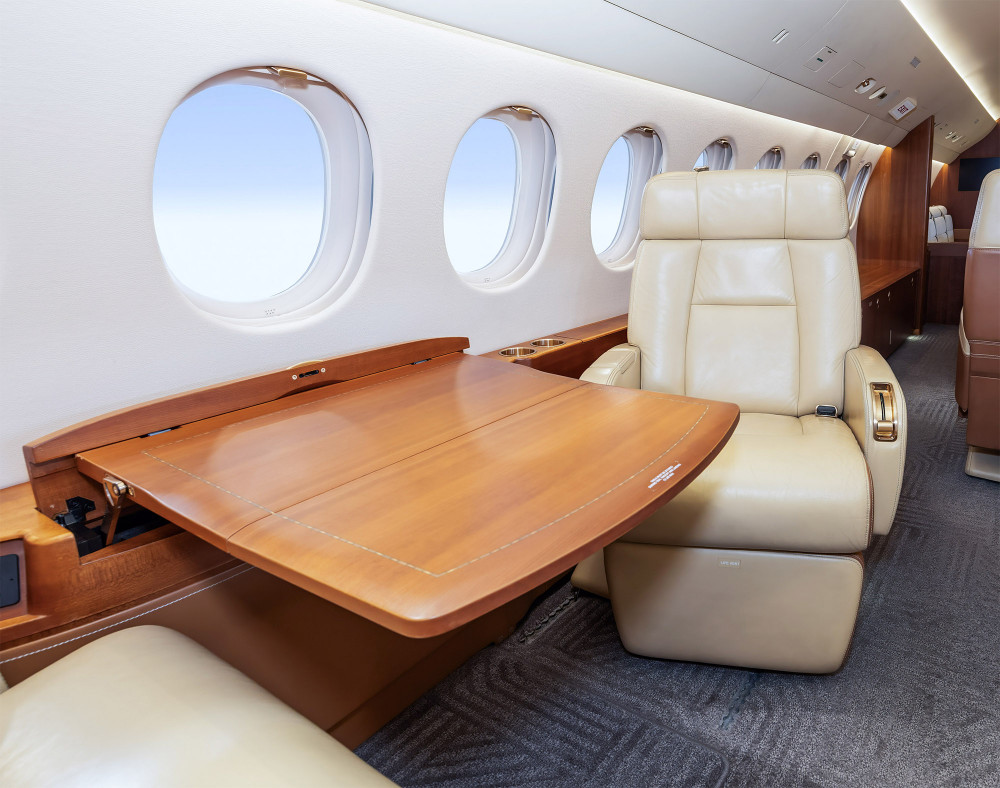

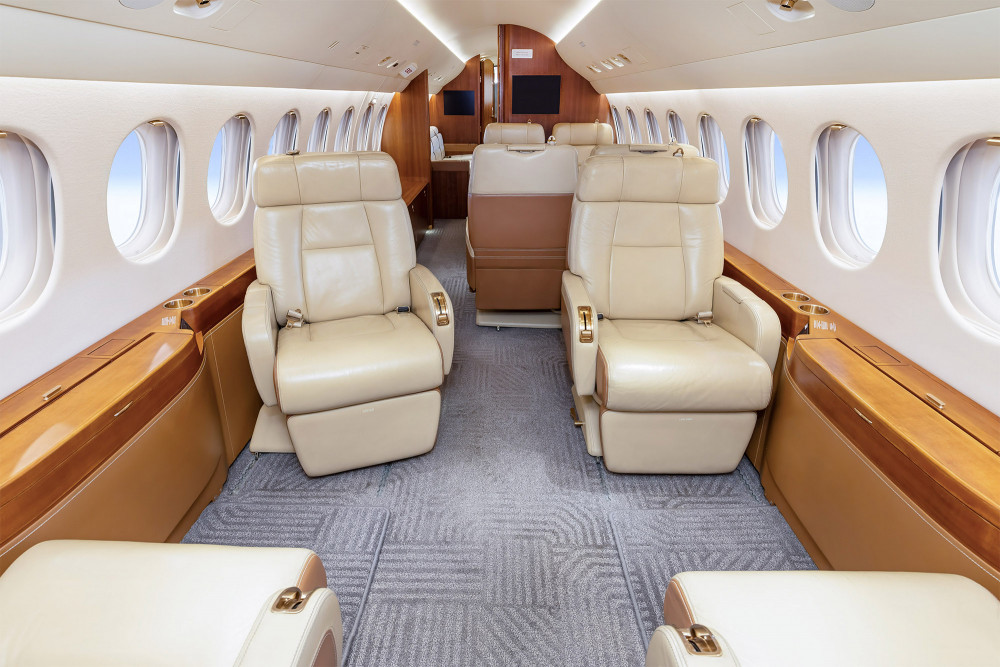

Fourteen (14) passenger configuration includes Forward Cabin Double Club, Mid Cabin Conference Group opposite a Multi-Purpose Storage Credenza, Followed by Two (2) Three (3) Place Aft Divans. Fully Enclosed Private Aft Passenger Lavatory. Right-Hand 50 Inch Galley/Bar Cabinet, 50 Inch Galley Upper Section with a Single, Extra Wide, High Temperature Oven w/ Digital Controller located on the door, TIA Microwave Oven, Manual Fill Nespresso Machine, Storage Racks, Two Thermal Carafes on a pull-out platform, and Storage for standard Glassware. Lower Section includes a Sink, Faucet w/ Drain Rod, Wine Storage Rack, Trash Drawer.
Fourteen (14) passenger configuration includes Forward Cabin Double Club, Mid Cabin Conference Group opposite a Multi-Purpose Storage Credenza, Followed by Two (2) Three (3) Place Aft Divans. Fully Enclosed Private Aft Passenger Lavatory. Right-Hand 50 Inch Galley/Bar Cabinet, 50 Inch Galley Upper Section with a Single, Extra Wide, High Temperature Oven w/ Digital Controller located on the door, TIA Microwave Oven, Manual Fill Nespresso Machine, Storage Racks, Two Thermal Carafes on a pull-out platform, and Storage for standard Glassware. Lower Section includes a Sink, Faucet w/ Drain Rod, Wine Storage Rack, Trash Drawer.

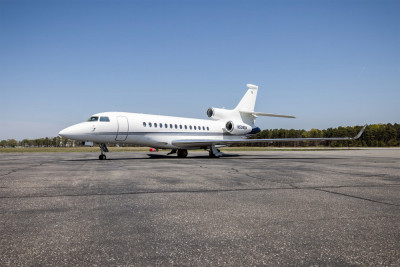

Exterior
Base Paint Colors:
Matterhorn White
Stripe Colors:
Silver Pearl, Arista Blue, and Blue Pearl
Last Painted:
2019
Strip & New Paint August 2019 @ Dassault – Wilmington, DE
Weights
Gross Weight:
70,200.00
Max Takeoff Weight:
70,000.00
Max Landing Weight:
62,400.00
Max Zero Fuel Weight:
41,000.00
Empty Weight:
35,000.00
