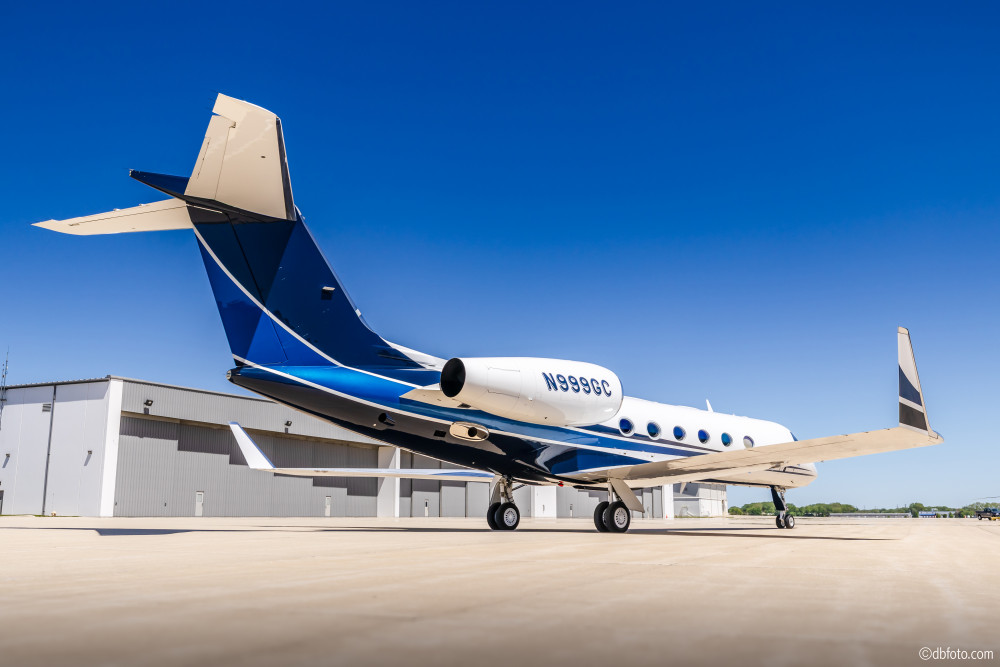

2009 Gulfstream G450
Price: Make Offer
- Serial Number: G450-4166
- Tail Number: N999GC (Owner to retain current registration)
- Hours: 3,362
- Cycles: 1,268
Engines Enrolled on Rolls Royce Corporate Care
APU enrolled on Honeywell MSP
MSP-Avionics and MSP-Mechanical
FANS 1A / CPDLC / ADS-B Out
HUD with EVS
Synthetic Vision
EVAS
Jetwave Connex KA Band Internet
FWD Galley
G550 refrigerator in FWD Galley
Espresso machine
MQAR - Micro quick access recorder
APU enrolled on Honeywell MSP
MSP-Avionics and MSP-Mechanical
FANS 1A / CPDLC / ADS-B Out
HUD with EVS
Synthetic Vision
EVAS
Jetwave Connex KA Band Internet
FWD Galley
G550 refrigerator in FWD Galley
Espresso machine
MQAR - Micro quick access recorder
Airframe
Total Hours:
3,362
Total Cycles:
1,268
Program Coverage:
Other
MSP-Avionics and MSP-Mechanical
Engines
10 Year Mid Life - due 10/2029
Engine Program Coverage:
Rolls Royce Corporate Care (RRCC)
Engine 1
Serial Number:
85337
Hours Since New:
3,362
Cycles Since New:
1,268
Engine 2
Serial Number:
85336
Hours Since New:
3,362
Cycles Since New:
1,268
APU
Description:
Honeywell GTCP36-150 (GIV)
APU Program Coverage:
MSP
Serial Number:
P-282
Total Time Since New:
3,651
Total Cycles Since New:
3,465
Avionics
ADS-B Out Equipped:Yes
FANS Equipped:Yes
WAAS Equipped:Yes
LPV Equipped:Yes
SVT Equipped:Yes
CPDLC Equipped:Yes
HUD Equipped:Yes

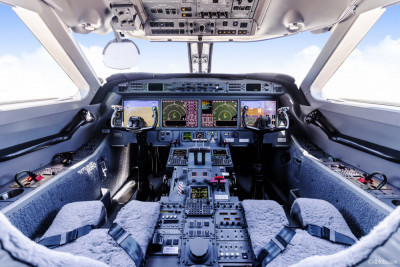

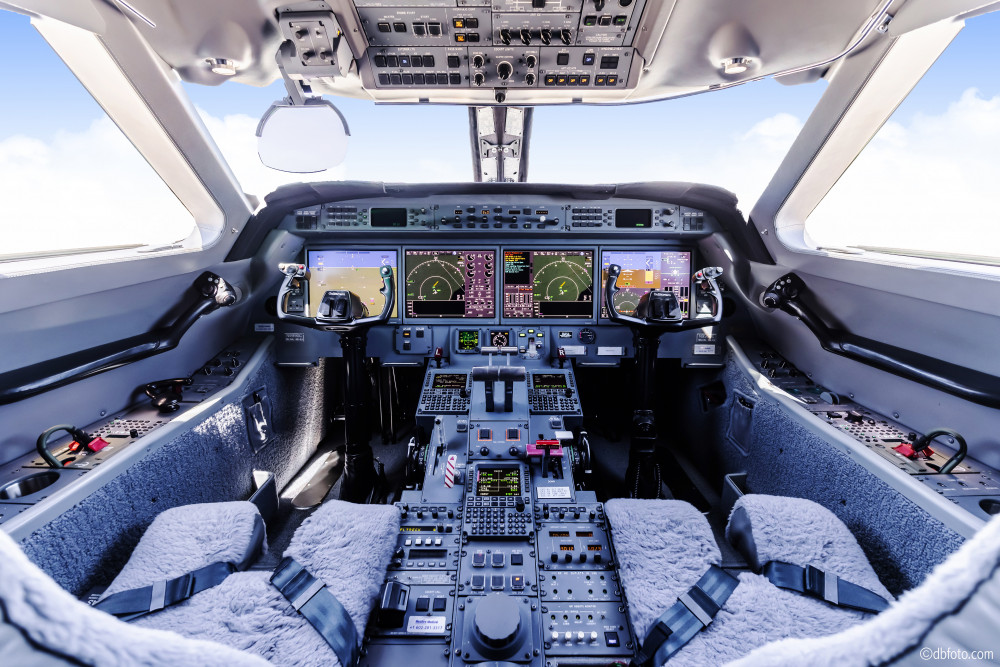

Gulfstream PlaneView Avionics Package
Communication Radios: Dual Honeywell MRC-855A; Honeywell MT-860
CVR: L3
EFIS: Honeywell DU-1310 4-tube
FDR: L3, 88-parameter ASC 001C
FMS: Triple Honeywell
GPS: Dual 24-channel
Heads-Up Display
EVS - Enhanced Vision System
EVAS - Enhanced Vision Assurance System
Synthetic Vision – (SV/PFD)
FANS 1/A+ | CPDLC
WAAS w/ LPV Approaches
HF Radio: Dual
IRS: Triple Laseref V IRU
Navigation Radios: Dual Honeywell MRC-855A; Honeywell MT-860
RAAS - Runway Awareness Advisory System
Radar Altimeter: Dual Honeywell RT-300
SATCOM over iridium
Stormscope: Honeywell LSZ-860
TAWS: EGPWS w/windshear
TCAS: L3 TCAS-2000 w/change 7.1
Transponder: Honeywell MRC-855A Mode S diversity
XM Weather
Weather Radar: Honeywell Primus 880 w/dual WC-884 controllers
Communication Radios: Dual Honeywell MRC-855A; Honeywell MT-860
CVR: L3
EFIS: Honeywell DU-1310 4-tube
FDR: L3, 88-parameter ASC 001C
FMS: Triple Honeywell
GPS: Dual 24-channel
Heads-Up Display
EVS - Enhanced Vision System
EVAS - Enhanced Vision Assurance System
Synthetic Vision – (SV/PFD)
FANS 1/A+ | CPDLC
WAAS w/ LPV Approaches
HF Radio: Dual
IRS: Triple Laseref V IRU
Navigation Radios: Dual Honeywell MRC-855A; Honeywell MT-860
RAAS - Runway Awareness Advisory System
Radar Altimeter: Dual Honeywell RT-300
SATCOM over iridium
Stormscope: Honeywell LSZ-860
TAWS: EGPWS w/windshear
TCAS: L3 TCAS-2000 w/change 7.1
Transponder: Honeywell MRC-855A Mode S diversity
XM Weather
Weather Radar: Honeywell Primus 880 w/dual WC-884 controllers
Navigation and Compliance
ASC 001C Digital FDR, DFDR 88 parameter
ASC 007E Maximum Landing Gross Weight – 58,500 Pounds
ASC 037B Synthetic Vision – Primary Flight Display (SV/PFD) Installation
ASC 040A Runway Awareness Advisory System (RAAS) Installation
ASC 046 Micro Quick Access Recorder (MQAR) Installation
ASC 059D Enhanced Navigation
Future Air Navigation System (FANS 1/A+) CPDLC
Wide Area Augmentation System (WAAS) w/ LPV Approaches
Circling Approaches
Temperature Compensated VNAV
Peaks Display
Electronic Terminal Charts (Certified Paperless Flight Deck)
ASC 060A XM Weather
ASC 066 CMF SATCOM DIRECT
ASC 076 Engine Fuel and Control T5.2 Software Upgrade
ASC 077 TCAS 7.1 Installation
ASC 099C PlaneView Avionics Enhancement
ASC 102 LED Navigation
ASC 106 8.8kHz Underwater Acoustic Beacon (UAB) Installation
ST04317NY Honeywell Jet Connex KA High Speed Broad Band
ST03027AT-D BBML
ST04441AT Aviation Clean Air Ionization System
ASC 007E Maximum Landing Gross Weight – 58,500 Pounds
ASC 037B Synthetic Vision – Primary Flight Display (SV/PFD) Installation
ASC 040A Runway Awareness Advisory System (RAAS) Installation
ASC 046 Micro Quick Access Recorder (MQAR) Installation
ASC 059D Enhanced Navigation
Future Air Navigation System (FANS 1/A+) CPDLC
Wide Area Augmentation System (WAAS) w/ LPV Approaches
Circling Approaches
Temperature Compensated VNAV
Peaks Display
Electronic Terminal Charts (Certified Paperless Flight Deck)
ASC 060A XM Weather
ASC 066 CMF SATCOM DIRECT
ASC 076 Engine Fuel and Control T5.2 Software Upgrade
ASC 077 TCAS 7.1 Installation
ASC 099C PlaneView Avionics Enhancement
ASC 102 LED Navigation
ASC 106 8.8kHz Underwater Acoustic Beacon (UAB) Installation
ST04317NY Honeywell Jet Connex KA High Speed Broad Band
ST03027AT-D BBML
ST04441AT Aviation Clean Air Ionization System
Inspections
Inspection Type
Performed
Next Due
12 Month Insp.
Next Due:
March 2027
24 Month Insp.
Next Due:
May 2027
48 Month Insp.
Next Due:
March 2029
96 Month Insp.
Next Due:
May 2033
144 Month Insp.
Next Due:
March 2027
192 Month Insp.
Next Due:
May 2037
Additional Equipment/Features
FANS 1/A / CPDLC
ADS-B Out
Heads-Up Display
Enhanced Vision System
Synthetic Vision
EVAS Enhanced Vision Assurance System
Triple Flight Management System
Triple Inertial Reference System
XM Weather Radar
88 Parameter. FDR
BBML
Jetwave Connex KA Broad Band Internet
FWD Galley
G550 refrigerator in FWD Galley
Espresso machine
MQAR - Micro quick access recorder
ADS-B Out
Heads-Up Display
Enhanced Vision System
Synthetic Vision
EVAS Enhanced Vision Assurance System
Triple Flight Management System
Triple Inertial Reference System
XM Weather Radar
88 Parameter. FDR
BBML
Jetwave Connex KA Broad Band Internet
FWD Galley
G550 refrigerator in FWD Galley
Espresso machine
MQAR - Micro quick access recorder
Interior
Number Of Passengers:
14
Forward Galley: Yes
Forward Lavatory: Yes
Aft Lavatory: Yes
2018 Soft Goods on seats
Zones - Three
Passengers - 14

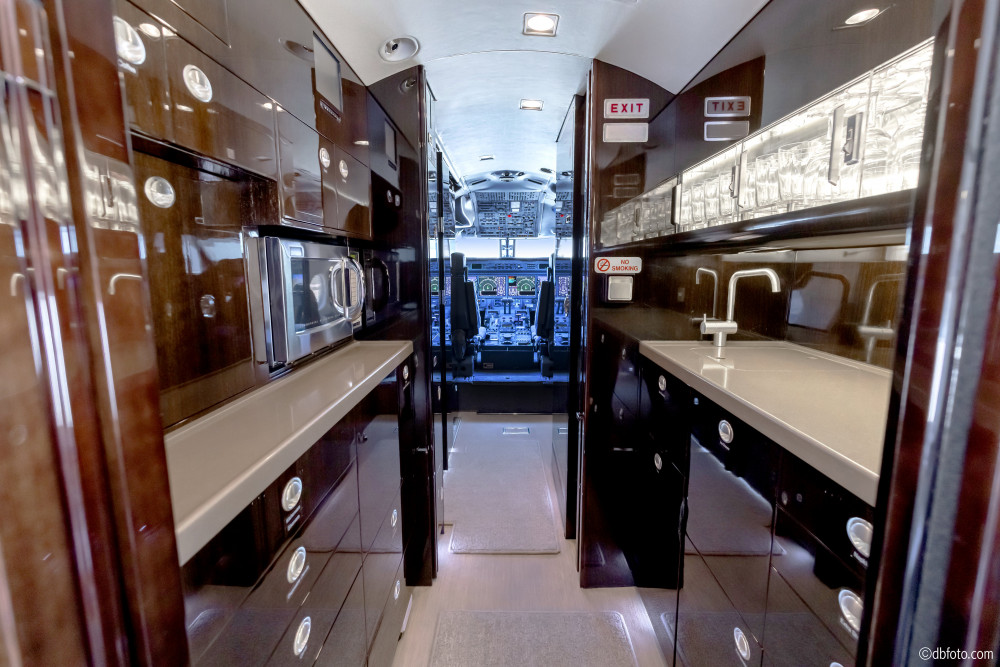

Galley - FWD

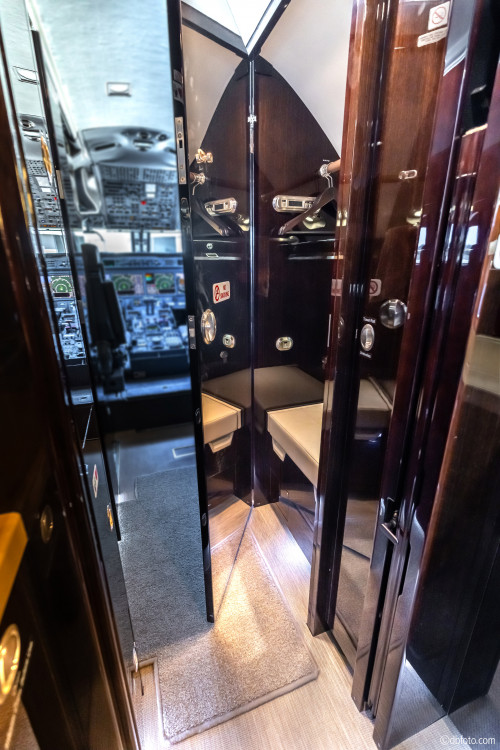

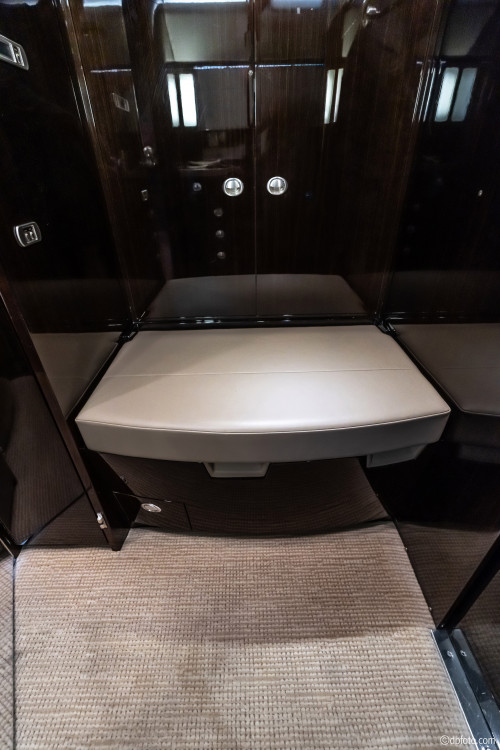

Forward - Crew Lavatory + Jumpseat

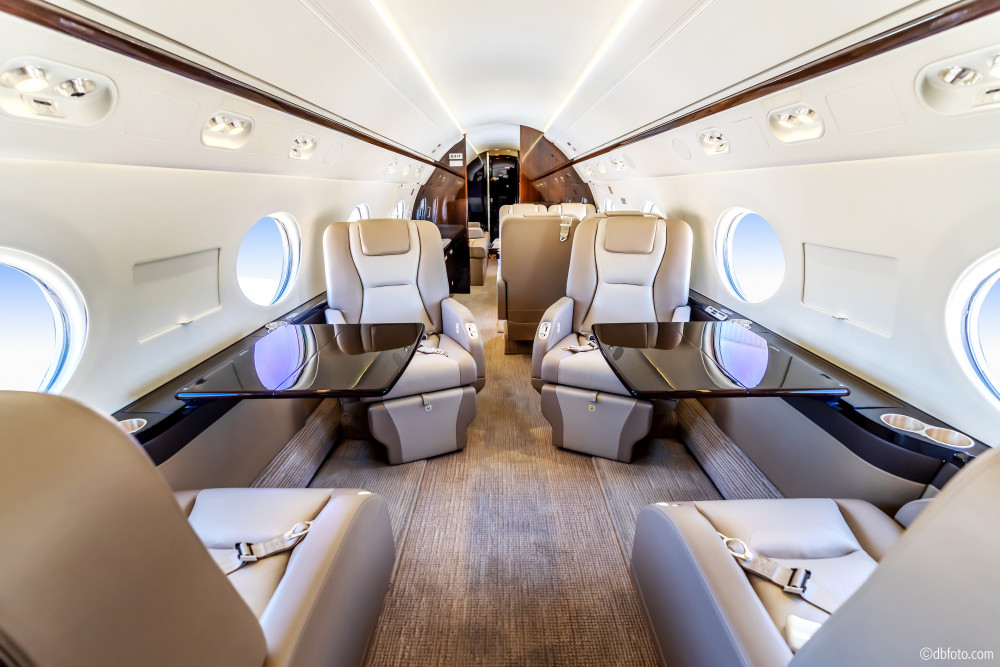

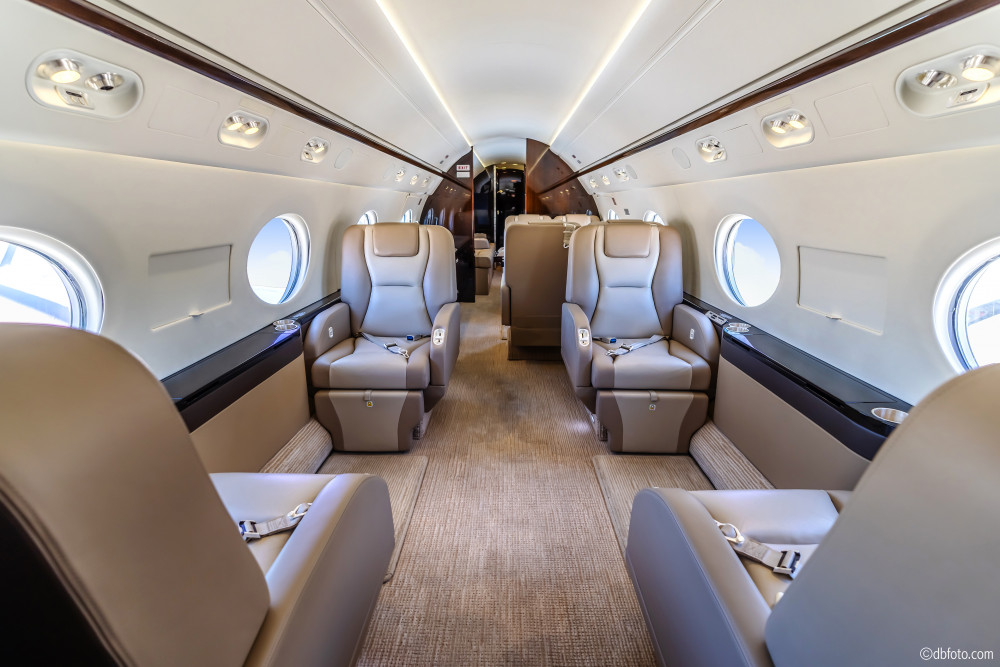

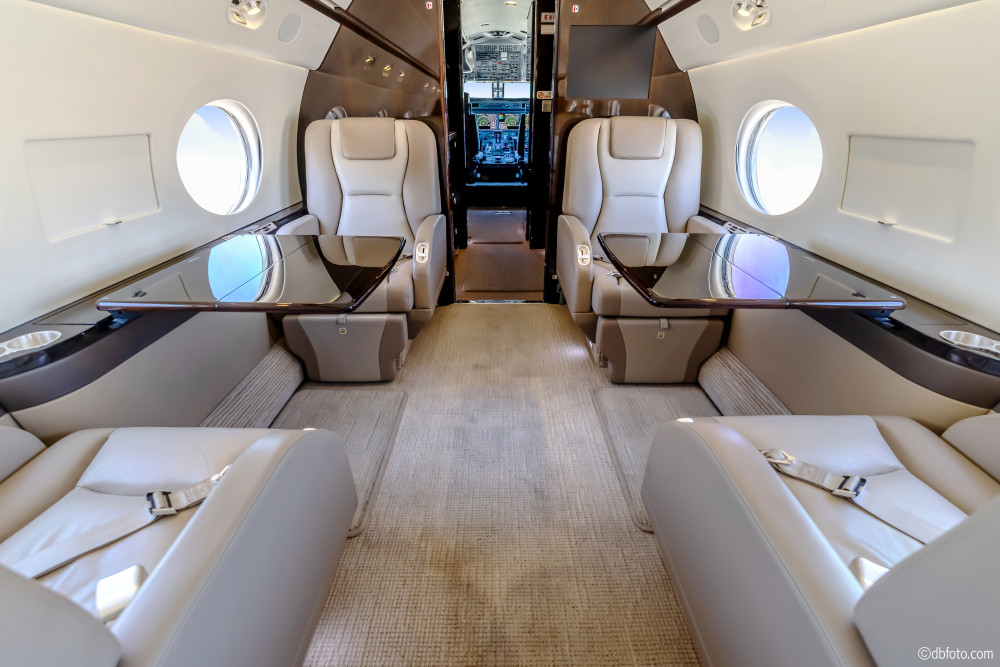

FWD Cabin - 4-place club

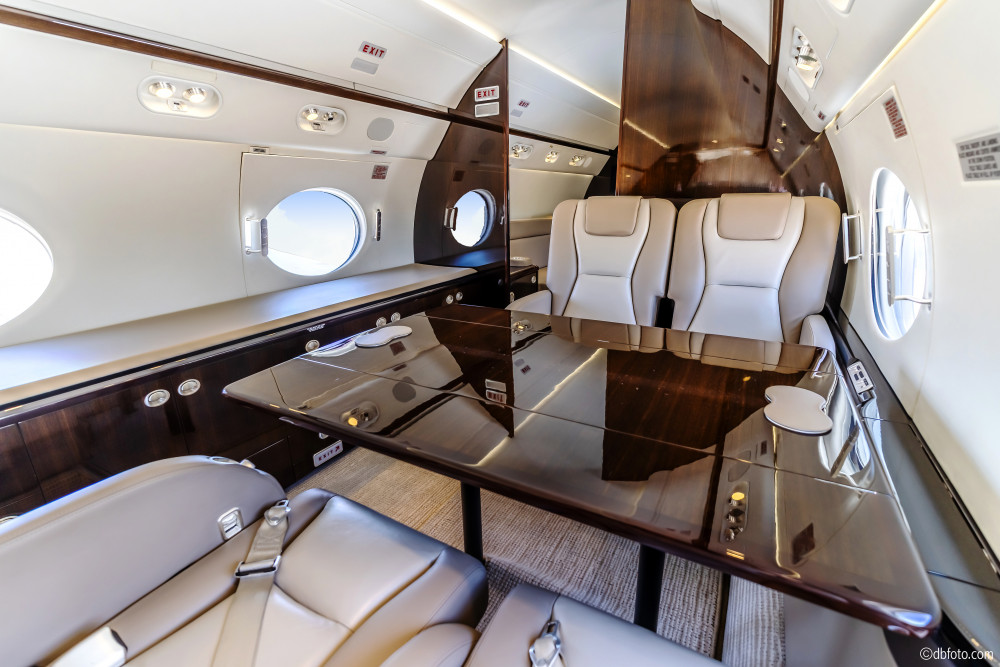

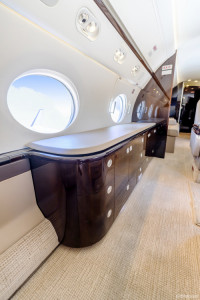

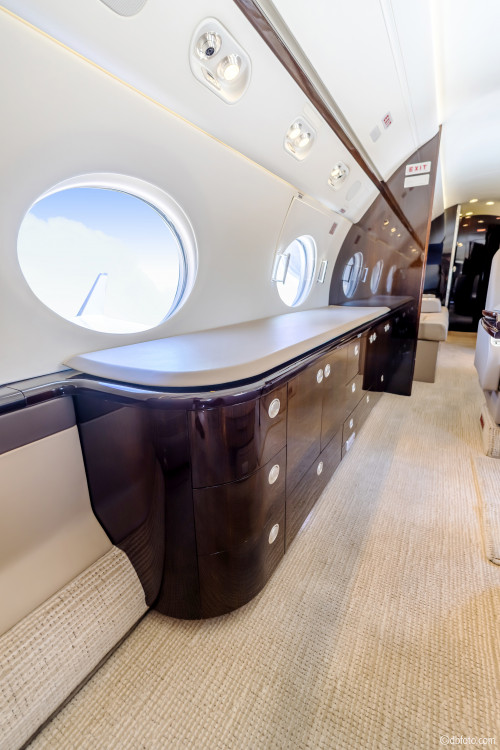

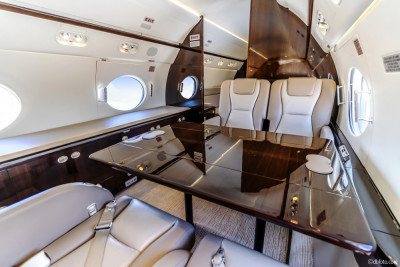

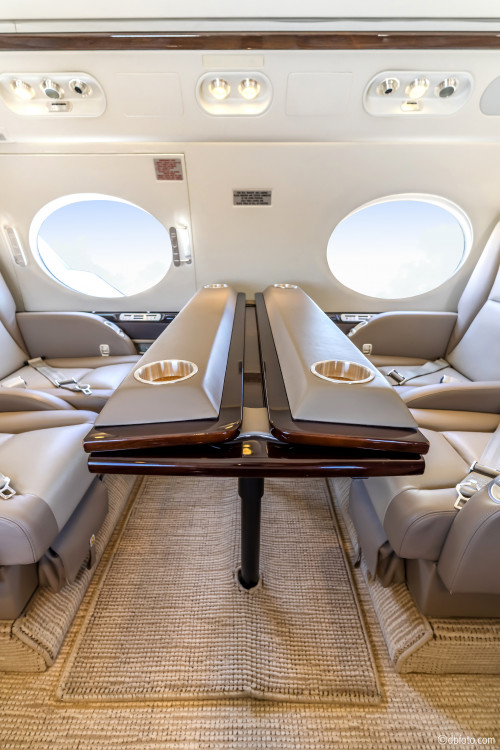

Mid-Cabin - Conference group opposite credenza

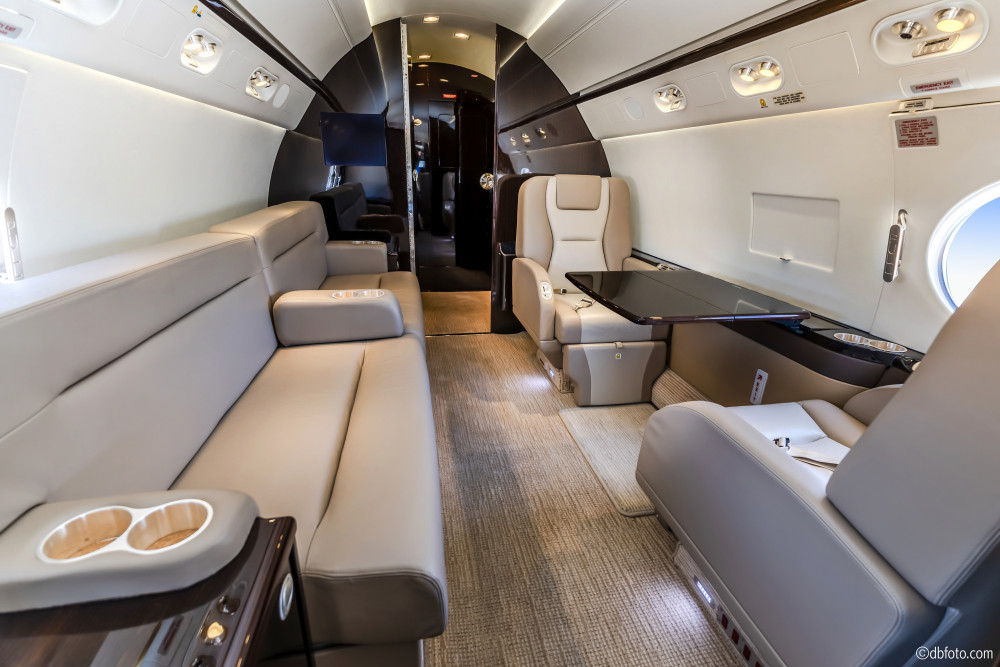

AFT Cabin - 2-place club opposite 4-place divan

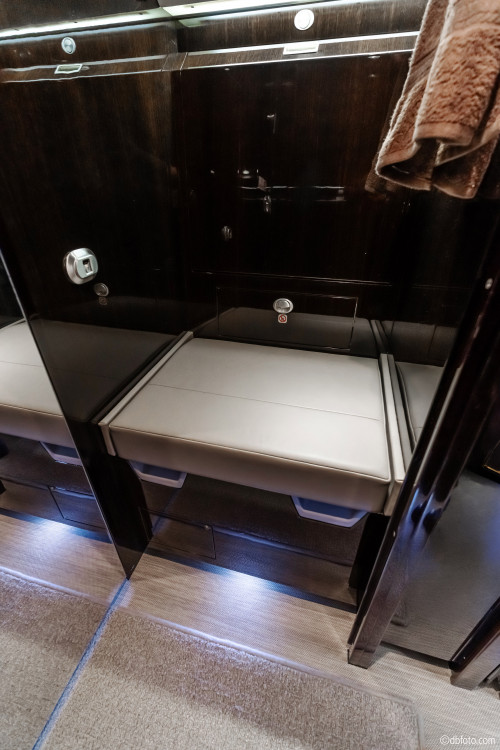

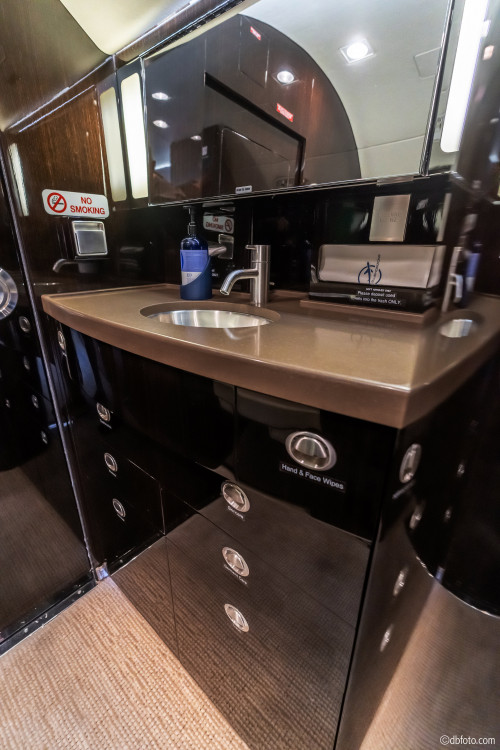

AFT - Full Lavatory

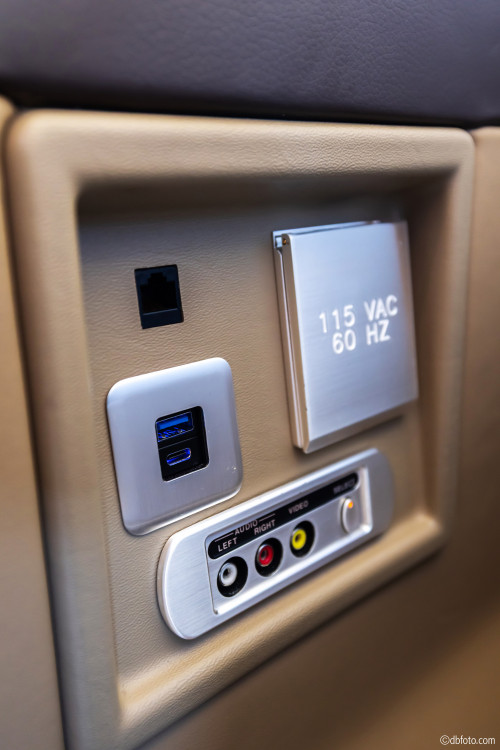

USB power outlets were installed at every seat in 2019
Zones - Three
Passengers - 14
Galley - FWD
Forward - Crew Lavatory + Jumpseat
FWD Cabin - 4-place club
Mid-Cabin - Conference group opposite credenza
AFT Cabin - 2-place club opposite 4-place divan
AFT - Full Lavatory
USB power outlets were installed at every seat in 2019

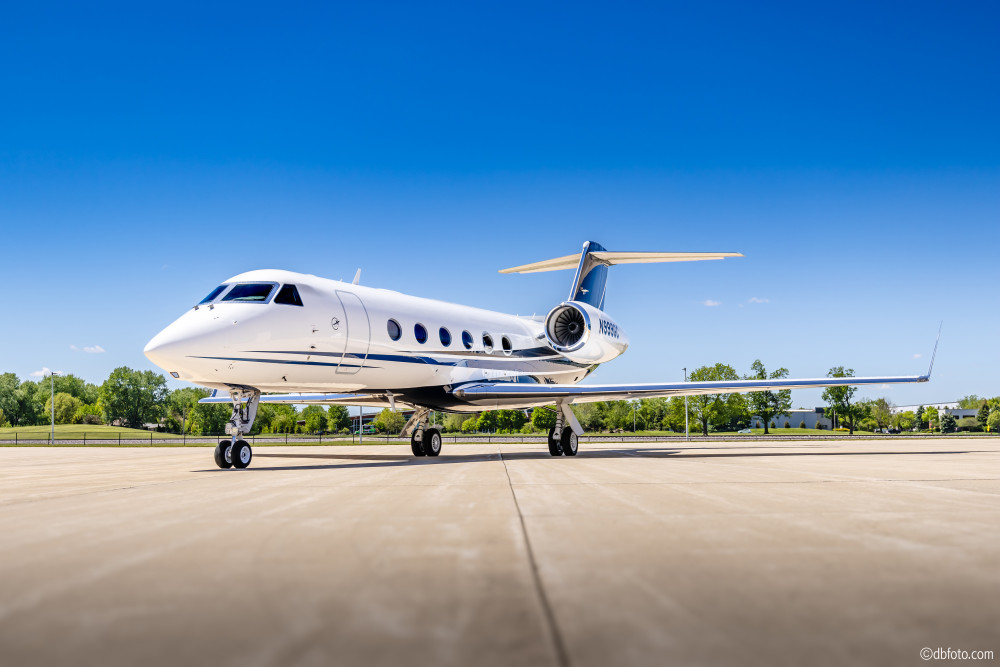

Exterior
Last Painted:
2019

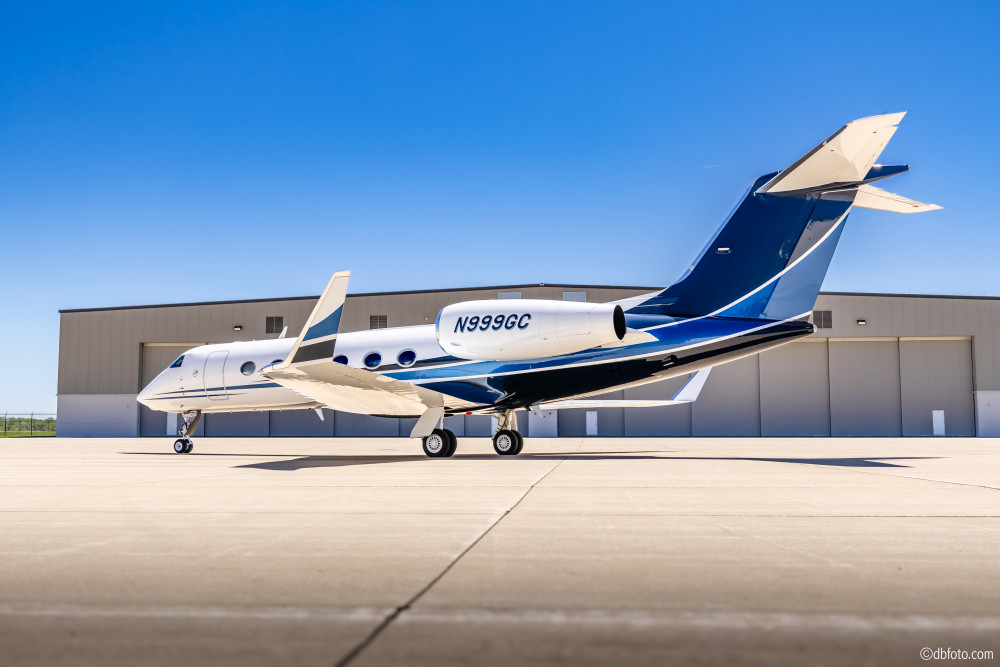

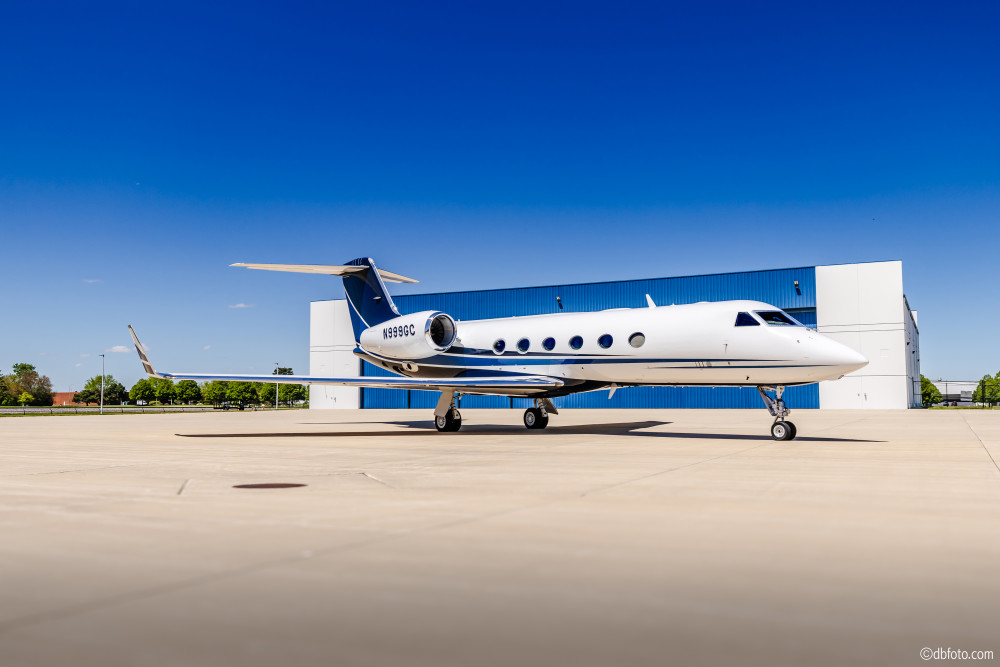

2019 Paint

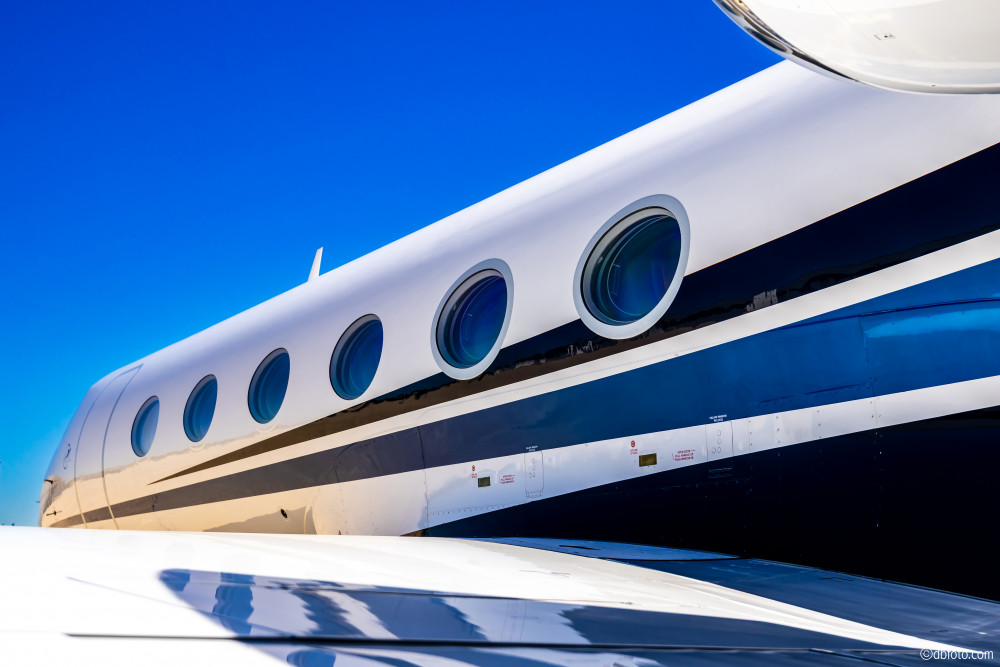

Overall white and dark blue with light blue accents
Overall white and dark blue with light blue accents
