1998 Gulfstream G-V
Price: Make Offer
- Serial Number: GV-536
- Tail Number: N1111P
- Hours: 9,254
- Cycles: 3,907
Honeywell DU-885 PlaneDeck upgrade
Engines Enrolled on Rolls Royce Corporate Care
WAAS and LPV Compliant
FANS 1/A+
Enhanced Soundproofing upgrade
Starlink Global Highspeed Wifi
Bespoke BorromeodeSilva designed interior
Bespoke BorromeodeSilva designed exterior
Engines Enrolled on Rolls Royce Corporate Care
WAAS and LPV Compliant
FANS 1/A+
Enhanced Soundproofing upgrade
Starlink Global Highspeed Wifi
Bespoke BorromeodeSilva designed interior
Bespoke BorromeodeSilva designed exterior
Airframe
Total Hours:
9,254
Total Cycles:
3,907
Maintenance Tracking:
CMP
Airframe Certification:
FAR Part 135
Engines
Rolls Royce BR700-710A1-10
Engine Program Coverage:
Rolls Royce Corporate Care (RRCC)
Engine 1
Serial Number:
11201
Hours Since New:
8,797
Cycles Since New:
3,725
Engine 2
Serial Number:
11202
Hours Since New:
8,801
Cycles Since New:
3,724
APU
Description:
Honeywell RE220-GV
Serial Number:
P-137
Total Time Since New:
6,297
Avionics
ADS-B Out Equipped:Yes
FANS Equipped:Yes
WAAS Equipped:Yes
LPV Equipped:Yes
DU-885 PlaneDeck upgrade
FANS 1/A+
Dual Honeywell SPZ-8500 AFCS
Honeywell SPZ-8500 FCS EFIS
Honeywell / GEC Marconi Heads-Up Display (HUD) w/ Enhanced Vision System (EVS)
2 Collins VHF-422D VHF Comm Transceivers w/ 8.33 spacing
3 Collins VIR-432 VHF NAV Receivers
3 Collins RTU-4280
2 Collins ADF-462 ADFs
2 Collins DME-422 DMEs
2 Collins TDR-94D Mode S Transponders w/ ADS-B Out v1 (DO-260A)
3 Honeywell NZ-2000 FMS (IAC) w/ 6.1 Software
2 Honeywell HG2021GD02 GPS Sensors (SBAS / WAAS Certified)
3 Honeywell LaserRef Ill IRS
1 Honeywell Mark V EGPWS w/ RAAS & Windshear Warning System
2 Honeywell RT-300 Radio Altimeters
1 Honeywell Primus 880 Weather Radar
1 Honeywell DL 950 Data loader
3 Honeywell AZ-840 Micro Air Data Computers
1 Artex 406 MHz ELT
2 Collins RM-855 Radio Management Units w/ Color CDUs
2 Collins HF-9034 HF Communication w/ SELCAL
1 Honeywell AFIS/SAT AFIS
Teledyne Controls Voice Recorder (CVR)
Flight Data Recorder (FDR)
1 Honeywell MCS-6000 SATCOM
1 Honeywell TCAS w/ Change 7.1 (ASC-188B Part 2)
FANS 1/A+
Dual Honeywell SPZ-8500 AFCS
Honeywell SPZ-8500 FCS EFIS
Honeywell / GEC Marconi Heads-Up Display (HUD) w/ Enhanced Vision System (EVS)
2 Collins VHF-422D VHF Comm Transceivers w/ 8.33 spacing
3 Collins VIR-432 VHF NAV Receivers
3 Collins RTU-4280
2 Collins ADF-462 ADFs
2 Collins DME-422 DMEs
2 Collins TDR-94D Mode S Transponders w/ ADS-B Out v1 (DO-260A)
3 Honeywell NZ-2000 FMS (IAC) w/ 6.1 Software
2 Honeywell HG2021GD02 GPS Sensors (SBAS / WAAS Certified)
3 Honeywell LaserRef Ill IRS
1 Honeywell Mark V EGPWS w/ RAAS & Windshear Warning System
2 Honeywell RT-300 Radio Altimeters
1 Honeywell Primus 880 Weather Radar
1 Honeywell DL 950 Data loader
3 Honeywell AZ-840 Micro Air Data Computers
1 Artex 406 MHz ELT
2 Collins RM-855 Radio Management Units w/ Color CDUs
2 Collins HF-9034 HF Communication w/ SELCAL
1 Honeywell AFIS/SAT AFIS
Teledyne Controls Voice Recorder (CVR)
Flight Data Recorder (FDR)
1 Honeywell MCS-6000 SATCOM
1 Honeywell TCAS w/ Change 7.1 (ASC-188B Part 2)
Interior
Number Of Passengers:
14
Aft Galley: Yes
Forward Lavatory: Yes
Aft Lavatory: Yes
Interior Last Refurbished:
2024
Gulfstream GV serial number 536 underwent a comprehensive exterior and interior refurbishment in 2023/2024 totaling approximately $5,000,000. The bespoke cabin interior reflects a collaborative vision between the owner and internationally recognized designer BorromeodeSilva, masterfully executed by Duncan Aviation to exacting standards. Every element was thoughtfully redesigned with meticulous attention to detail, resulting in a refined, contemporary cabin where quality and craftsmanship are evident throughout.
Technological enhancements include the latest Venue cabin management system featuring Prism LED upwash and downwash lighting, an Alto Technologies premium audio system with Bluetooth capability, and a 22” high-definition Rosen LCD monitor integrated into the credenza for an elevated entertainment experience. Global high-speed connectivity is provided via Starlink, ensuring seamless internet access wherever the aircraft operates.
Further enhancing passenger comfort and wellness, the cabin is equipped with ACA’s Advanced Clean Air Ionization System, a maintenance-free air and surface purification solution designed to neutralize the cabin environment and promote a cleaner, healthier onboard experience.

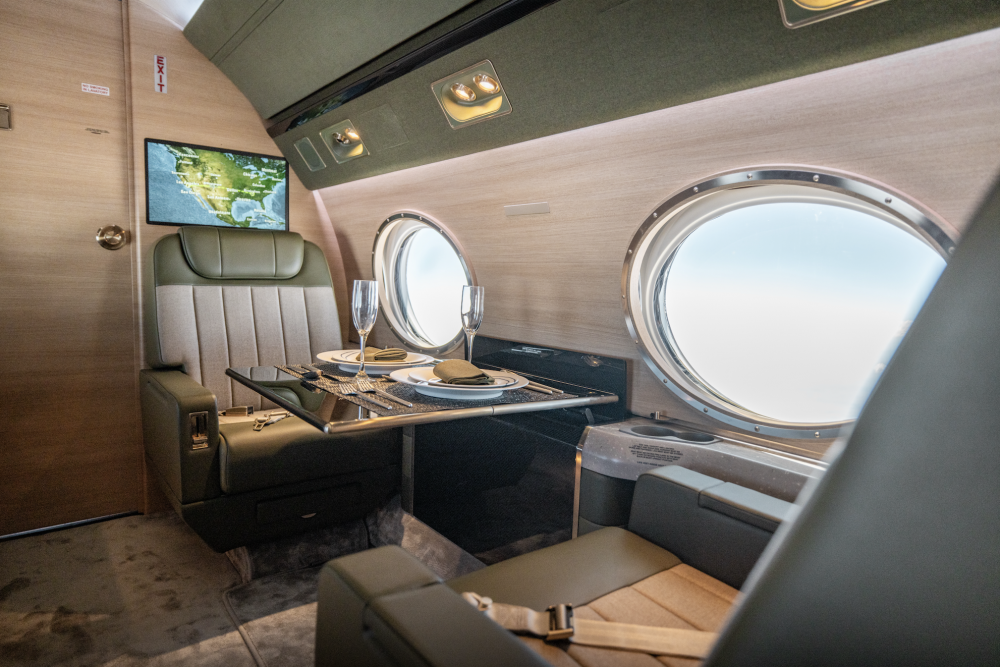

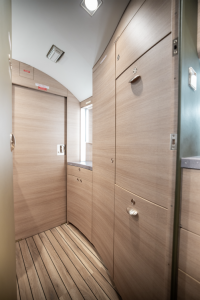

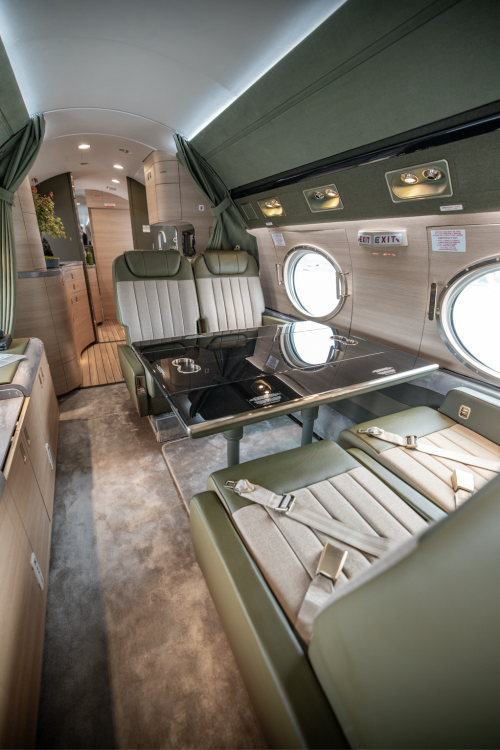

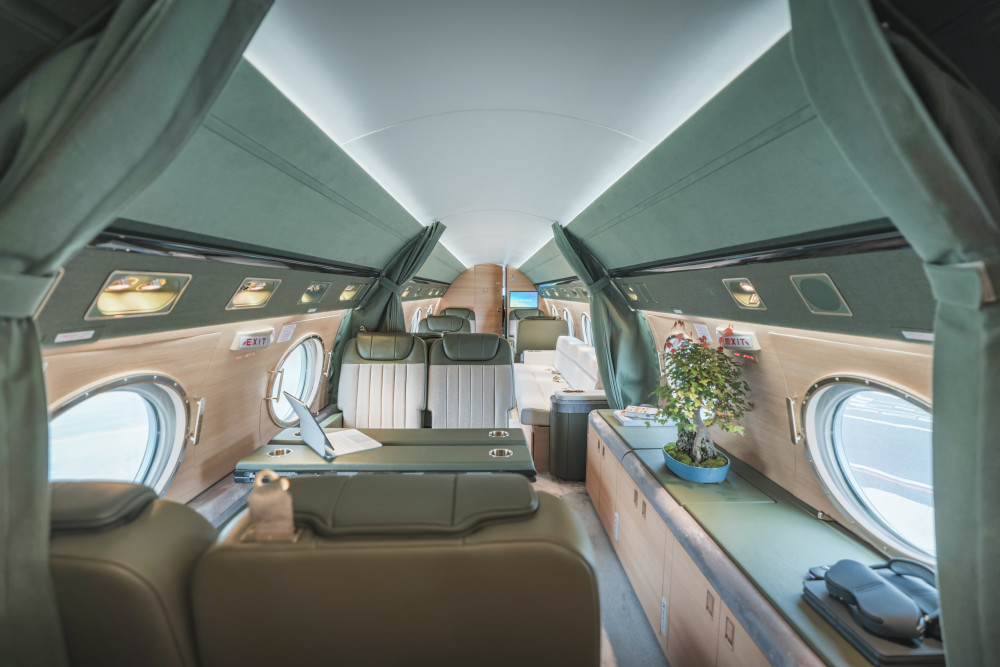

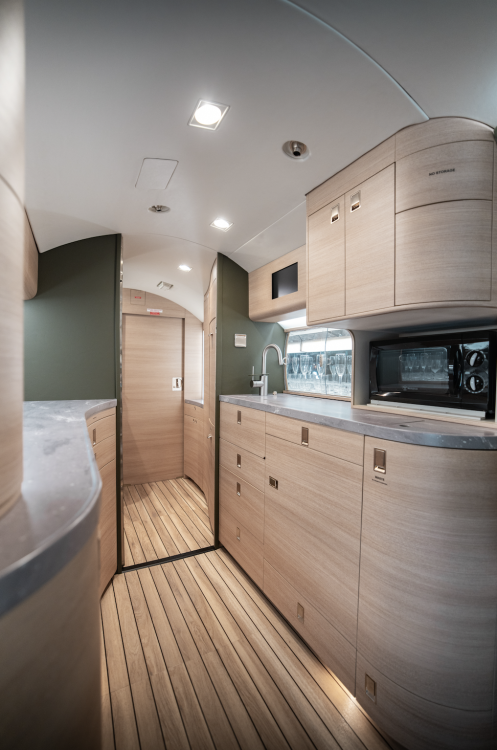

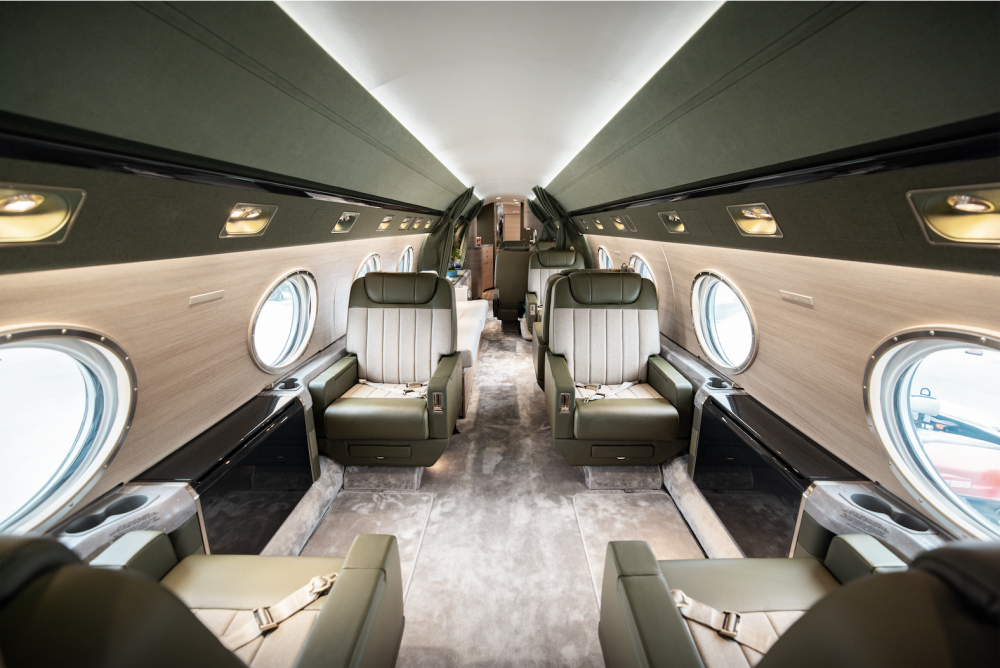

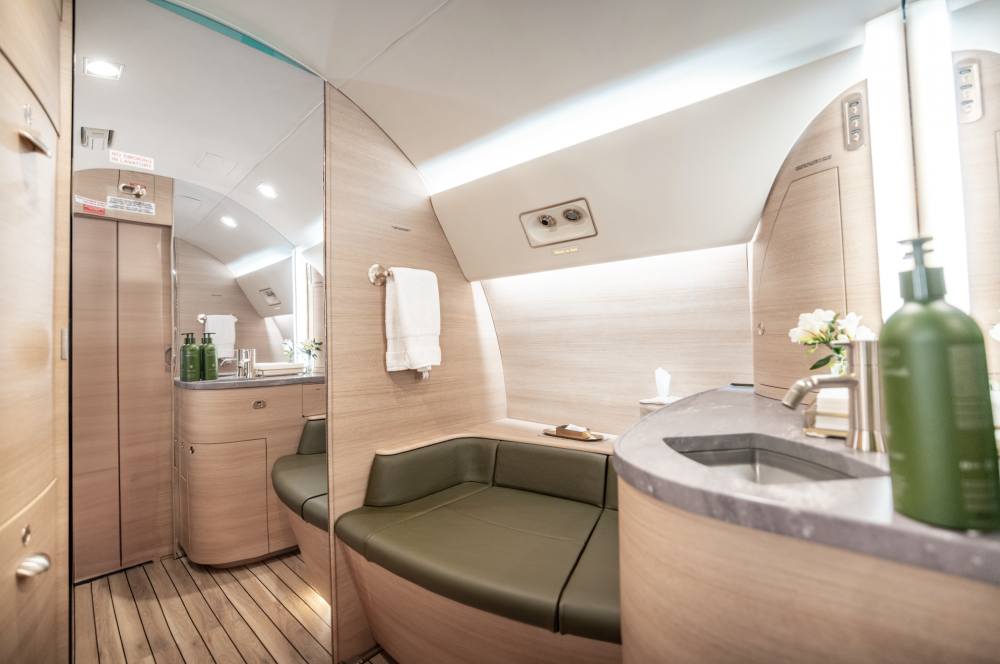

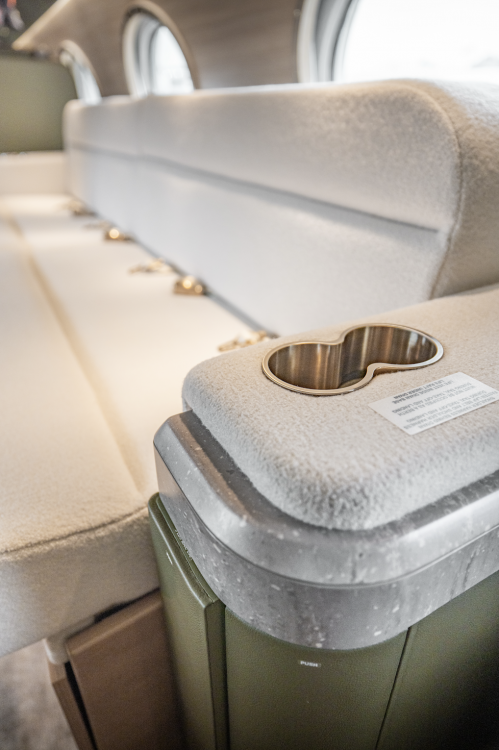

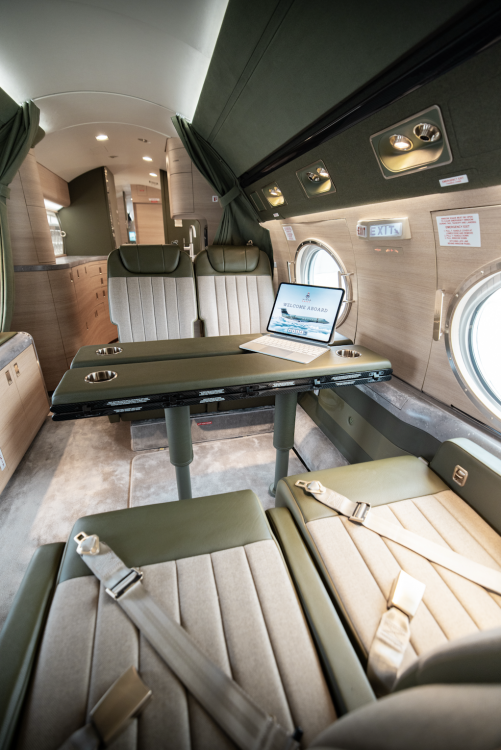

The 14 place interior consists of a forward crew rest area, forward crew galley annex, forward crew lavatory and an AFT main galley and AFT main lavatory. The interior features a forward-cabin 4-place club, a mid-cabin left-side 4-place divan opposite 2 single club chairs, and an aft-cabin 4-place club opposite a credenza.
Technological enhancements include the latest Venue cabin management system featuring Prism LED upwash and downwash lighting, an Alto Technologies premium audio system with Bluetooth capability, and a 22” high-definition Rosen LCD monitor integrated into the credenza for an elevated entertainment experience. Global high-speed connectivity is provided via Starlink, ensuring seamless internet access wherever the aircraft operates.
Further enhancing passenger comfort and wellness, the cabin is equipped with ACA’s Advanced Clean Air Ionization System, a maintenance-free air and surface purification solution designed to neutralize the cabin environment and promote a cleaner, healthier onboard experience.
The 14 place interior consists of a forward crew rest area, forward crew galley annex, forward crew lavatory and an AFT main galley and AFT main lavatory. The interior features a forward-cabin 4-place club, a mid-cabin left-side 4-place divan opposite 2 single club chairs, and an aft-cabin 4-place club opposite a credenza.
Entertainment
Enhanced Soundproofing upgrade
Satcom Direct SDR Gateway Router
Starlink Global Satellite wifi

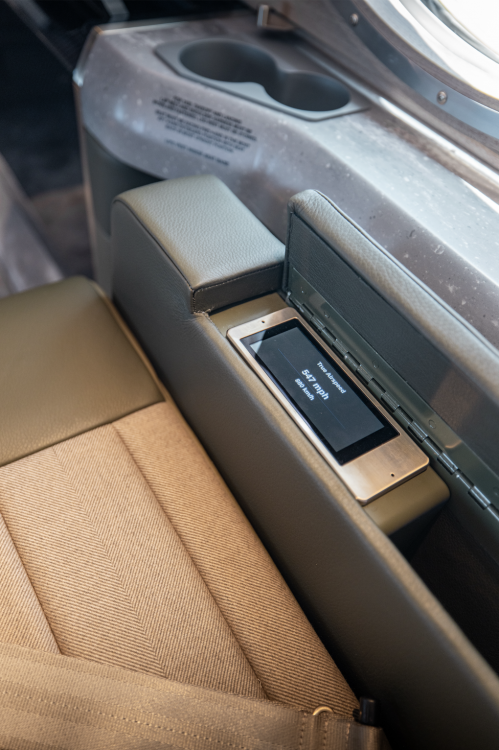

Venue Cabin Management System
Alto Technologies Audio System with Bluetooth receiver
22” High Definition Rosen LCD in Credenza
Prism LED Lighting
ACA Aviation Clean Air Ionization System
USB outlets throughout the cabin
Satcom Direct SDR Gateway Router
Starlink Global Satellite wifi
Venue Cabin Management System
Alto Technologies Audio System with Bluetooth receiver
22” High Definition Rosen LCD in Credenza
Prism LED Lighting
ACA Aviation Clean Air Ionization System
USB outlets throughout the cabin
Exterior
Last Painted:
2023

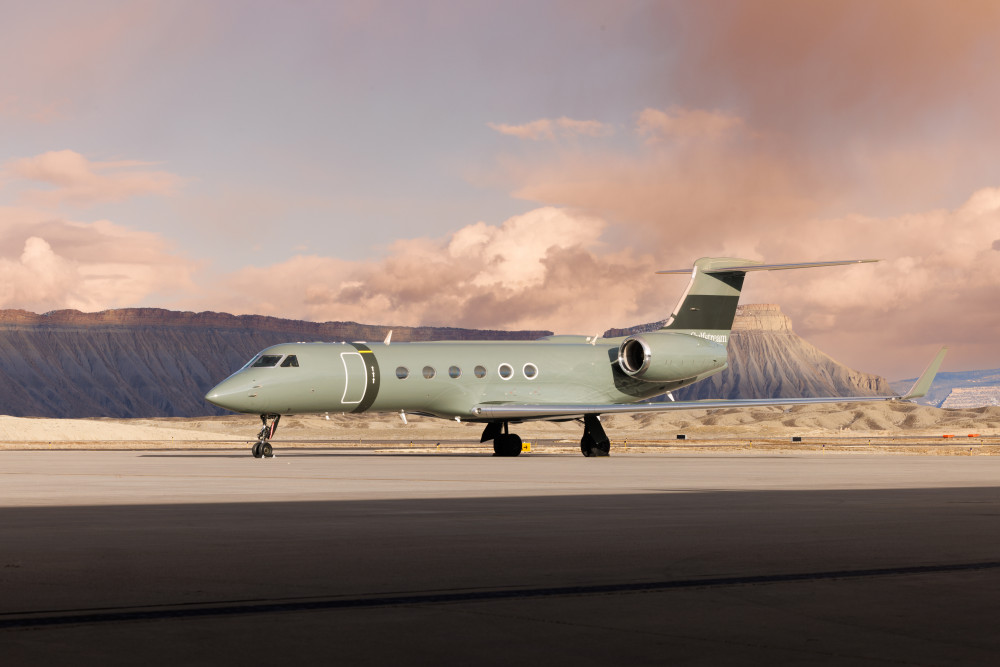

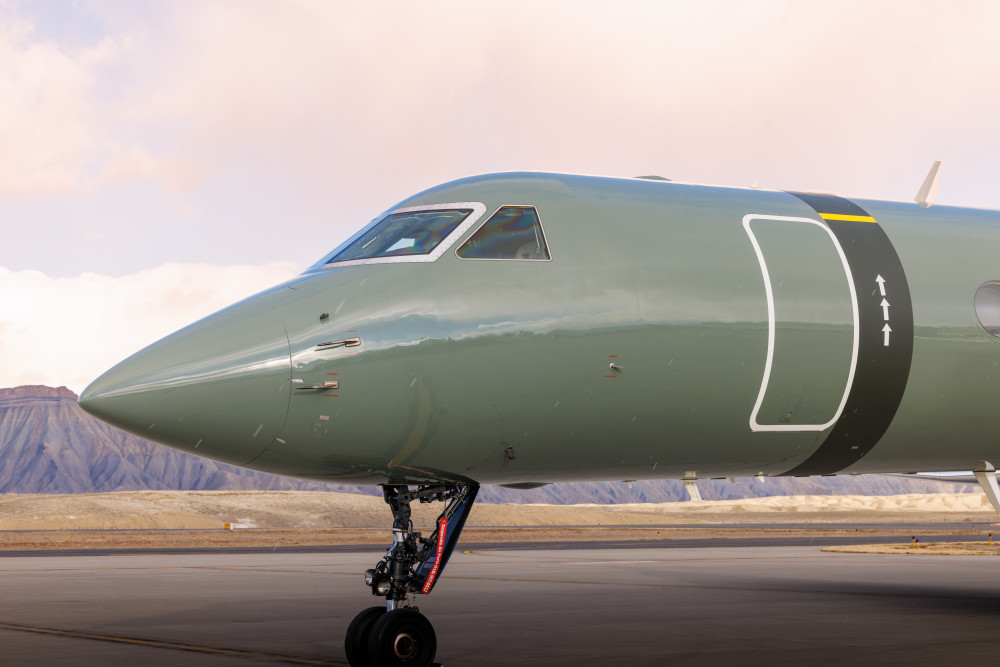

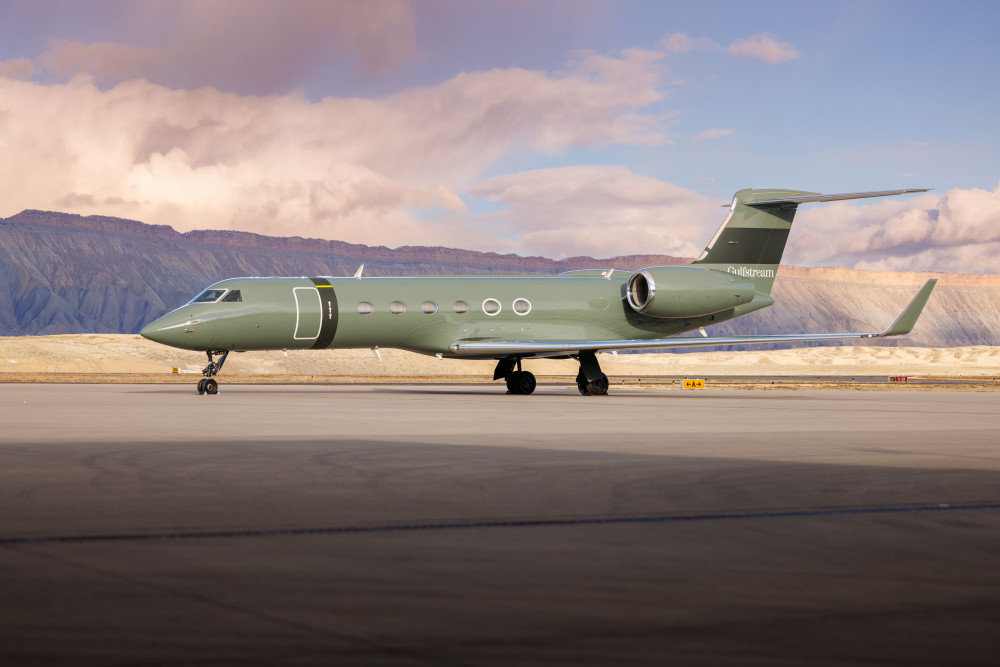

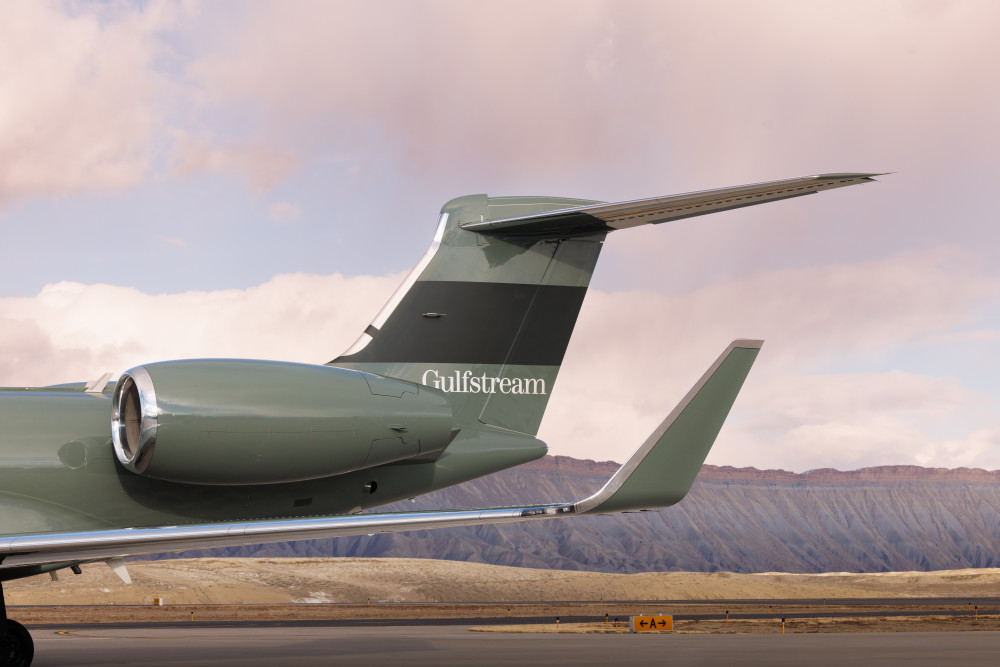

The exterior was designed by BorromeodeSilva, overall Volvo Sage Green with accents of Matte Porsche Black Olive and a stripe of Porsche Bahama Yellow.
Weights
Empty Weight:
46,972.00
Basic Operating Weight:
48,279.00
