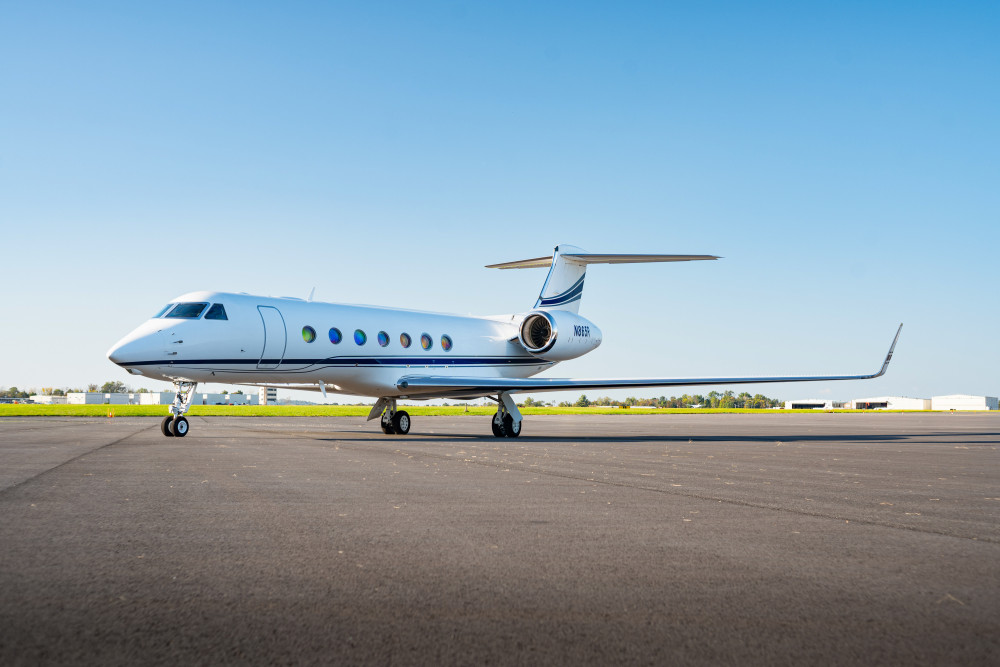

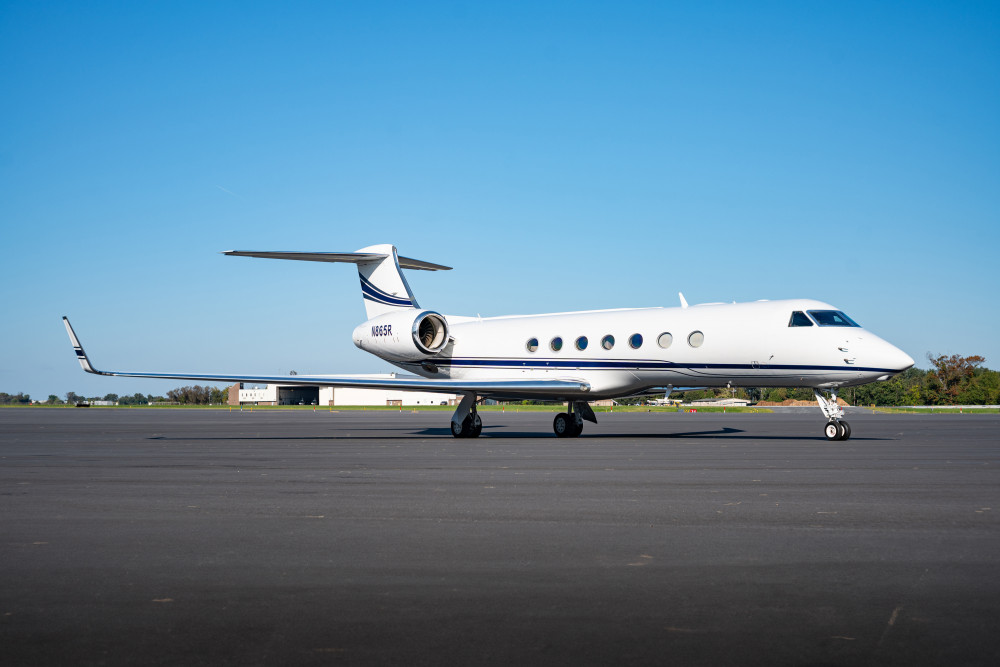

2009 Gulfstream G550
Price: $18,995,000
- Serial Number: 5211
Fortune 100 Ownership For 12 Years
Engines on Rolls-Royce Corporate Care
APU on MSP
Operated Part 135
FDR 88 Parameters
KA-Band Hi-Speed Internet Service
New Soft Goods December 2021
Engines on Rolls-Royce Corporate Care
APU on MSP
Operated Part 135
FDR 88 Parameters
KA-Band Hi-Speed Internet Service
New Soft Goods December 2021
Airframe
Total Hours:
0
Total Cycles:
0
Home Base:
TTN
6,187 Hours 2,053 Landings
Certificate of Airworthiness: September 9, 2008
Entry Into Service: January 30, 2009
Certificate of Airworthiness: September 9, 2008
Entry Into Service: January 30, 2009
Engines
Rolls-Royce BR700-710C4-11 (G550)
Mid-Life c/w December 2016 at 4,167 Hrs.
Overhaul Due at 8,000 Hrs.
Mid-Life c/w December 2016 at 4,167 Hrs.
Overhaul Due at 8,000 Hrs.
Engine Program Coverage:
Rolls Royce Corporate Care (RRCC)
Engine 1
Serial Number:
15525
Hours Since New:
6,062
Cycles Since New:
2,012
Engine 2
Serial Number:
15526
Hours Since New:
6,062
Cycles Since New:
2,012
APU
Description:
Honeywell RE220 (G550)
APU Program Coverage:
MSP
Serial Number:
P-539
Total Time Since New:
3,135

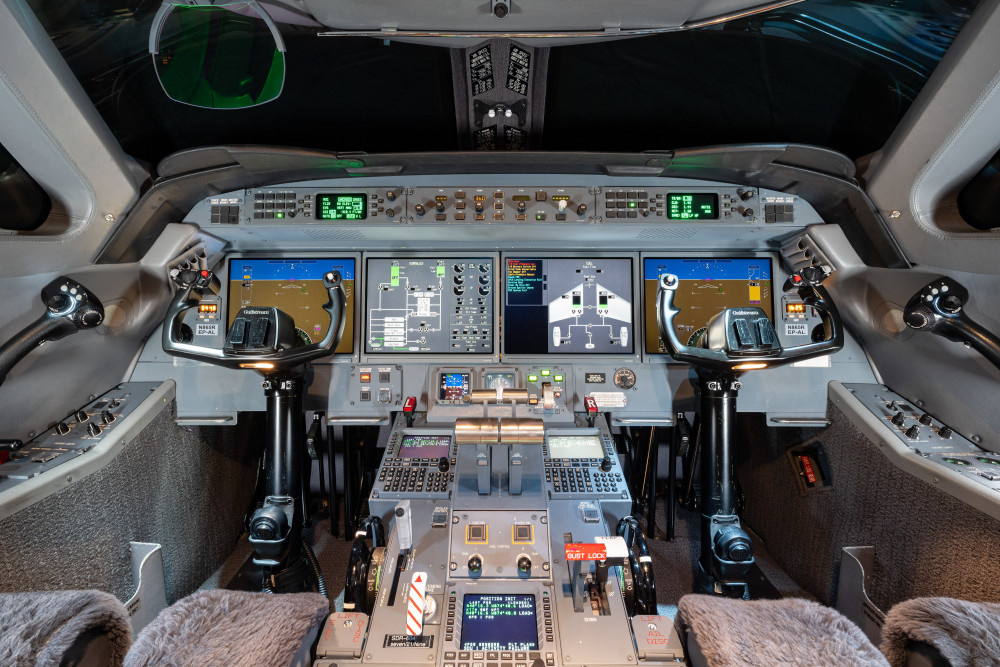

Avionics
AIR DATA COMPUTER: Triple Honeywell AZ-200 Air Data Modules
AUTOMATIC DIRECTION FINDER: Dual Honeywell DF-855 ADF
AUTO THROTTLES: Honeywell Auto Throttle System
AUTOPILOT / FLIGHT DIRECTOR: Honeywell GP-500 System
COCKPIT VOICE RECORDER: L3 Cockpit Voice Recorder
COMMUNICATIONS: Dual Honeywell TR-865A and Third Honeywell NC-860A Comm Modules
DISTANCE MEASURING EQUIPMENT: (2) Honeywell DM-855
ELECTRONIC FLIGHT INFORMATION SYSTEMS: Honeywell Planeview – 4 Tube EFIS
EMERGENCY LOCATOR TRANSMITTER: Artex C-406N (Triple Frequency) ELT
ENHANCED VISION SYSTEM: Kollsman EVS System
FLIGHT DATA RECORDER: L3 Flight Data Recorder – 88 Parameters
FLIGHT GUIDANCE COMPUTER: Honeywell Planeview System
FLIGHT MANAGEMENT SYSTEM: Honeywell Planeview System
GLOBAL POSITIONING SYSTEM: Dual Honeywell GPS Modules
HIGH FREQUENCY RADIO: Dual Rockwell Collins HF-9034A HF Com Radios
HEADS UP DISPLAY: Honeywell VGS System with EVS
LONG RANGE NAVIGATION: Triple Honeywell Laseref V Micro IRUs
NAVIGATION: Dual Honeywell NV-875A NAV Radios with ILS, Glide Slope, and Marker Beacons
RADIO ALTIMETER: Dual Honeywell RT-300 Radio Altimeters
SYNTHETIC VISION SYSTEM: ASC 61B
TERRAIN AWARENESS AND WARNING SYSTEM: Dual EGPWM-100 Modules
TRAFFIC COLLISION AVOIDANCE SYSTEM: TCAS 2000 with Change 7.1 (ASC 103)
TRANSPONDER: Dual Honeywell XS-858A Mode S Transponders w/ ADS-B Out v2 (DO-260B)
WEATHER RADAR: Honeywell Primus WU-880 Color Weather Rada
AUTOMATIC DIRECTION FINDER: Dual Honeywell DF-855 ADF
AUTO THROTTLES: Honeywell Auto Throttle System
AUTOPILOT / FLIGHT DIRECTOR: Honeywell GP-500 System
COCKPIT VOICE RECORDER: L3 Cockpit Voice Recorder
COMMUNICATIONS: Dual Honeywell TR-865A and Third Honeywell NC-860A Comm Modules
DISTANCE MEASURING EQUIPMENT: (2) Honeywell DM-855
ELECTRONIC FLIGHT INFORMATION SYSTEMS: Honeywell Planeview – 4 Tube EFIS
EMERGENCY LOCATOR TRANSMITTER: Artex C-406N (Triple Frequency) ELT
ENHANCED VISION SYSTEM: Kollsman EVS System
FLIGHT DATA RECORDER: L3 Flight Data Recorder – 88 Parameters
FLIGHT GUIDANCE COMPUTER: Honeywell Planeview System
FLIGHT MANAGEMENT SYSTEM: Honeywell Planeview System
GLOBAL POSITIONING SYSTEM: Dual Honeywell GPS Modules
HIGH FREQUENCY RADIO: Dual Rockwell Collins HF-9034A HF Com Radios
HEADS UP DISPLAY: Honeywell VGS System with EVS
LONG RANGE NAVIGATION: Triple Honeywell Laseref V Micro IRUs
NAVIGATION: Dual Honeywell NV-875A NAV Radios with ILS, Glide Slope, and Marker Beacons
RADIO ALTIMETER: Dual Honeywell RT-300 Radio Altimeters
SYNTHETIC VISION SYSTEM: ASC 61B
TERRAIN AWARENESS AND WARNING SYSTEM: Dual EGPWM-100 Modules
TRAFFIC COLLISION AVOIDANCE SYSTEM: TCAS 2000 with Change 7.1 (ASC 103)
TRANSPONDER: Dual Honeywell XS-858A Mode S Transponders w/ ADS-B Out v2 (DO-260B)
WEATHER RADAR: Honeywell Primus WU-880 Color Weather Rada
Inspections
Inspection Type
Performed
Next Due
12 Mo.
Performed:
July 2023
@
6,091 Hours
Next Due:
July 2024
24 Mo.
Performed:
November 2022
@
5,841 Hours
Next Due:
November 2024
48 Mo.
Performed:
December 2020
@
5,490 Hours
Next Due:
January 2025
72 Mo.
Performed:
December 2020
@
5,490 Hours
Next Due:
January 2027
96 Mo.
Performed:
December 2016
@
4,292 Hours
Next Due:
January 2025
144 Mo.
Performed:
December 2020
@
5,490 Hours
Next Due:
January 2033
192 Mo.
Next Due:
January 2025
Engines on Rolls Royce Corporate Care
APU Enrolled on MSP
Enrolled on Honeywell MSP Avionics & MSP Mechanical Components Coverage
Enrolled on Collins Avionics Service Program (CASP)
Maintenance Records Tracked on Gulfstream CMP
Operated & Maintained in Accordance w/ Solairus Aviation’s FAR 135 Certificate
On MSG-3 Maintenance Program
Additional Equipment/Features
Major Aircraft Service Changes, Enhancements, & Upgrades:
• ASC 002C Digital FDR System Upgrade (88 Parameters)
• ASC 008 Maximum Gross Weight 75,000 Pounds Placard
• ASC 008B Maximum Gross Weight 75,000 Pounds
• ASC 009 Max Zero Fuel Gross Weight
• ASC 049 Lightning Sensor System (LSS) Installation
• ASC 053 Comm Management FNC ARINC Direct-Datalink
• ASC 061 AM1 Synthetic Vision Primary Flight Display (SV-PFD)
• ASC 065A Runway Awareness Advisory System Installation
• ASC 071 Micro Quick Access Recorder Installation
• ASC 073A Nose Gear Uplock Hook Spring Replacement
• ASC 080/AM1-2 Modification - Wing Rear Beam – Flight Spoiler Actuator Attachment Point
• ASC 084 Enhanced Navigation
o Future Air Navigation System (FANS 1/A+) CPDLC
o Wide Area Augmentation System (WAAS) w/ LPV Approaches
o Circling Approaches
o Temperature Compensated VNAV
o Peaks Display
o Electronic Terminal Charts (Certified Paperless Flight Deck)
o New/Upgraded - 2 GPS Antennas, 2 GPS Modules, 1 CMC Module, & 3 IRUs
o Short-Range/Long-Range Navigation (SRN-LRN) Automatic Preview & Transition
• ASC 089 Stage 4 Noise Standards – Certification
• ASC 090A/AM1 Auxiliary Power Unit (APU) Enclosure – Thermal Barrier Installation
• ASC 092 Comm Management Function (CMF) - SATCOM Direct - Datalink Service Provider
• ASC 093A Aileron Cable Fairleads AT Sponson Rib – Installation
• ASC 094B Landing Gear Door Close – Restrictor
• ASC 099A Aileron and Elevator Power Disconnect - Removal
• ASC 103 TCAS 7.1 Installation
• ASC 104 Aileron Cable Penetrations AT FS 576.5 Floor Beam - Rework
• ASC 105 Auto Dependent Surveillance – Broadcast (ADS-B) Out Installation v2 (DO-260B)
• ASC 107 Planeview Avionics Enhancement
• ASC 112 Elevator Hardover Prevention System (HOPS) – Improvement
• ASC 113A Planeview Avionics Enhancement
• ASC 116B/C Nose Landing Gear Harness Installation
• ASC 120 Engine Driven Pump (EDP) Case Drain Hose Routing in Left Pylon
• ASC 122 Pressure Supply Line - Modification
• ASC 123C Planeview Avionics Enhancement
• ASC 124 Nose Landing Gear Electrical Harness & Hyd Brake Line Chafing – Modification
• ASC 127 LED Navigation and Anticollision Strobe Light Upgrade
• ASC 129 Junction Panel Relay Obsolescence Modification
• ASC 134 Auxiliary Hydraulic Pump – Grounding Installation
• ASC 137A Horizontal Stabilizer Cove Panels AV-DEC Gasket Installation
• ASC 912C Planeview Master Operating System Software Update
Additional Features and Modifications:
Electric Window Shades
External Camera System
Securaplane 500 Security System
Cockpit Crew Jump Seat
QAR
RAAS
Lightning Sensor System
EVAS

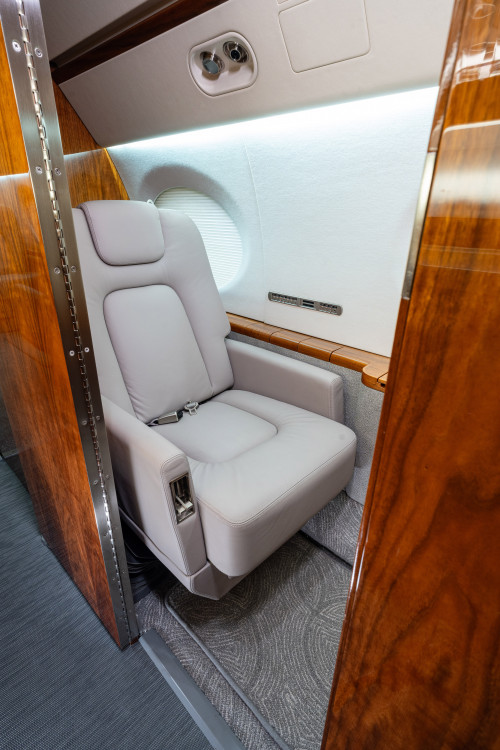

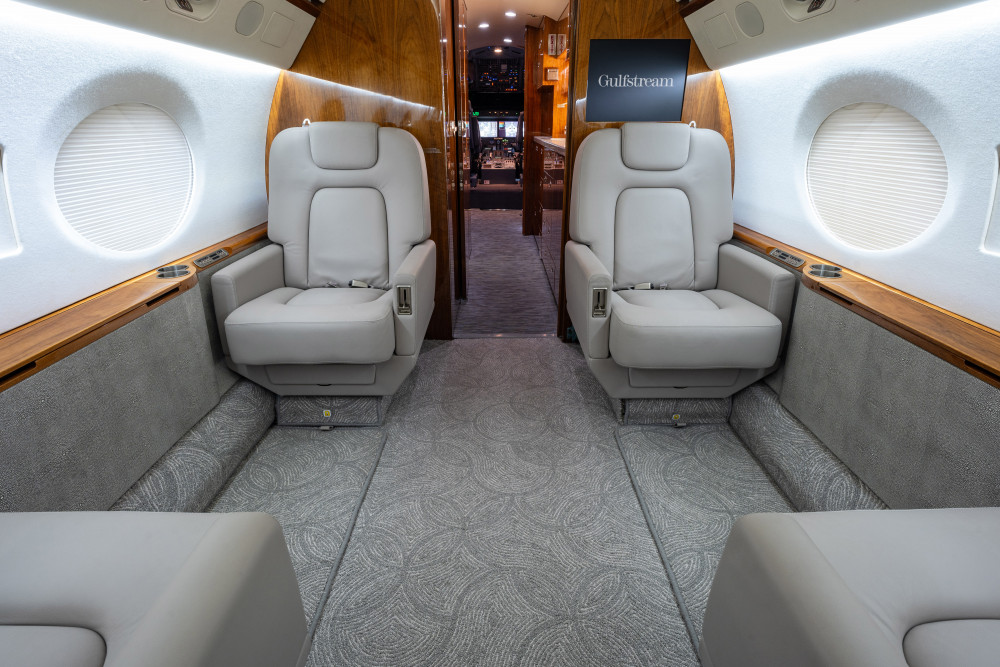

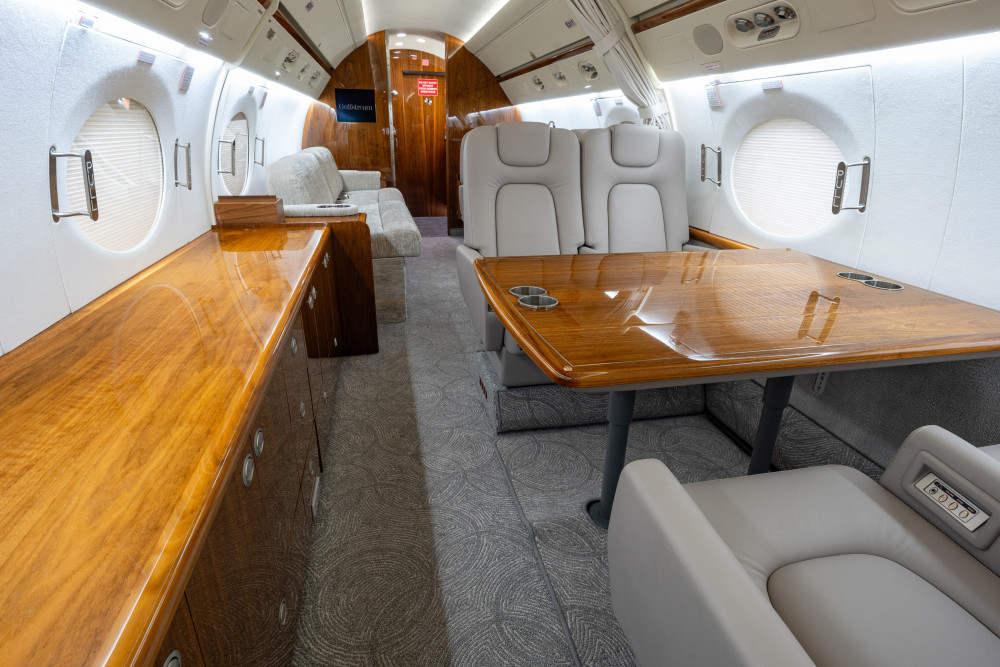

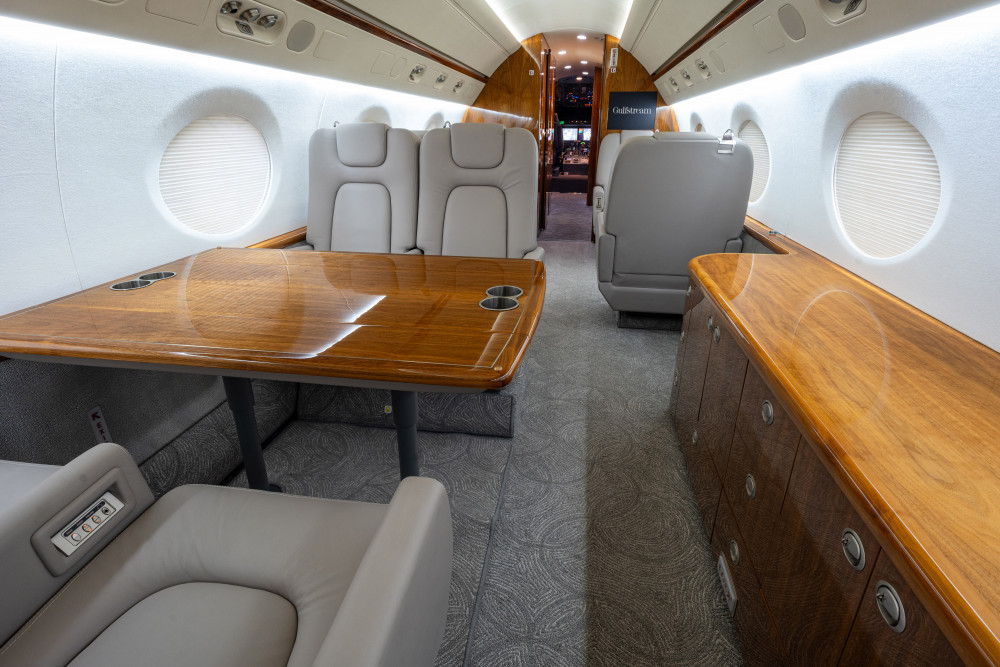

All Club Chairs Have Pull-Out Footrests
Enhanced Soundproofing
LED Cabin Lighting
Maintenance:
NOTE: The following 500 Hr. & 1,000 Hr. Items to be completed at Gulfstream Westfield (November 6, 2023 Reserved Input Date). Some of these items include:
• 321045/321046 – Main Landing Gear and Attachments (Left & Right) – General Visual Inspection
• 322006 – Nose Landing Gear and Attachments – General Visual Inspection
• 723101 – No. 1 Engine Low Pressure Compressor (Fan) Blades – Detailed Inspection
• 723102 – No. 2 Engine Low Pressure Compressor (Fan) Blades – Detailed Inspection
• 790011 – No 1. Engine Magnetic Chip Detectors – Detailed Inspection
• 790012 – No. 2 Engine – Magnetic Chip Detectors – Detailed Inspection
• 710017 – No. 1 Engine - Engine Run Leak Check Test 2A – LP Fuel System/Oil System
• 710018 – No. 2 Engine – Engine Run Leak Check Test 2A – LP Fuel System/Oil System
• 790019 – No. 1 Engine - Engine Accessory Gearbox Magnetic Chip Detector – Removal/Installation
• 790020– No. 2 Engine – Engine Accessory Gearbox Magnetic Chip Detector – Removal/Installation
• 724005 – No. 1 Engine – High-Pressure Turbine Stage 1 Rotor Blades –Special Detailed Inspection
• 724006 – No. 2 Engine – High-Pressure Turbine Stage 1 Rotor Blades –Special Detailed Inspection
• 742001 – No. 1 Engine- Engine Igniter Plus (No. 1) – Removal/Installation
• 742002 – No. 2 Engine- Engine Igniter Plus (No. 1) – Removal/Installation
• 724007 – No. 1 Engine High Pressure Turbine Nozzle Guide Vanes – Special Detailed Inspection
• 724008 – No. 2 Engine High Pressure Turbine Nozzle Guide Vanes – Special Detailed Inspection
• 724003 – No. 1 Engine – Engine Igniter Plug (No. 2) – Removal/Installation
• 724004 - No. 2 Engine – Engine Igniter Plug (No. 2) – Removal/Installation
• 724009 – No. 1 Engine Combustion Liner – Special Detailed Inspection
• 724010 – No. 1 Engine Combustion Liner – Special Detailed Inspection
• 781101 – No. 1 Engine – Exhaust Nozzle Inspection
• 781102 – No. 2 Engine – Exhaust Nozzle Inspection
• 781103 – No. 1 Engine – Exhaust Cone Assembly – Inspection
• 781104 – No. 2 Engine – Exhaust Cone Assembly – Inspection
• 783109/783110 – Thrust Reverser Pivoting Doors (Left & Right)
• 783041 – Thrust Reverser/Exhaust Flow Path Surface (Right) – Detailed Inspection
• 510013 – External Metallic Surfaces – Polishing
• 545003/545004 – Pylon Leading Edge (Left & Right) – Polishing
• 551113 – Horizontal Stabilizer Leading Edge – Polishing
• 553031 – Vertical Stabilizer Leading Edge – Polishing
• 574013/574014 – Wing Leading Edge (Left & Right) – Polishing
• 711109/711110 – Inlet Cowl Lipskin (Left & Right) – Polishing
• ASC 002C Digital FDR System Upgrade (88 Parameters)
• ASC 008 Maximum Gross Weight 75,000 Pounds Placard
• ASC 008B Maximum Gross Weight 75,000 Pounds
• ASC 009 Max Zero Fuel Gross Weight
• ASC 049 Lightning Sensor System (LSS) Installation
• ASC 053 Comm Management FNC ARINC Direct-Datalink
• ASC 061 AM1 Synthetic Vision Primary Flight Display (SV-PFD)
• ASC 065A Runway Awareness Advisory System Installation
• ASC 071 Micro Quick Access Recorder Installation
• ASC 073A Nose Gear Uplock Hook Spring Replacement
• ASC 080/AM1-2 Modification - Wing Rear Beam – Flight Spoiler Actuator Attachment Point
• ASC 084 Enhanced Navigation
o Future Air Navigation System (FANS 1/A+) CPDLC
o Wide Area Augmentation System (WAAS) w/ LPV Approaches
o Circling Approaches
o Temperature Compensated VNAV
o Peaks Display
o Electronic Terminal Charts (Certified Paperless Flight Deck)
o New/Upgraded - 2 GPS Antennas, 2 GPS Modules, 1 CMC Module, & 3 IRUs
o Short-Range/Long-Range Navigation (SRN-LRN) Automatic Preview & Transition
• ASC 089 Stage 4 Noise Standards – Certification
• ASC 090A/AM1 Auxiliary Power Unit (APU) Enclosure – Thermal Barrier Installation
• ASC 092 Comm Management Function (CMF) - SATCOM Direct - Datalink Service Provider
• ASC 093A Aileron Cable Fairleads AT Sponson Rib – Installation
• ASC 094B Landing Gear Door Close – Restrictor
• ASC 099A Aileron and Elevator Power Disconnect - Removal
• ASC 103 TCAS 7.1 Installation
• ASC 104 Aileron Cable Penetrations AT FS 576.5 Floor Beam - Rework
• ASC 105 Auto Dependent Surveillance – Broadcast (ADS-B) Out Installation v2 (DO-260B)
• ASC 107 Planeview Avionics Enhancement
• ASC 112 Elevator Hardover Prevention System (HOPS) – Improvement
• ASC 113A Planeview Avionics Enhancement
• ASC 116B/C Nose Landing Gear Harness Installation
• ASC 120 Engine Driven Pump (EDP) Case Drain Hose Routing in Left Pylon
• ASC 122 Pressure Supply Line - Modification
• ASC 123C Planeview Avionics Enhancement
• ASC 124 Nose Landing Gear Electrical Harness & Hyd Brake Line Chafing – Modification
• ASC 127 LED Navigation and Anticollision Strobe Light Upgrade
• ASC 129 Junction Panel Relay Obsolescence Modification
• ASC 134 Auxiliary Hydraulic Pump – Grounding Installation
• ASC 137A Horizontal Stabilizer Cove Panels AV-DEC Gasket Installation
• ASC 912C Planeview Master Operating System Software Update
Additional Features and Modifications:
Electric Window Shades
External Camera System
Securaplane 500 Security System
Cockpit Crew Jump Seat
QAR
RAAS
Lightning Sensor System
EVAS
All Club Chairs Have Pull-Out Footrests
Enhanced Soundproofing
LED Cabin Lighting
Maintenance:
NOTE: The following 500 Hr. & 1,000 Hr. Items to be completed at Gulfstream Westfield (November 6, 2023 Reserved Input Date). Some of these items include:
• 321045/321046 – Main Landing Gear and Attachments (Left & Right) – General Visual Inspection
• 322006 – Nose Landing Gear and Attachments – General Visual Inspection
• 723101 – No. 1 Engine Low Pressure Compressor (Fan) Blades – Detailed Inspection
• 723102 – No. 2 Engine Low Pressure Compressor (Fan) Blades – Detailed Inspection
• 790011 – No 1. Engine Magnetic Chip Detectors – Detailed Inspection
• 790012 – No. 2 Engine – Magnetic Chip Detectors – Detailed Inspection
• 710017 – No. 1 Engine - Engine Run Leak Check Test 2A – LP Fuel System/Oil System
• 710018 – No. 2 Engine – Engine Run Leak Check Test 2A – LP Fuel System/Oil System
• 790019 – No. 1 Engine - Engine Accessory Gearbox Magnetic Chip Detector – Removal/Installation
• 790020– No. 2 Engine – Engine Accessory Gearbox Magnetic Chip Detector – Removal/Installation
• 724005 – No. 1 Engine – High-Pressure Turbine Stage 1 Rotor Blades –Special Detailed Inspection
• 724006 – No. 2 Engine – High-Pressure Turbine Stage 1 Rotor Blades –Special Detailed Inspection
• 742001 – No. 1 Engine- Engine Igniter Plus (No. 1) – Removal/Installation
• 742002 – No. 2 Engine- Engine Igniter Plus (No. 1) – Removal/Installation
• 724007 – No. 1 Engine High Pressure Turbine Nozzle Guide Vanes – Special Detailed Inspection
• 724008 – No. 2 Engine High Pressure Turbine Nozzle Guide Vanes – Special Detailed Inspection
• 724003 – No. 1 Engine – Engine Igniter Plug (No. 2) – Removal/Installation
• 724004 - No. 2 Engine – Engine Igniter Plug (No. 2) – Removal/Installation
• 724009 – No. 1 Engine Combustion Liner – Special Detailed Inspection
• 724010 – No. 1 Engine Combustion Liner – Special Detailed Inspection
• 781101 – No. 1 Engine – Exhaust Nozzle Inspection
• 781102 – No. 2 Engine – Exhaust Nozzle Inspection
• 781103 – No. 1 Engine – Exhaust Cone Assembly – Inspection
• 781104 – No. 2 Engine – Exhaust Cone Assembly – Inspection
• 783109/783110 – Thrust Reverser Pivoting Doors (Left & Right)
• 783041 – Thrust Reverser/Exhaust Flow Path Surface (Right) – Detailed Inspection
• 510013 – External Metallic Surfaces – Polishing
• 545003/545004 – Pylon Leading Edge (Left & Right) – Polishing
• 551113 – Horizontal Stabilizer Leading Edge – Polishing
• 553031 – Vertical Stabilizer Leading Edge – Polishing
• 574013/574014 – Wing Leading Edge (Left & Right) – Polishing
• 711109/711110 – Inlet Cowl Lipskin (Left & Right) – Polishing
Interior
New Soft Goods December 2021 @ International Jet Interiors, Ronkonkoma, NY

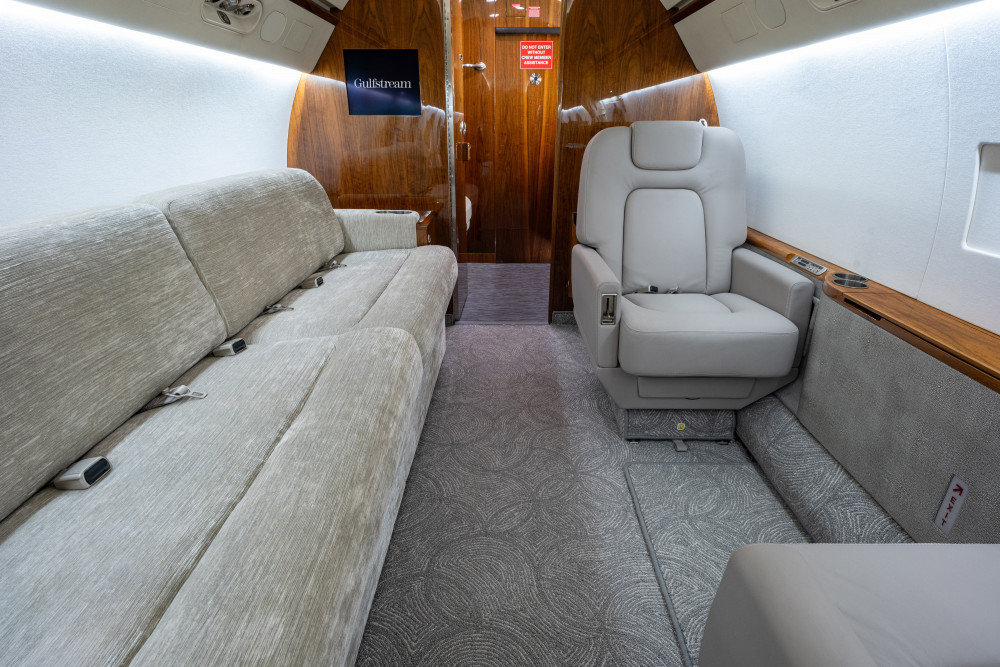

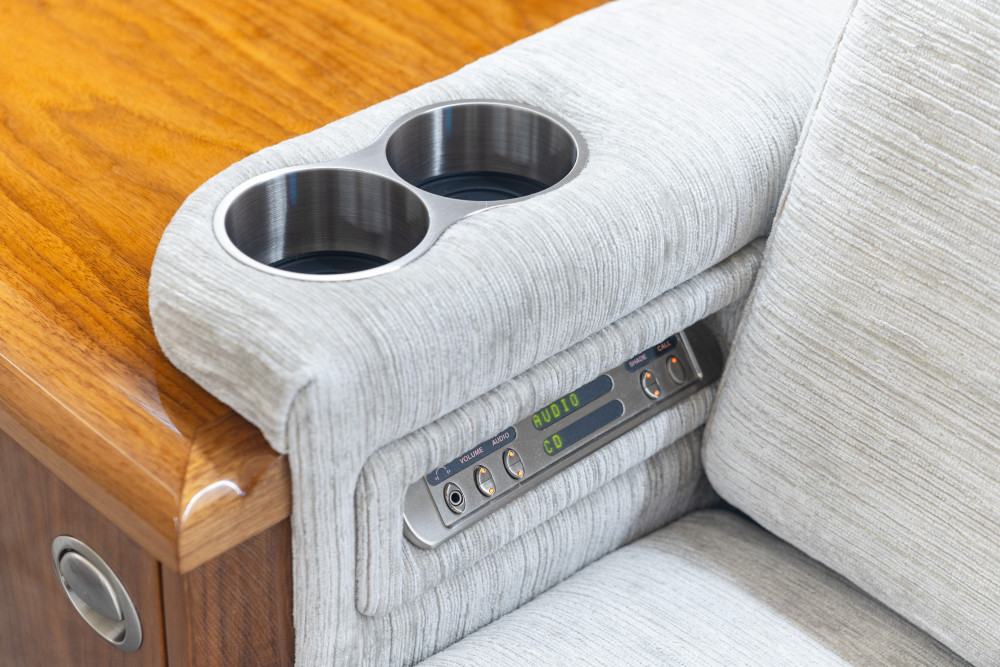

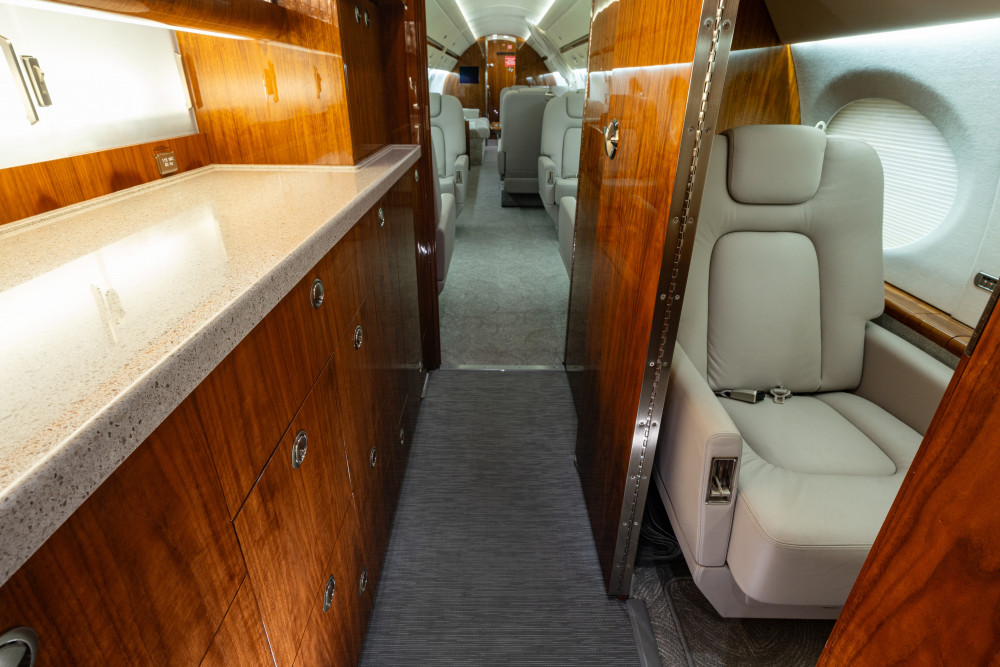

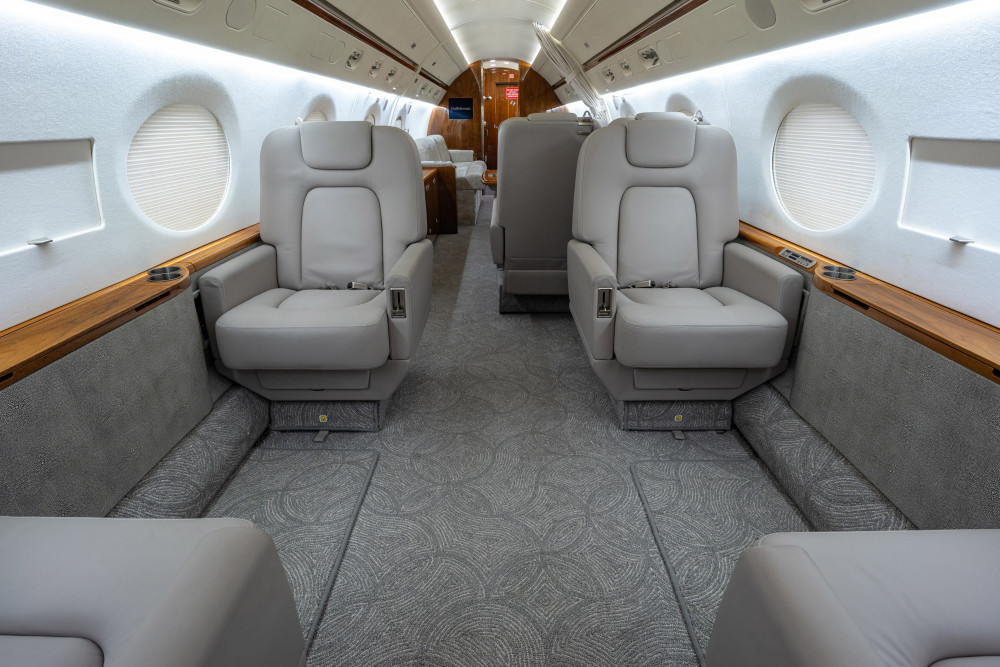

Fourteen (14) passenger Forward Galley Universal Floorplan with fire-blocked interior featuring a crew jump seat, right-side forward crew vacuum lavatory with stowable sink assembly, left-side forward crew rest compartment, right-side forward main galley, aft main vacuum lavatory, aft baggage compartment, and electric window shades. The main cabin, separated from the forward main galley area by a hinged door, features a forward-cabin 4-place club, a mid-cabin left-side 4-place conference group with Hi-Lo Table opposite a credenza, and an aft-cabin left-side 2-place club opposite a 4-place berthable divan separated from the mid-cabin by a removeable curtain. The forward-cabin 4-place club and aft-cabin left-side 2-place club includes stowable executive writing and dining tables between the opposing club chairs. The club and conference group chairs are upholstered in a light beige leather, the divan in a coordinated light beige textured fabric, complemented by a neutral pattern beige carpet. The wood/cabinetry is a medium colored high gloss veneer complemented by brushed satin nickel plating on all hardware.
The right-side full-service Forward Galley is equipped to provide full meal and beverage service to passengers. The galley features a high-temperature oven, Sharp microwave oven, stainless steel sink with faucet assembly, touch-screen monitor, crystal and cutlery storage, waste container, dirty dish drawer, miscellaneous storage, china, & crystal storage, ice compartment, can drink storage, thermo-electric cooled food storage compartment with adjustable shelves, and miscellaneous storage, and 115V/60Hz universal outlet. The private aft lavatory and dressing area features a mirrored, lighted vanity, sink, central vacuum style flushing toilet, ample closet and storage areas, and in-flight accessibility to the spacious walk-in aft baggage compartment.
Cabin entertainment includes Airshow 4000 which can be viewed on One (1) 20” LCD Monitor in the Right-Hand Fwd Cabin Bulkhead, One (1) 17” LCD Monitor in the Right-Hand Aft Cabin Bulkhead, and Seven (7) 7” LCD Personal Monitors at each of the seven single seats (Includes CR). The aircraft is also equipped with Honeywell Ka-Band Hi-Speed Internet Service connected via a wireless LAN.
NOTE: New Soft Goods (Club Chairs Reupholstered, New Divan Fabric, New Carpet, New Lower Sidewalls) December 2021 @ International Jet Interiors, Ronkonkoma, NY.
Fourteen (14) passenger Forward Galley Universal Floorplan with fire-blocked interior featuring a crew jump seat, right-side forward crew vacuum lavatory with stowable sink assembly, left-side forward crew rest compartment, right-side forward main galley, aft main vacuum lavatory, aft baggage compartment, and electric window shades. The main cabin, separated from the forward main galley area by a hinged door, features a forward-cabin 4-place club, a mid-cabin left-side 4-place conference group with Hi-Lo Table opposite a credenza, and an aft-cabin left-side 2-place club opposite a 4-place berthable divan separated from the mid-cabin by a removeable curtain. The forward-cabin 4-place club and aft-cabin left-side 2-place club includes stowable executive writing and dining tables between the opposing club chairs. The club and conference group chairs are upholstered in a light beige leather, the divan in a coordinated light beige textured fabric, complemented by a neutral pattern beige carpet. The wood/cabinetry is a medium colored high gloss veneer complemented by brushed satin nickel plating on all hardware.
The right-side full-service Forward Galley is equipped to provide full meal and beverage service to passengers. The galley features a high-temperature oven, Sharp microwave oven, stainless steel sink with faucet assembly, touch-screen monitor, crystal and cutlery storage, waste container, dirty dish drawer, miscellaneous storage, china, & crystal storage, ice compartment, can drink storage, thermo-electric cooled food storage compartment with adjustable shelves, and miscellaneous storage, and 115V/60Hz universal outlet. The private aft lavatory and dressing area features a mirrored, lighted vanity, sink, central vacuum style flushing toilet, ample closet and storage areas, and in-flight accessibility to the spacious walk-in aft baggage compartment.
Cabin entertainment includes Airshow 4000 which can be viewed on One (1) 20” LCD Monitor in the Right-Hand Fwd Cabin Bulkhead, One (1) 17” LCD Monitor in the Right-Hand Aft Cabin Bulkhead, and Seven (7) 7” LCD Personal Monitors at each of the seven single seats (Includes CR). The aircraft is also equipped with Honeywell Ka-Band Hi-Speed Internet Service connected via a wireless LAN.
NOTE: New Soft Goods (Club Chairs Reupholstered, New Divan Fabric, New Carpet, New Lower Sidewalls) December 2021 @ International Jet Interiors, Ronkonkoma, NY.
Entertainment
Entertainment:
Honeywell Ka-Band Hi-Speed Internet Service
Airshow 4000
One (1) 20" LCD Monitor in Right-Hand Forward Bulkhead
One (1) 17" LCD Monitor in Right-Hand Aft Bulkhead
Seven (7) 7” LCD Monitors In The Window Panel at Each Club Seat & Crew Rest Area
SDR and SD Gateway Redundancy Routers
Honeywell MCS 7000+ Satcom with SD Gateway
True North (Satcom Direct) Gateway Iridium Satellite Phone System
(2) Wireless Handsets And (1) Wired Handset (In Cockpit)
115V Outlets In Cabin
Honeywell Ka-Band Hi-Speed Internet Service
Airshow 4000
One (1) 20" LCD Monitor in Right-Hand Forward Bulkhead
One (1) 17" LCD Monitor in Right-Hand Aft Bulkhead
Seven (7) 7” LCD Monitors In The Window Panel at Each Club Seat & Crew Rest Area
SDR and SD Gateway Redundancy Routers
Honeywell MCS 7000+ Satcom with SD Gateway
True North (Satcom Direct) Gateway Iridium Satellite Phone System
(2) Wireless Handsets And (1) Wired Handset (In Cockpit)
115V Outlets In Cabin
Exterior

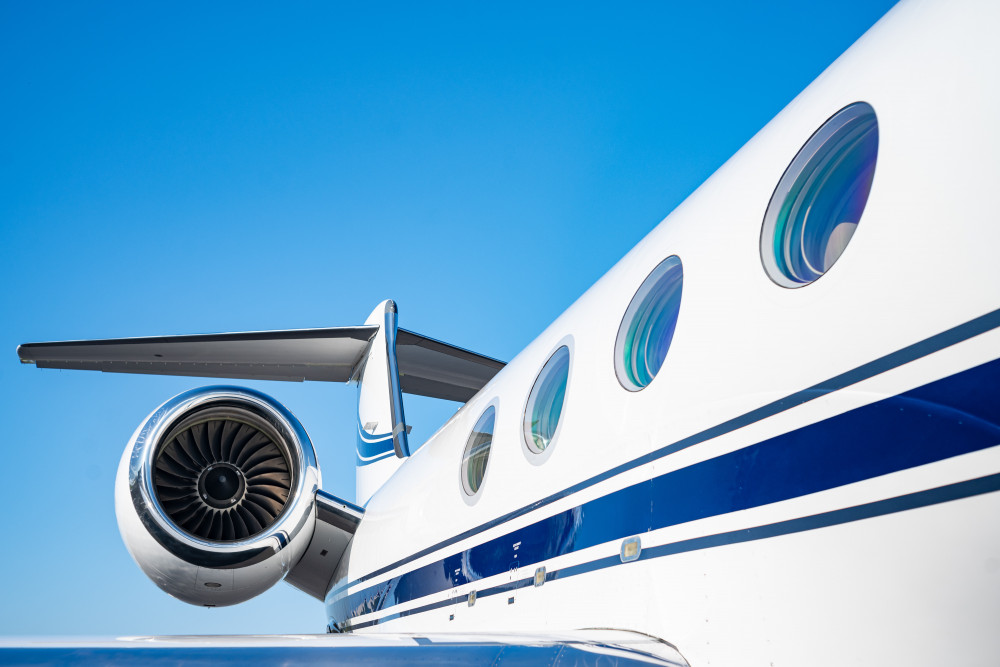

Original 2009 w/ New Stripes Painted November 2021
Overall Matterhorn White with Dark Blue & Blue Pearl Accent Striping.
Overall Matterhorn White with Dark Blue & Blue Pearl Accent Striping.
Weights
Max Takeoff Weight:
91,000.00
Max Landing Weight:
75,300.00
Max Zero Fuel Weight:
54,500.00
Empty Weight:
48,489.00
Ramp Weight:
91,400.00
