1995 Gulfstream G-IV SP
Price: Call for Price
- Serial Number: 1258
- Tail Number: N598GS
- Hours: 8,454
- Cycles: 5,506
Three Fortune Owners Since New
FANS 1/A & CPDLC
ADS-B Out with WAAS & LPV
6.1 Software upgrade
-150 APU
Landing Gear Inspection (2017)
Maintained MSG 3
Gogo Avance L5 WIFI
14 Passenger Configuration
Aft Galley
New Paint in February 2017
New Interior in April 2013
FANS 1/A & CPDLC
ADS-B Out with WAAS & LPV
6.1 Software upgrade
-150 APU
Landing Gear Inspection (2017)
Maintained MSG 3
Gogo Avance L5 WIFI
14 Passenger Configuration
Aft Galley
New Paint in February 2017
New Interior in April 2013
Airframe
Total Hours:
8,454
Total Cycles:
5,506
Engines
Rolls Royce Tay MK 611-8
Engine 1
Hours Since New:
8,206
Cycles Since New:
5,352
Engine 2
Hours Since New:
8,326
Cycles Since New:
5,461
APU
Description:
Garrett GTCP36-150(G)
Total Time Since New:
4,897
Avionics
Maintenance Program:
GCMP
ADS-B Out Equipped:Yes
FANS Equipped:Yes
WAAS Equipped:Yes
LPV Equipped:Yes
CPDLC Equipped:Yes
Honeywell SPZ-8400 system
AFIS: Allied Signal AFIS Data Management System
AIR DATA COMPUTER: Honeywell AZ-810
AUTO THROTTLES: (2) PZ-800 Performance Auto throttle Computer
AUTOMATIC DIRECTION FINDER: (2) ADF Control Heads
AVIONICS INTERFACE UNIT: Gulfstream Aerospace Corp.
COCKPIT VOICE RECORDER: L3 Harris FA2100 CVR (30/120 mins)
COMMUNICATIONS: (3) Collins VHF-422D w/8.33 Spacing & FM Immunity
CONTROL DISPLAY UNITS: (3) Honeywell CD-810 CDUs
DATA ACQUISTION UNITS: (2) Honeywell DA-884
DATA COMMUNICATION UNIT: VHF/Sat AFIS with DMU and SCU
DISTANCE MEASURING EQUIPMENT: (2) Collins DME-442 DME
EFIS: Sperry SPZ-8400 6-tube EFIS
EMERGENCY LOCATOR TRANSMITTER: Artex 110-406
FANS-1/A over IRIDIUM Satcom Systems installed per Gulfstream ASC 502A
FAULT WARNING COMPUTER: Dual Honeywell FC-880
FLIGHT DATA RECORDER: L3 Communications F1000 SSFDR 57 Parameters
FLIGHT GUIDANCE COMPUTER: (2) Honeywell FZ-820
FLIGHT MANAGEMENT SYSTEM: (3) Honeywell FMS sw level 6.1 with SBAS/LPV GPS installed using ASC 477A
GLOBAL POSITIONING SYSTEM: (2) HG2021 GNSSU GNS Sensor Units
HF: (2) Collins HF 9032 Transceivers with dual Control Heads, with Selcal
LIGHTNING SENSOR: Honeywell LSZ-850
LONG RANGE NAVIGATION: (3) Honeywell Laseref II (HG1075AE)
NAVIGATION: (2) Collins VIR-432 NAV Receivers
RADAR: (1) Wx Radar WU-880 w/Control Heads on side panels
RADIO ALTIMETER: (2) Honeywell RT-300 Radio Altimeter System SELCAL: Motorola
SYMBOL GENERATOR: (2) Honeywell SG-884
TAWS: Honeywell Mark V EGPWS w/RAAS and windshear detection
TRAFFIC ALERT & COLLISION AVOIDANCE SYSTEM: Honeywell / L3 Communications TCAS II sw 7.1 TRANSPONDER: (2) Collins TDR-94D Transponders with ADS-B out installed per ASC 502A
AFIS: Allied Signal AFIS Data Management System
AIR DATA COMPUTER: Honeywell AZ-810
AUTO THROTTLES: (2) PZ-800 Performance Auto throttle Computer
AUTOMATIC DIRECTION FINDER: (2) ADF Control Heads
AVIONICS INTERFACE UNIT: Gulfstream Aerospace Corp.
COCKPIT VOICE RECORDER: L3 Harris FA2100 CVR (30/120 mins)
COMMUNICATIONS: (3) Collins VHF-422D w/8.33 Spacing & FM Immunity
CONTROL DISPLAY UNITS: (3) Honeywell CD-810 CDUs
DATA ACQUISTION UNITS: (2) Honeywell DA-884
DATA COMMUNICATION UNIT: VHF/Sat AFIS with DMU and SCU
DISTANCE MEASURING EQUIPMENT: (2) Collins DME-442 DME
EFIS: Sperry SPZ-8400 6-tube EFIS
EMERGENCY LOCATOR TRANSMITTER: Artex 110-406
FANS-1/A over IRIDIUM Satcom Systems installed per Gulfstream ASC 502A
FAULT WARNING COMPUTER: Dual Honeywell FC-880
FLIGHT DATA RECORDER: L3 Communications F1000 SSFDR 57 Parameters
FLIGHT GUIDANCE COMPUTER: (2) Honeywell FZ-820
FLIGHT MANAGEMENT SYSTEM: (3) Honeywell FMS sw level 6.1 with SBAS/LPV GPS installed using ASC 477A
GLOBAL POSITIONING SYSTEM: (2) HG2021 GNSSU GNS Sensor Units
HF: (2) Collins HF 9032 Transceivers with dual Control Heads, with Selcal
LIGHTNING SENSOR: Honeywell LSZ-850
LONG RANGE NAVIGATION: (3) Honeywell Laseref II (HG1075AE)
NAVIGATION: (2) Collins VIR-432 NAV Receivers
RADAR: (1) Wx Radar WU-880 w/Control Heads on side panels
RADIO ALTIMETER: (2) Honeywell RT-300 Radio Altimeter System SELCAL: Motorola
SYMBOL GENERATOR: (2) Honeywell SG-884
TAWS: Honeywell Mark V EGPWS w/RAAS and windshear detection
TRAFFIC ALERT & COLLISION AVOIDANCE SYSTEM: Honeywell / L3 Communications TCAS II sw 7.1 TRANSPONDER: (2) Collins TDR-94D Transponders with ADS-B out installed per ASC 502A
Navigation and Compliance
RVSM Equipped:Yes
FANS Equipped:Yes
CPDLC Equipped:Yes
ADS-B Equipped:Yes
RNP Equipped:Yes
Inspections
Inspection Type
Performed
Next Due
12 Month
Next Due:
February 2022
24 Month
Performed:
February 2021
Next Due:
January 2022
48 Month
Performed:
May 2019
Next Due:
May 2023
96 Month
Performed:
February 2017
Next Due:
February 2025
144 Month
Performed:
September 2011
Next Due:
September 2023
192 Month
Performed:
September 2011
Next Due:
September 2027
Engines (Overhaul)
Performed:
August 2014
Engines (Mid-Life)
Next Due:
August 2024
5,000 Landing Cycles
Performed:
February 2017
Interior
Number Of Passengers:
14
Aft Galley: Yes
Forward Lavatory: Yes
Aft Lavatory: Yes
Interior Last Refurbished:
2013

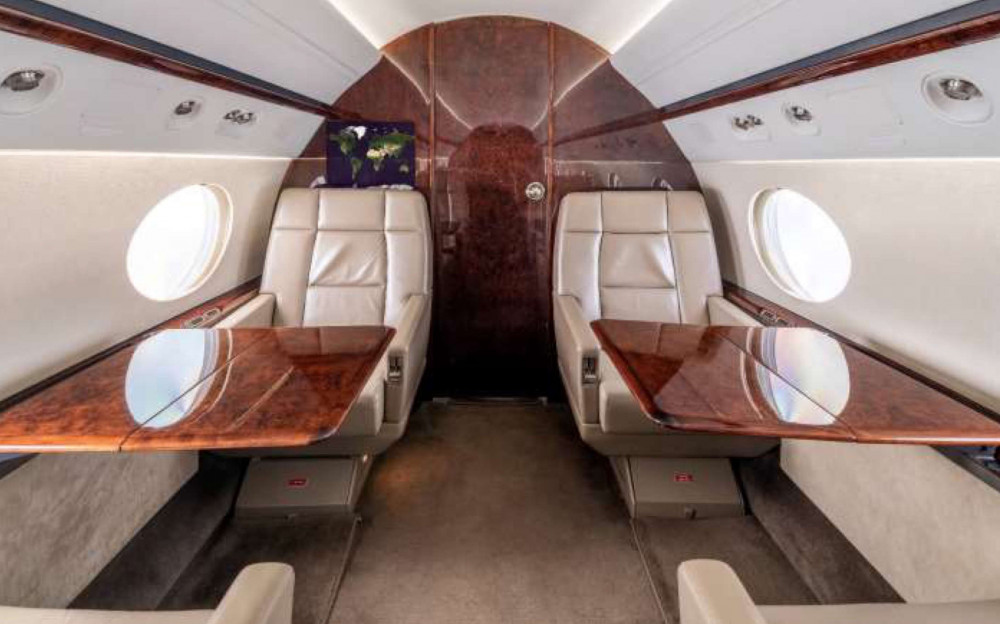

- Elegantly appointed 14-passenger executive floor plan features a four-place club in the forward cabin, a left hand side conference group opposite a credenza in the center and opposing 3-place divans in aft section.
- Forward closet and Book rack in foyer (left side) for storage of aircraft Manuals
- Lower closet for portable Oxygen Bottle Sound Dampening Main Entrance Door Curtain

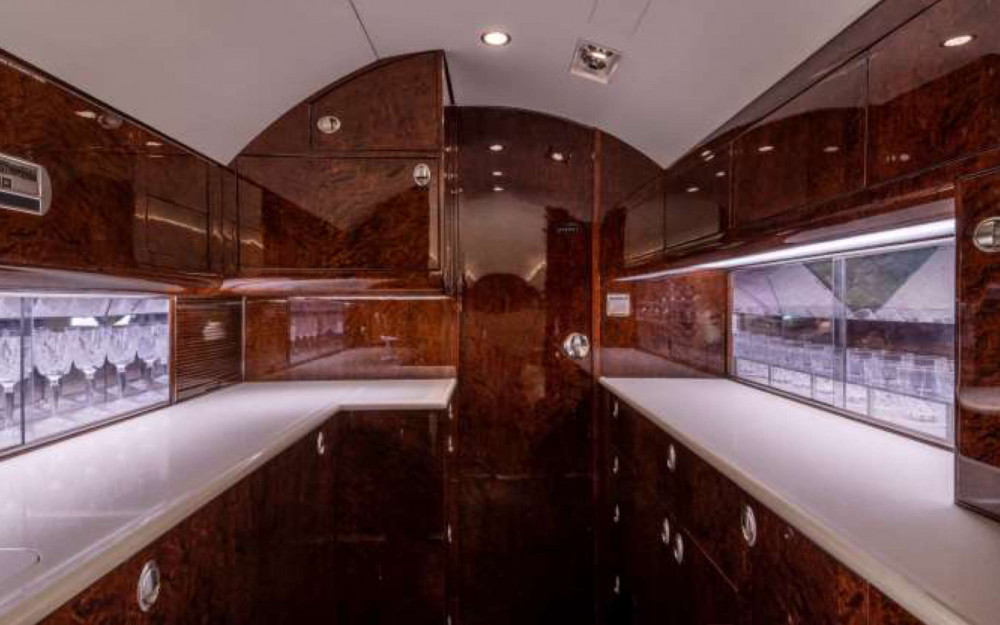

Galley:
- Large Gasper Cooled Unit with 3 slide out shelves
- Nespresso Coffee Maker
- GE Microwave Oven
- Deep Sink, Faucet Activates on Pressure Mat Switch
- Small freezer Unit (located in the aft lavatory closet)
- Nordskog Industries Large High Temp Oven with 5 Racks
- Dual Electrical Outlets (1) 115 VAC 60 Hz and (1) 115 VAC 400 Hz - - Dual Drawer style Ice Bins
- Dual Drawer style Trash Bins Small Discreet/Hidden Safe with lock & Key
Lavatory Description:
- A fully appointed aft lavatory.
- Honey bucket style forward lav & drop-down sink in the forward closet area which doubles as a coat closet.
- A Class B Baggage compartment completes the interior.
- Forward closet and Book rack in foyer (left side) for storage of aircraft Manuals
- Lower closet for portable Oxygen Bottle Sound Dampening Main Entrance Door Curtain
Galley:
- Large Gasper Cooled Unit with 3 slide out shelves
- Nespresso Coffee Maker
- GE Microwave Oven
- Deep Sink, Faucet Activates on Pressure Mat Switch
- Small freezer Unit (located in the aft lavatory closet)
- Nordskog Industries Large High Temp Oven with 5 Racks
- Dual Electrical Outlets (1) 115 VAC 60 Hz and (1) 115 VAC 400 Hz - - Dual Drawer style Ice Bins
- Dual Drawer style Trash Bins Small Discreet/Hidden Safe with lock & Key
Lavatory Description:
- A fully appointed aft lavatory.
- Honey bucket style forward lav & drop-down sink in the forward closet area which doubles as a coat closet.
- A Class B Baggage compartment completes the interior.
Entertainment
Display TV Monitors:
3 14"
Airshow System:
Airshow Genesys
High Speed Internet:
Gogo Avance L5 WIFI
DVD/CD Players:
Dual BlueRay
In-Flight Phone:
M4000Aircell Axxess II Iridium
Airshow Genesys
Triple 14” Rosen Wide-Angle XGA monitors in forward, mid-cabin and aft Bulkheads 110 AV Electrical Outlets Throughout Cabin
Dual BlueRay DVD Players
CD Player
(2) Aircell Axxess II Phone Handsets in cabin Digital Briefing System by Baker M4000Aircell Axxess II Iridium Phone System
HDMI Input
Triple 14” Rosen Wide-Angle XGA monitors in forward, mid-cabin and aft Bulkheads 110 AV Electrical Outlets Throughout Cabin
Dual BlueRay DVD Players
CD Player
(2) Aircell Axxess II Phone Handsets in cabin Digital Briefing System by Baker M4000Aircell Axxess II Iridium Phone System
HDMI Input
Exterior
Base Paint Colors:
Snow White/Jet Stream
Stripe Colors:
Raptor Red, Black & Gun Gray
Last Painted:
2017
