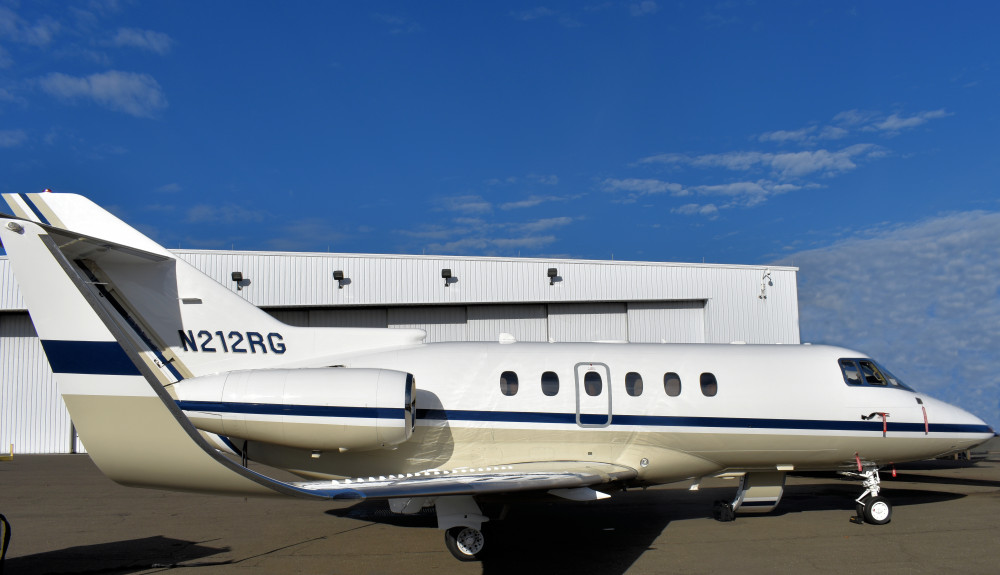

2005 Hawker 800XP
Price: $3,795,000
- Serial Number: 258700
- Tail Number: N212RG
- Hours: 6,125
- Cycles: 4,091
- U.S. Owned & Operated Since New
- Engines & APU on MSP Gold
- Maintained & Operated FAR Part 135
- G Inspection C/W at Weststar 08/2021
- Aircell ATG-5000 Gogo Biz® Hi-Speed Internet Service
- New Exterior Paint January 2016
- Located at Teterboro Airport (TEB) in Teterboro, New Jersey
- Engines & APU on MSP Gold
- Maintained & Operated FAR Part 135
- G Inspection C/W at Weststar 08/2021
- Aircell ATG-5000 Gogo Biz® Hi-Speed Internet Service
- New Exterior Paint January 2016
- Located at Teterboro Airport (TEB) in Teterboro, New Jersey
Airframe
Total Hours:
6,125
Total Cycles:
4,091
Entry Into Service Date:
March, 2005
Home Base:
TEB
Maintenance Tracking:
CAMP
Airframe: 6,125 Hours 4,091 Landings
CofA Date: March 4, 2005
Entry into Service Date: March 4, 2005
Ownership: U.S. Owned & Operated Since New
CofA Date: March 4, 2005
Entry into Service Date: March 4, 2005
Ownership: U.S. Owned & Operated Since New
Engines
Honeywell TFE731-5BR-1H
Engine Program Coverage:
MSP Gold
Engine 1
Serial Number:
P107955
Hours Since New:
6,125
Cycles Since New:
4,085
Engine 2
Serial Number:
P107954
Hours Since New:
6,125
Cycles Since New:
4,085
APU
Description:
Honeywell GTCP36-150(W)
APU Program Coverage:
MSP Gold
Serial Number:
P-815
Total Time Since New:
3,877
Total Cycles Since New:
224

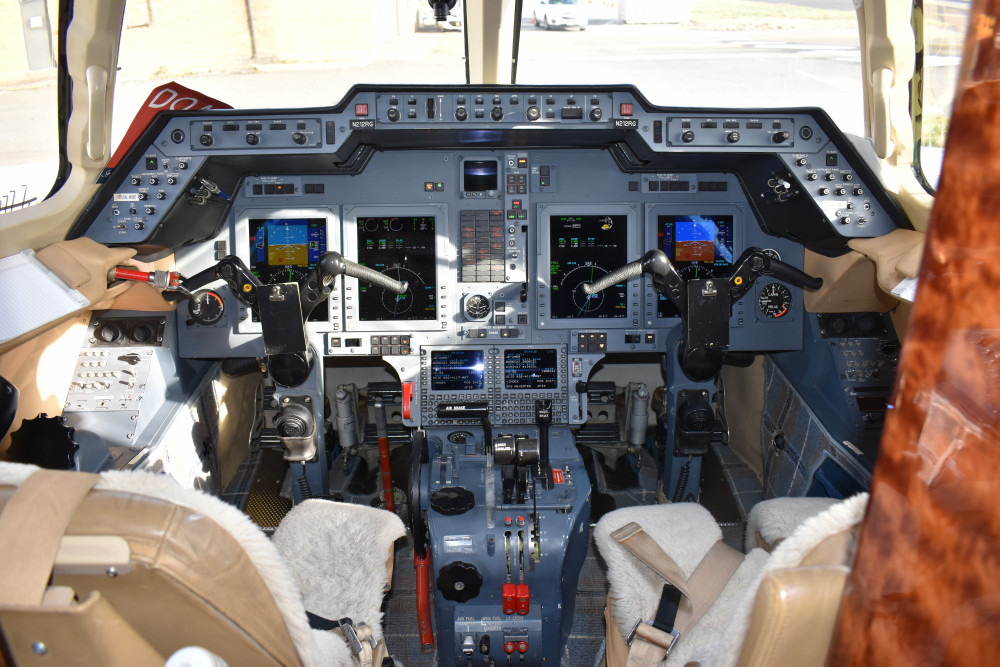

Avionics
Dual Collins Proline 21 Avionics Suite
Dual Collins FGS-3000 Flight Director System w/ Autopilot
Dual Collins FMC-6000 FMS
Dual Collins GPS-4000
Dual Collins VHF-422C Comm
Dual Collins VIR-432 Navigation
Dual Collins DME-442
Dual Collins ADF-462
Collins TDR-94D Mode S Transponders w/ ADS-B Out (DO-260B) per STC SA03424CH
Collins RTA-858 Color Weather Radar
Collins HF-9000 HF Radio
Collins TTR-4000 TCAS II w/ Change 7.1
Honeywell Mark V EGPWS
Dual Collins ALT-4000 Radio Altimeters
Dual Collins ADC-3000 Air Data System
Dual Collins AHS-3000 Compass System
Collins VHF AFIS System
AOA System
Dual DB System Cockpit Audio System
Aircell RST-3500 SATCOM System
Universal CVR-120 Cockpit Voice Recorder (CVR) System
RVSM Capable
Dual Collins FGS-3000 Flight Director System w/ Autopilot
Dual Collins FMC-6000 FMS
Dual Collins GPS-4000
Dual Collins VHF-422C Comm
Dual Collins VIR-432 Navigation
Dual Collins DME-442
Dual Collins ADF-462
Collins TDR-94D Mode S Transponders w/ ADS-B Out (DO-260B) per STC SA03424CH
Collins RTA-858 Color Weather Radar
Collins HF-9000 HF Radio
Collins TTR-4000 TCAS II w/ Change 7.1
Honeywell Mark V EGPWS
Dual Collins ALT-4000 Radio Altimeters
Dual Collins ADC-3000 Air Data System
Dual Collins AHS-3000 Compass System
Collins VHF AFIS System
AOA System
Dual DB System Cockpit Audio System
Aircell RST-3500 SATCOM System
Universal CVR-120 Cockpit Voice Recorder (CVR) System
RVSM Capable
Inspections
Inspection Type
Performed
Next Due
B (800 Hrs)
Performed:
August 2021
@
5,909 Hours
Next Due:
6,709 Hours
C (1600 Hrs)
Performed:
August 2021
@
5,909 Hours
Next Due:
7,509 Hours
D (3200 Hrs)
Performed:
July 2015
@
3,328 Hours
Next Due:
6,528 Hours
E (12 Mos)
Performed:
August 2021
@
5,909 Hours
Next Due:
August 2022
F (24 Mos)
Performed:
August 2021
@
5,909 Hours
Next Due:
August 2023
G (48 Mos)
Performed:
August 2021
@
5,909 Hours
Next Due:
August 2025
48 Mos Structural
Performed:
August 2021
@
5,909 Hours
Next Due:
July 2025
96 Mos Structural
Performed:
August 2021
@
5,909 Hours
Next Due:
August 2029
Landing Gear Overhaul
Performed:
September 2016
@
3,768 Hours
Next Due:
September 2028
LH Eng MPI (2500 Hrs)
Performed:
June 2017
@
4,144 Hours
Next Due:
6,644 Hours
LH Eng CZI (5000 Hrs)
Performed:
June 2017
@
4,144 Hours
Next Due:
9,144 Hours
RH Eng MPI (2500 Hrs)
Performed:
June 2017
@
4,144 Hours
Next Due:
6,644 Hours
RH Eng CZI (5000 Hrs)
Performed:
June 2017
@
4,144 Hours
Next Due:
9,144 Hours
Additional Equipment/Features
Additional Features and Cabin Entertainment:
Aviation Partners Blended Winglet Performance System Installed (STC ST01411SE)
Maintained & Operated per FAR Part 135
ADS-B Out (DO-260B) per STC SA03424CH
Aircell ATG-5000 Gogo Biz® Hi-Speed Internet Service

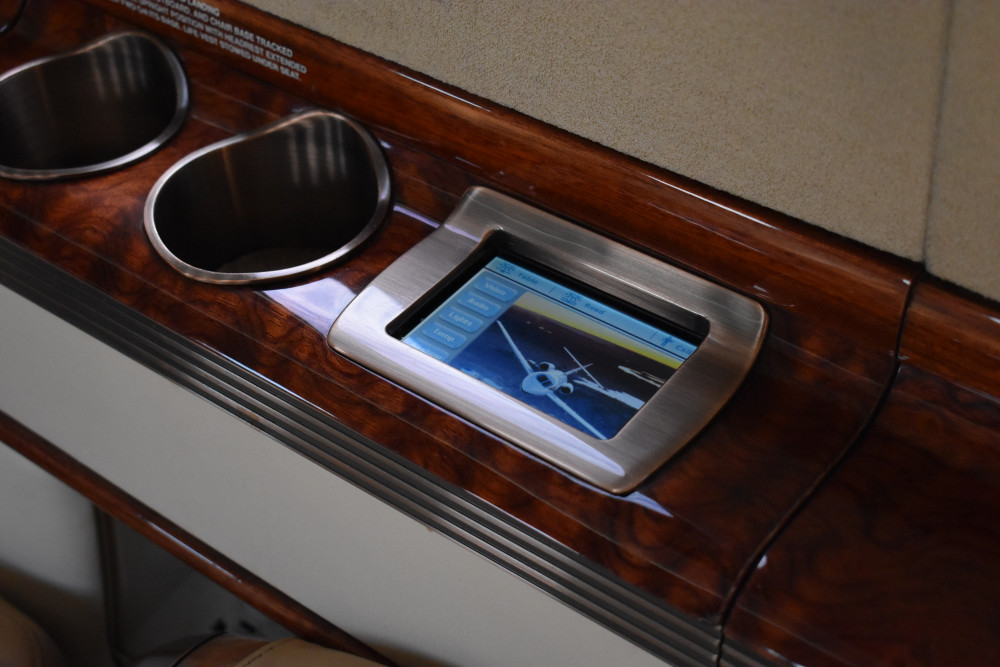

CMS-1 Cabin Management System
Hawker (Lead Acid) Main Ship Batteries
LoPresti Boom Beam Taxi/Landing Light System
Artex C406.2 ELT System
One (1) LCD Monitor RH Forward Bulkhead
One (1) LCD Monitor LH Aft Bulkhead
DVD & CD Changer Entertainment System
Airshow 400 System
Removable Jumpseat (Crew Use Only)
Thrust Reversers
Supplemental Oxygen (2x 750 Liter)
Cabin Therapeutic Oxygen System
Precise Flight Pulselite System
Aft Belted Lavatory Seat (Take-Off & Landing)
Rosen Sun Visor System
Cabin Smoke Detector System
Cabin Emergency Lighting System
DeVore Logo Lights
Cockpit Speaker Inhibit Switch
Aviation Partners Blended Winglet Performance System Installed (STC ST01411SE)
Maintained & Operated per FAR Part 135
ADS-B Out (DO-260B) per STC SA03424CH
Aircell ATG-5000 Gogo Biz® Hi-Speed Internet Service
CMS-1 Cabin Management System
Hawker (Lead Acid) Main Ship Batteries
LoPresti Boom Beam Taxi/Landing Light System
Artex C406.2 ELT System
One (1) LCD Monitor RH Forward Bulkhead
One (1) LCD Monitor LH Aft Bulkhead
DVD & CD Changer Entertainment System
Airshow 400 System
Removable Jumpseat (Crew Use Only)
Thrust Reversers
Supplemental Oxygen (2x 750 Liter)
Cabin Therapeutic Oxygen System
Precise Flight Pulselite System
Aft Belted Lavatory Seat (Take-Off & Landing)
Rosen Sun Visor System
Cabin Smoke Detector System
Cabin Emergency Lighting System
DeVore Logo Lights
Cockpit Speaker Inhibit Switch
Interior
Number Of Passengers:
9
Interior Last Refurbished:
2005
New February 2005 @ Raytheon Aircraft Services - Little Rock, AR

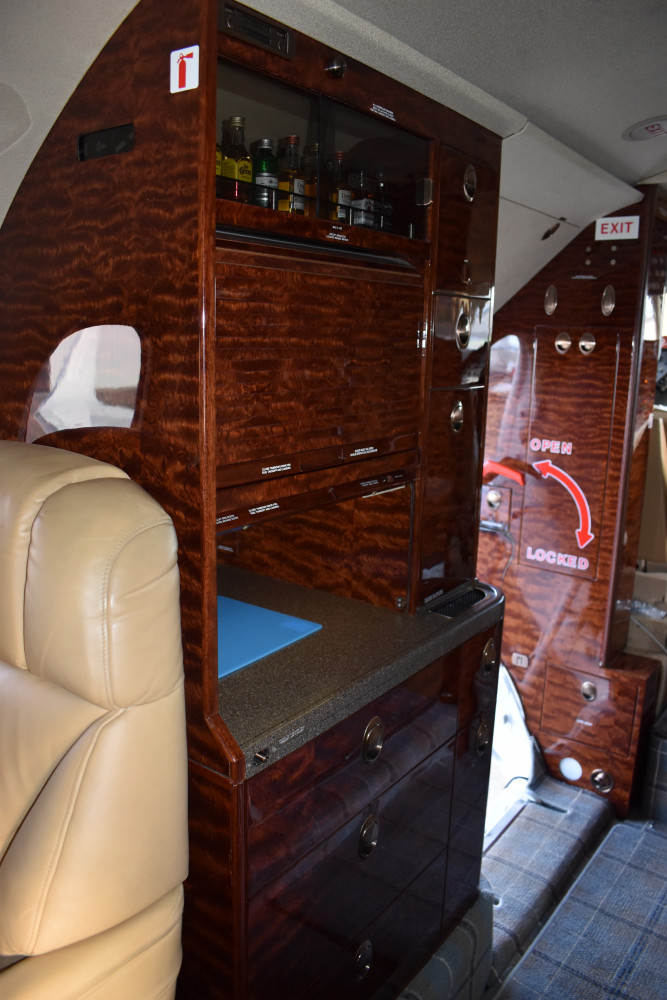

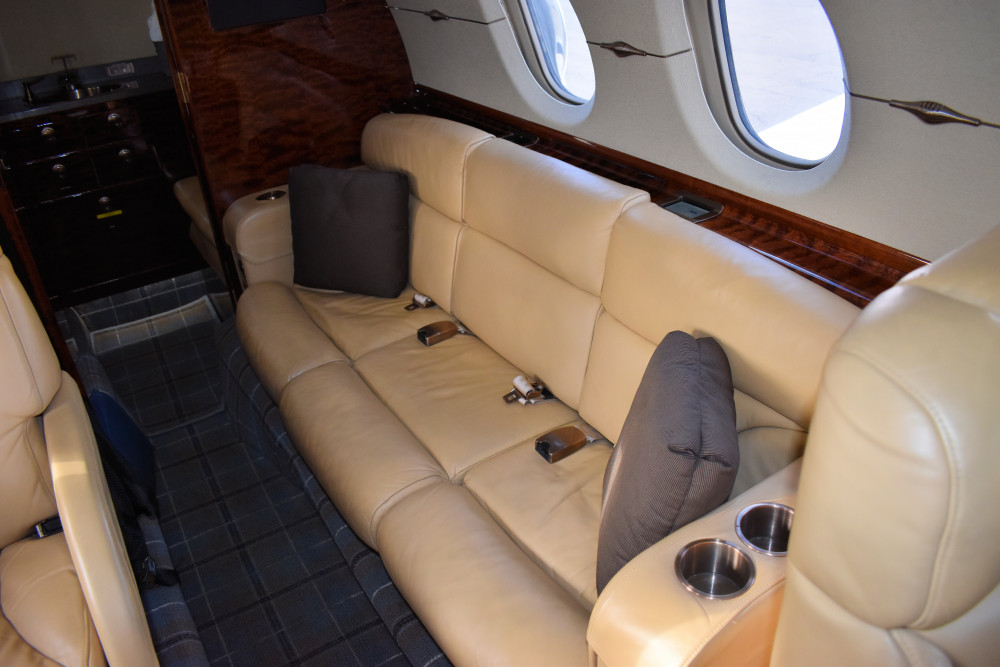

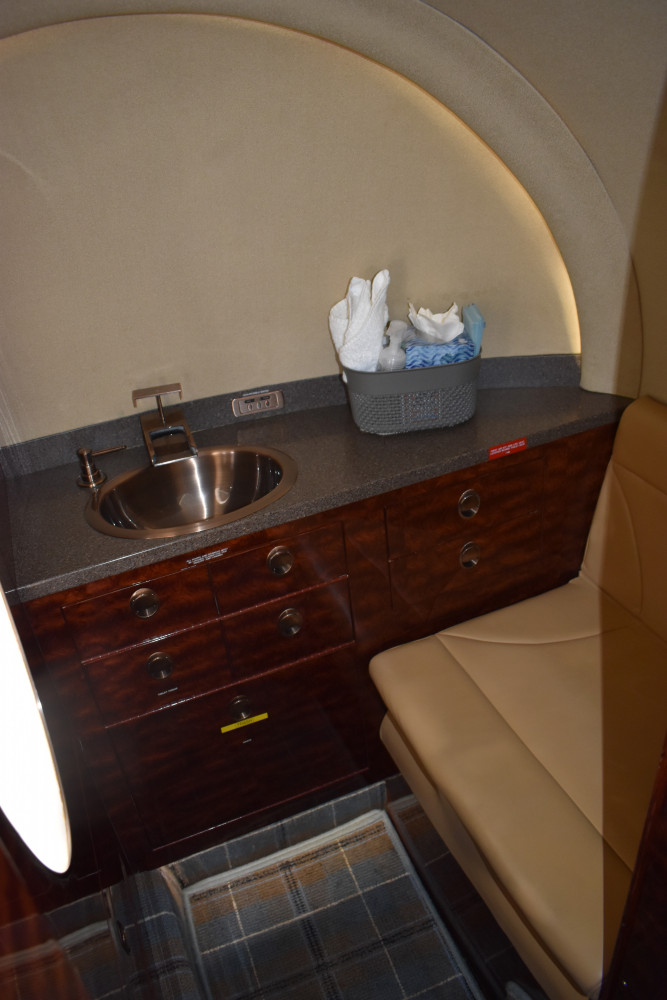

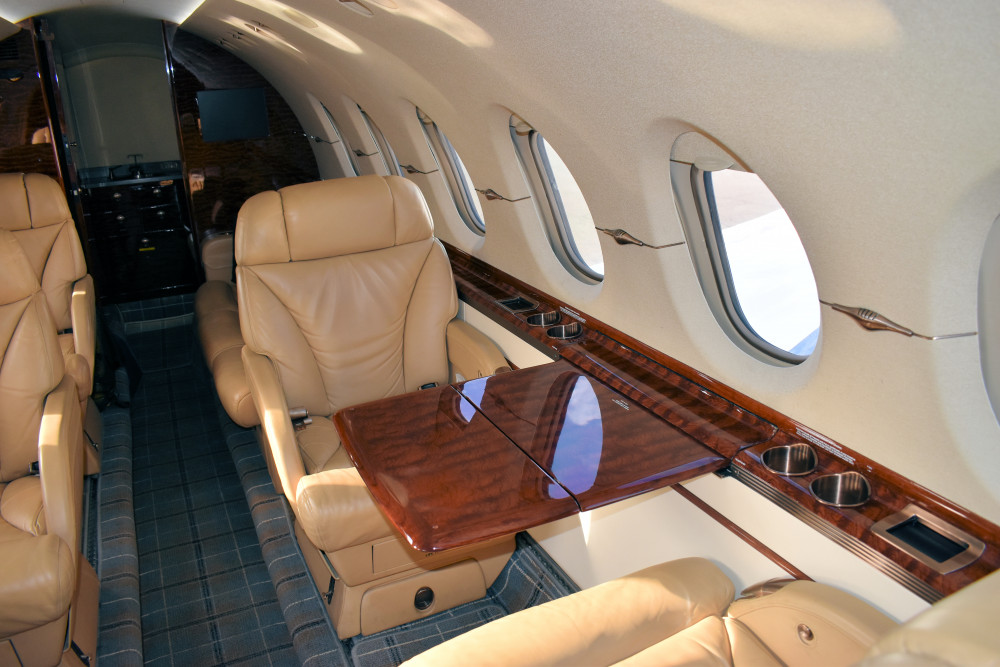

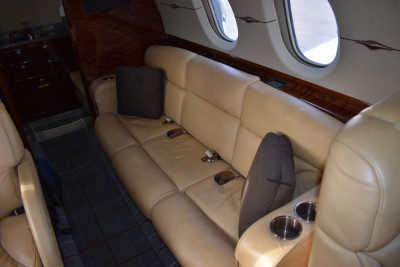

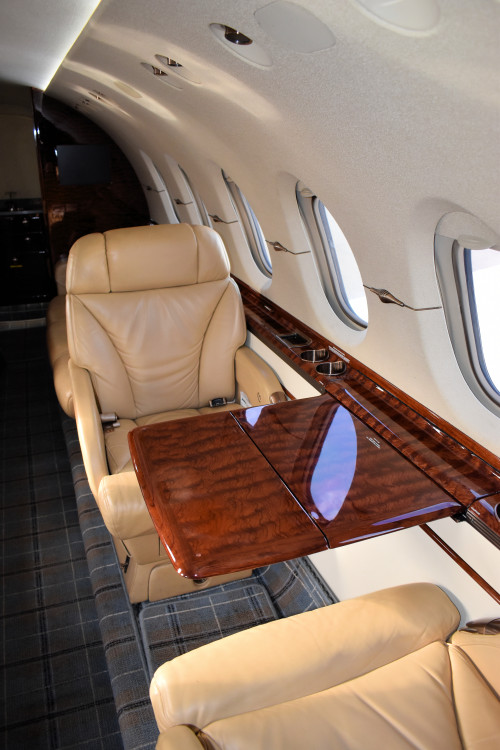

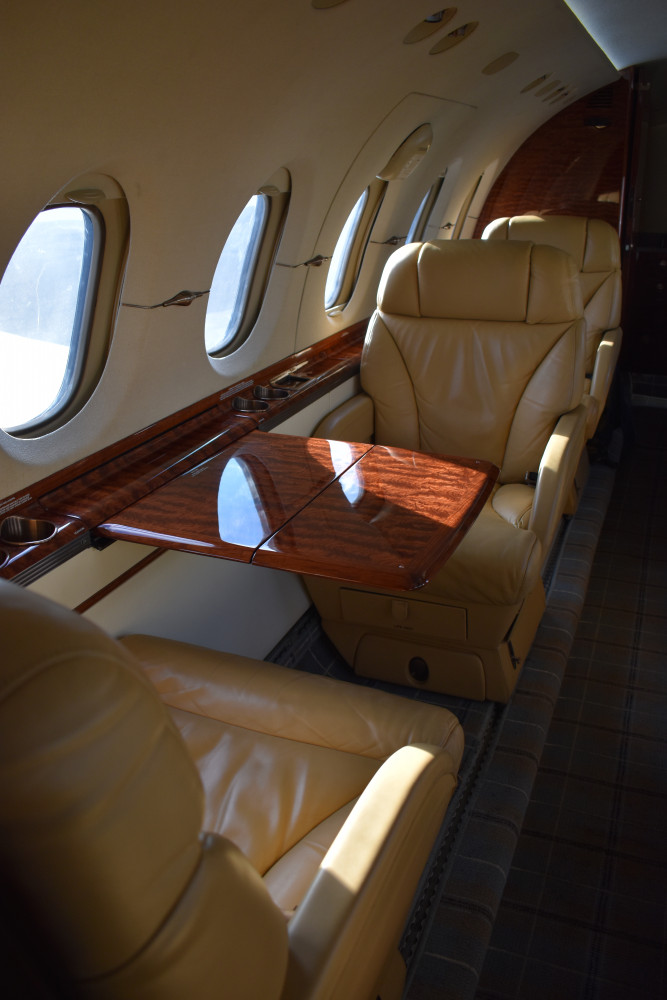

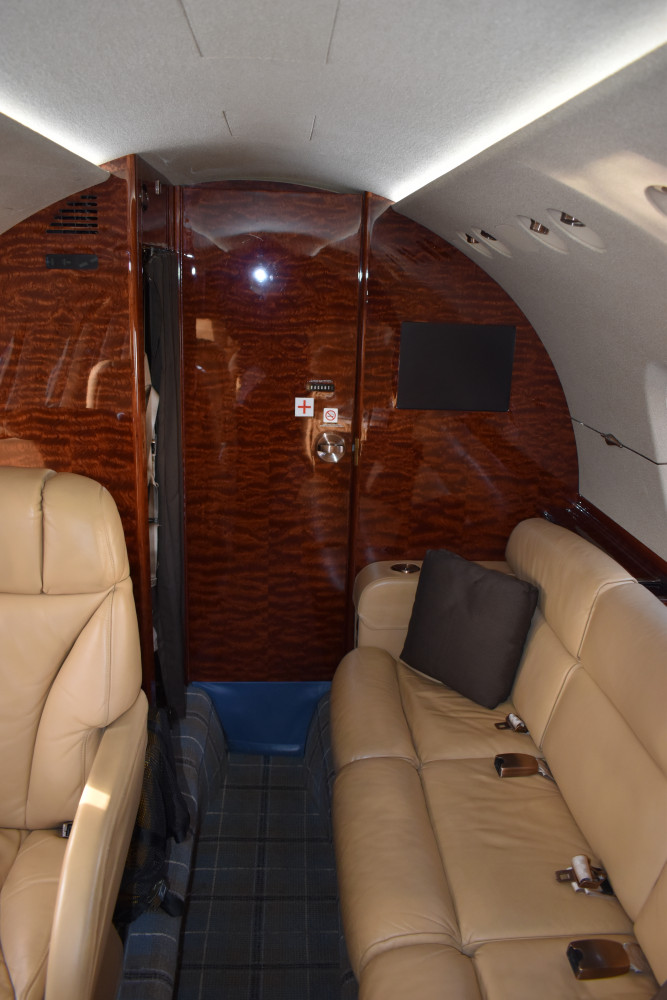

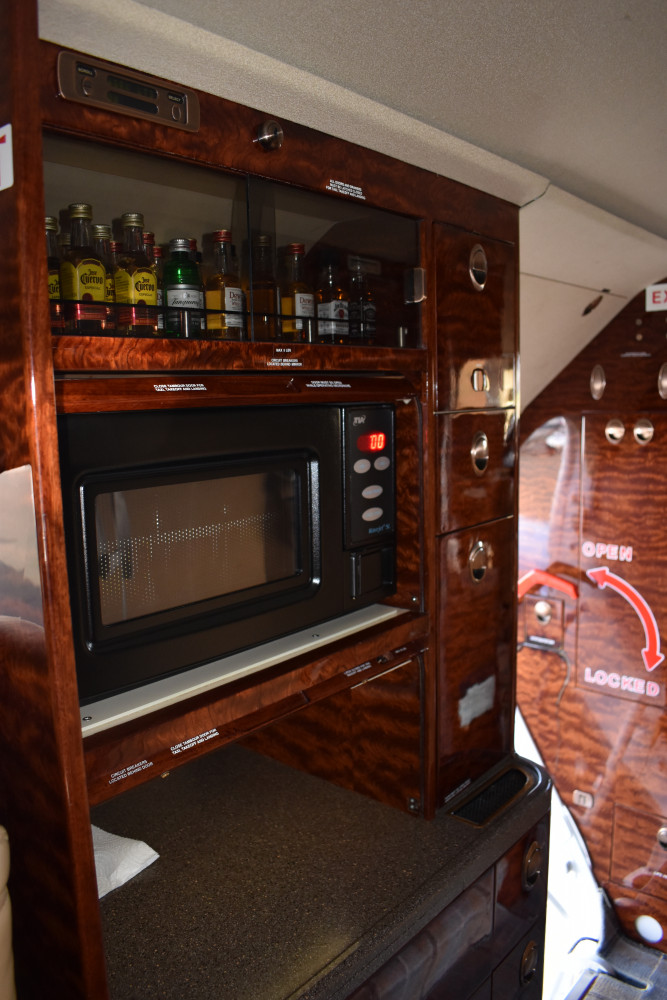

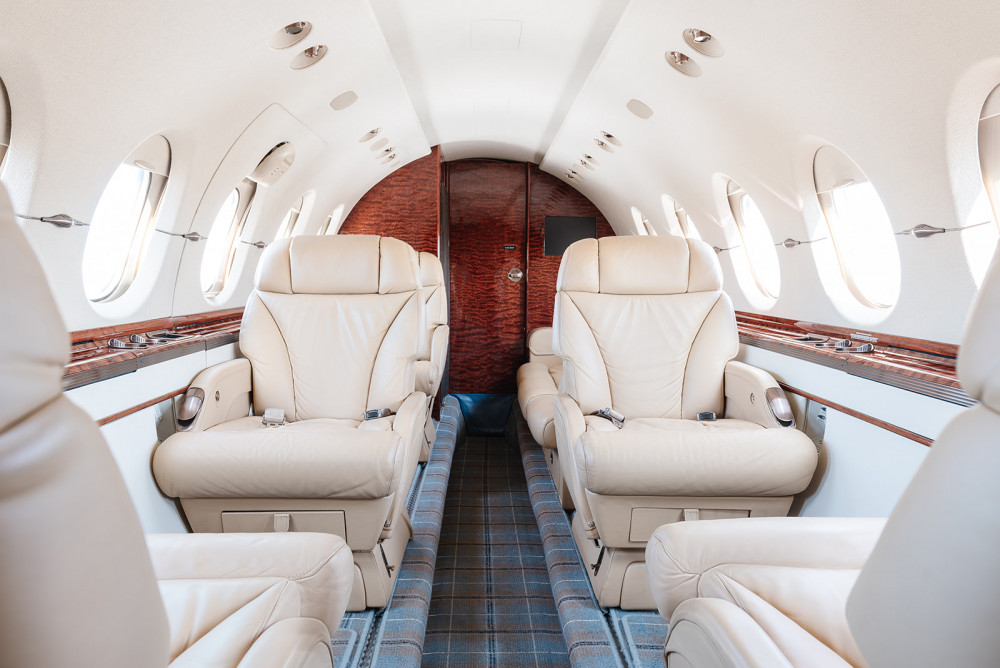

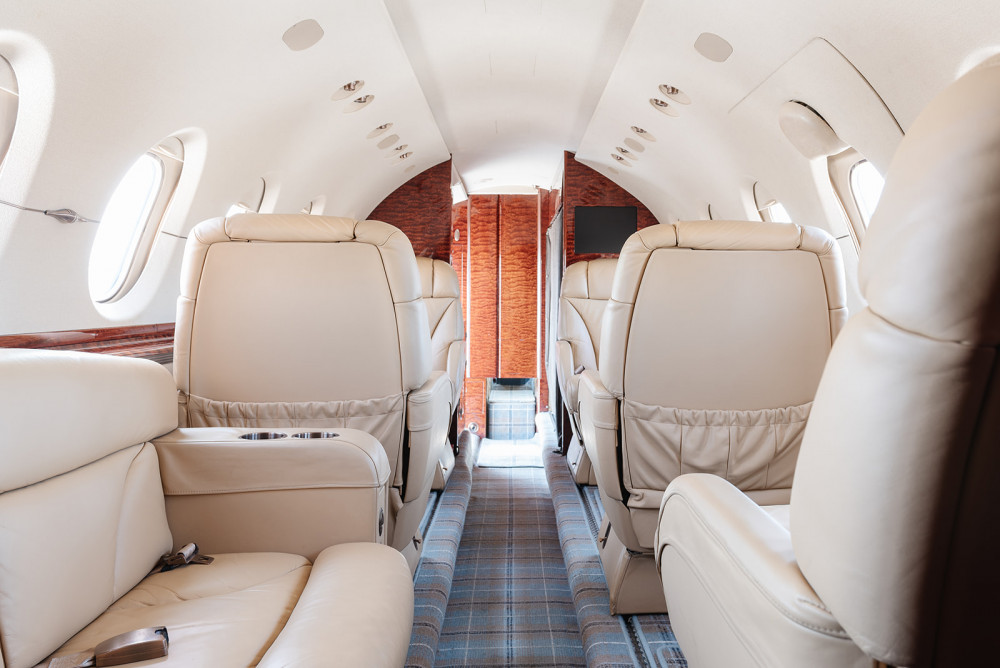

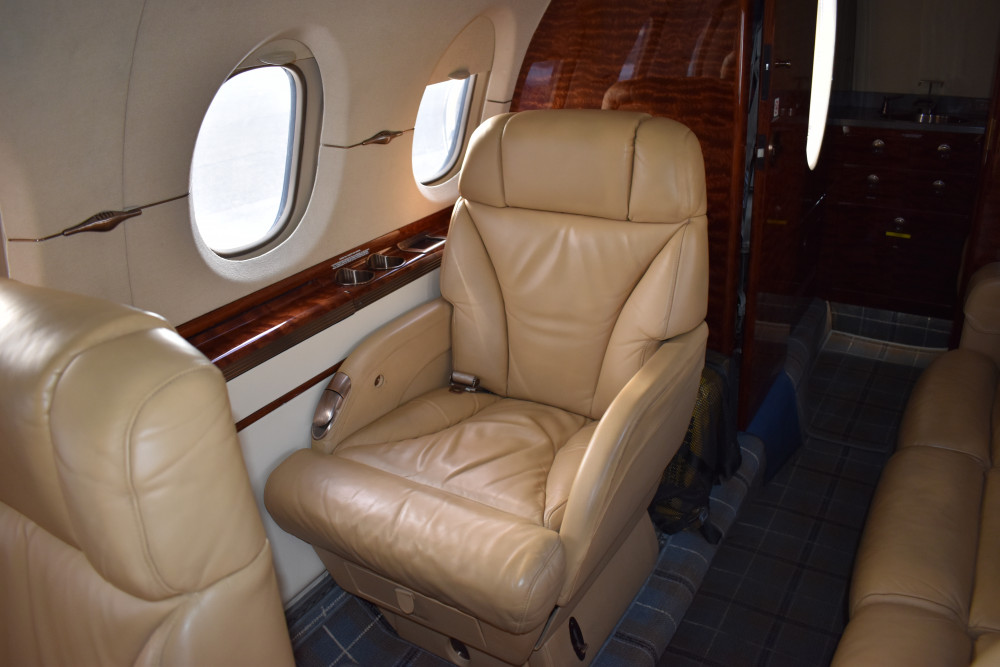

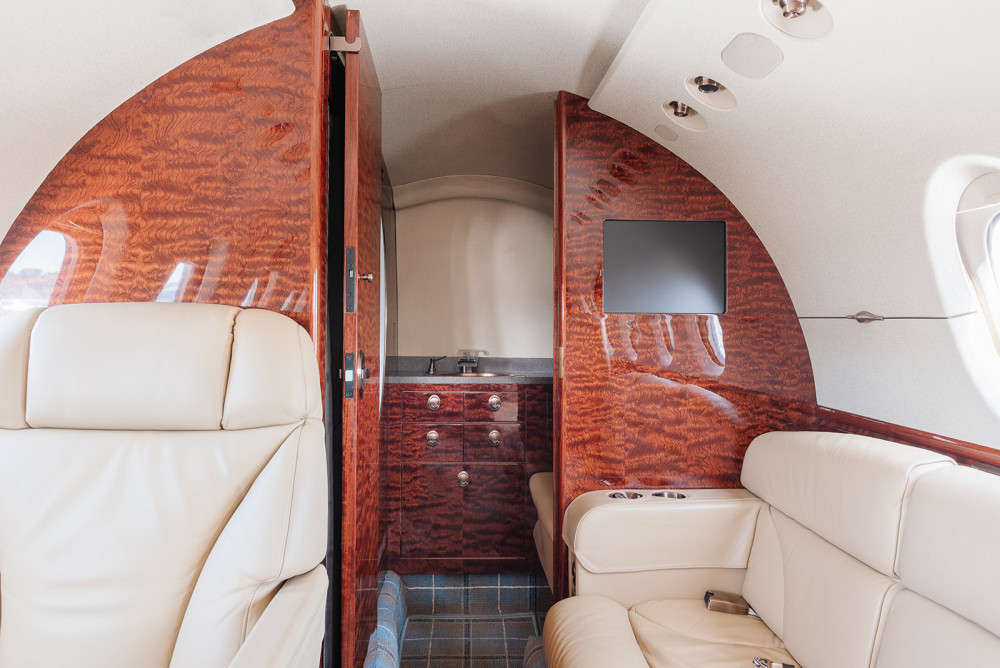

Nine (9) passenger, interior featuring a forward cabin four-place club with dual executive foldout tables and an aft cabin right-hand single club chair with executive foldout table opposite a three- place divan and aft belted lavatory seat (for 9th passenger). Club chairs and the divan are covered in light tan leather with drink rail stowage compartments. Entertainment includes one (1) LCD monitor mounted on right forward bulkhead and one (1) LCD monitor mounted on left aft bulkhead. Cabin is equipped with Airshow 400 video display system with cabin briefer, DVD Player and CD Changer entertainment system. The forward service area includes a removable crew jump seat, forward storage area and a forward full-service galley with TIA microwave oven, TIA coffee maker, cold storage unit, and ample storage for glassware, china, catering trays and additional supplies. The aft cabin includes a full service belted lavatory with sliding pocket door and cabin-accessible baggage area. The cabin wood/cabinetry is finished in a beautifully grained, lightly stained, high-gloss maple veneer accented with satin brass hardware finished with complimentary plaid wool carpeting.
NOTE: Cabin Lower Side Panels and Upper Accent Panels refurbished January 2016 @ Elliott Aviation – Moline, IL.
Nine (9) passenger, interior featuring a forward cabin four-place club with dual executive foldout tables and an aft cabin right-hand single club chair with executive foldout table opposite a three- place divan and aft belted lavatory seat (for 9th passenger). Club chairs and the divan are covered in light tan leather with drink rail stowage compartments. Entertainment includes one (1) LCD monitor mounted on right forward bulkhead and one (1) LCD monitor mounted on left aft bulkhead. Cabin is equipped with Airshow 400 video display system with cabin briefer, DVD Player and CD Changer entertainment system. The forward service area includes a removable crew jump seat, forward storage area and a forward full-service galley with TIA microwave oven, TIA coffee maker, cold storage unit, and ample storage for glassware, china, catering trays and additional supplies. The aft cabin includes a full service belted lavatory with sliding pocket door and cabin-accessible baggage area. The cabin wood/cabinetry is finished in a beautifully grained, lightly stained, high-gloss maple veneer accented with satin brass hardware finished with complimentary plaid wool carpeting.
NOTE: Cabin Lower Side Panels and Upper Accent Panels refurbished January 2016 @ Elliott Aviation – Moline, IL.

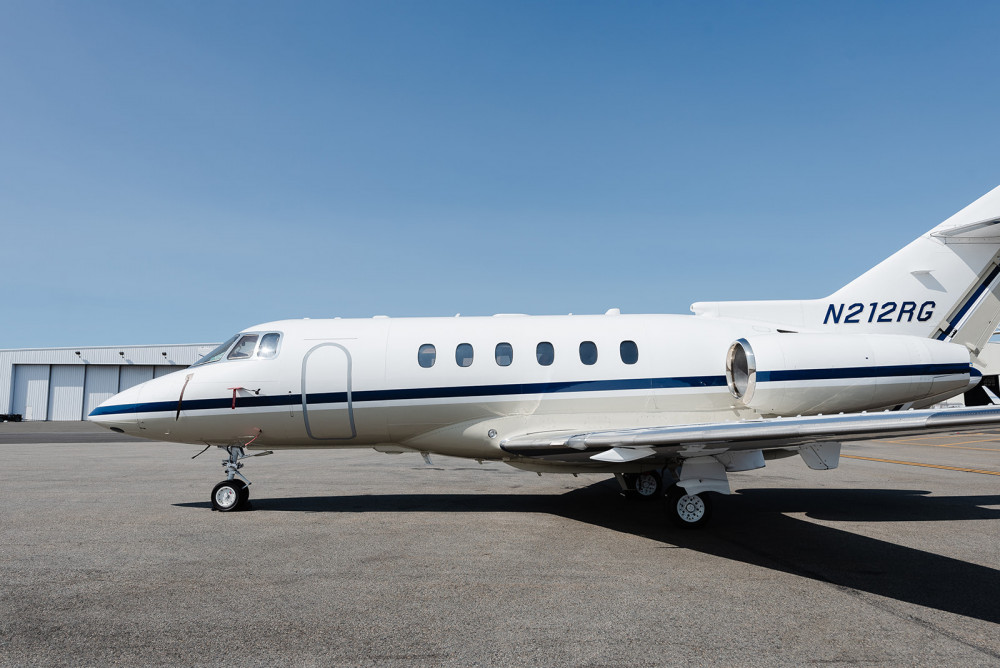

Exterior
Painted January 2016 @ Elliott Aviation – Moline, IL

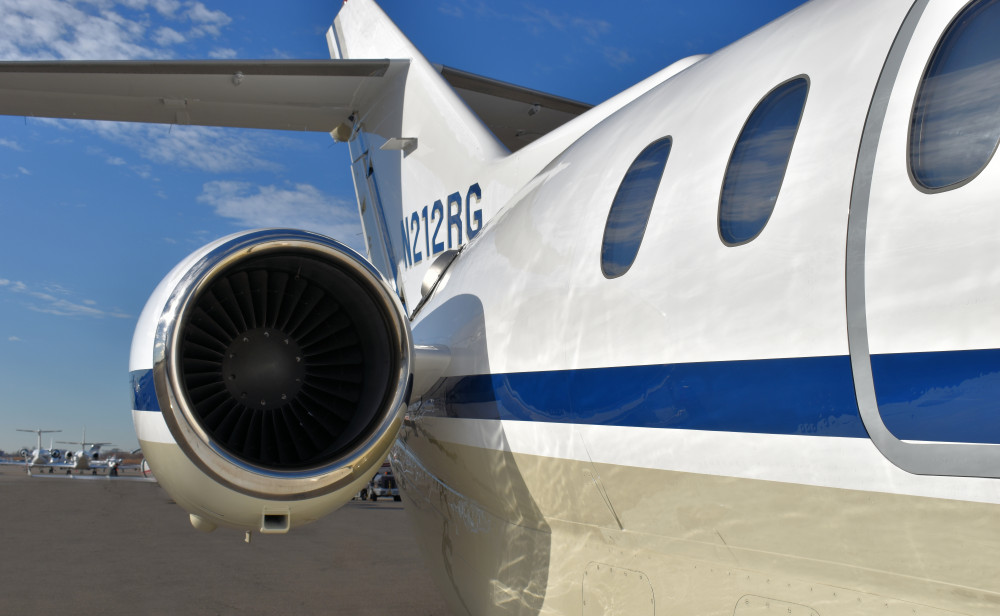

Overall Jet Glo White with Post Office Blue, Navigator Tan & Medium Grey Accent Striping. Aviation Partners Blended Winglets Installed (STC ST01411SE).
Overall Jet Glo White with Post Office Blue, Navigator Tan & Medium Grey Accent Striping. Aviation Partners Blended Winglets Installed (STC ST01411SE).
Weights
Max Takeoff Weight:
28,000.00
Max Landing Weight:
23,350.00
Max Zero Fuel Weight:
18,450.00
Empty Weight:
15,987.00
Basic Operating Weight:
16,809.00
Ramp Weight:
28,120.00
Fuel Capacity:
10,000.00
