1999 Gulfstream G-IV SP
Price: $4,295,000
- Serial Number: 1357
- Tail Number: N77FK
- Hours: 9,318
- Cycles: 3,191
Two Owners Since New
Fourteen (14) Passenger Aft Galley Configuration
Maintenance by Gulfstream Farnborough/Luton & Savannah
ADS-B Out V2 / HUD / EVS / VGS
Gulfstream Aircraft Ownership Service (AOS)
Fourteen (14) Passenger Aft Galley Configuration
Maintenance by Gulfstream Farnborough/Luton & Savannah
ADS-B Out V2 / HUD / EVS / VGS
Gulfstream Aircraft Ownership Service (AOS)
Airframe
Total Hours:
9,318
Total Cycles:
3,191
Program Coverage:
GCMP
Engines
Rolls Royce Derby TAY611-8 (MSG3)
Engine 1
Serial Number:
16833
Hours Since New:
9,233
Cycles Since New:
3,150
Engine 2
Serial Number:
16834
Hours Since New:
9,184
Cycles Since New:
3,134
APU
Description:
Honeywell GTCP36-150(G)
Serial Number:
P-190
Total Time Since New:
4,228

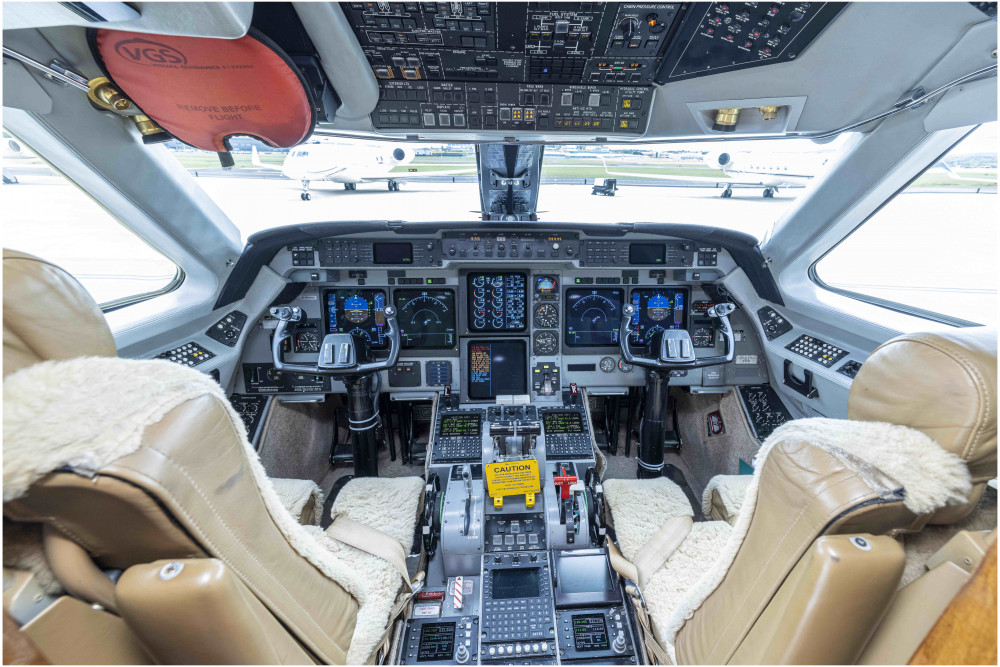

Avionics
Honeywell SPZ-8400 6-Tube EFIS
Central Management System (CMS)
Honeywell HUD-2020 Head Up Display (HUD)
Enhanced Vision Assurance System (EVAS)
Enhanced Vision System (EVS)
Visual Guidance System (VGS)
Triple Collins VHF-422C/VHF 4000 Comms w/8.33 Spacing
Dual Collins VIR-432 Navs w/FM Immunity
Dual Collins ADF-462 ADFs
Dual Collins DME-442 DMEs
Dual ADZ-810 Air Data Computers
Dual Collins TDR-94D Mode S Transponders w/Enhanced Surveillance
Dual Honeywell NZ-2000 FMS w/6.1
Dual Honeywell 12-Channel GPS
Triple Honeywell LASEREF
AlliedSignal Mark V EGPWS w/Windshear Detection
Honeywell TCAS-2000 w/Change 7
Dual Honeywell HF-9034A HFs w/Coltech SELCAL SAT / AFIS
Dual Honeywell AA-300 Radar Altimeter
Honeywell Primus 880 Weather Radar
Honeywell LSZ-860 Stormscope
Digital Flight Data Recorder (57 Parameters)
Fairchild Cockpit Voice Recorder
407 MHz ELT Interface
Central Management System (CMS)
Honeywell HUD-2020 Head Up Display (HUD)
Enhanced Vision Assurance System (EVAS)
Enhanced Vision System (EVS)
Visual Guidance System (VGS)
Triple Collins VHF-422C/VHF 4000 Comms w/8.33 Spacing
Dual Collins VIR-432 Navs w/FM Immunity
Dual Collins ADF-462 ADFs
Dual Collins DME-442 DMEs
Dual ADZ-810 Air Data Computers
Dual Collins TDR-94D Mode S Transponders w/Enhanced Surveillance
Dual Honeywell NZ-2000 FMS w/6.1
Dual Honeywell 12-Channel GPS
Triple Honeywell LASEREF
AlliedSignal Mark V EGPWS w/Windshear Detection
Honeywell TCAS-2000 w/Change 7
Dual Honeywell HF-9034A HFs w/Coltech SELCAL SAT / AFIS
Dual Honeywell AA-300 Radar Altimeter
Honeywell Primus 880 Weather Radar
Honeywell LSZ-860 Stormscope
Digital Flight Data Recorder (57 Parameters)
Fairchild Cockpit Voice Recorder
407 MHz ELT Interface
Navigation and Compliance
ADS-B Equipped:Yes
ADS-B Out V2
Honeywell HUD-2020 Head Up Display (HUD)
Enhanced Vision Assurance System (EVAS)
Enhanced Vision System (EVS)
Visual Guidance System (VGS)
Dual Honeywell NZ-2000 FMS w/6.1
Honeywell HUD-2020 Head Up Display (HUD)
Enhanced Vision Assurance System (EVAS)
Enhanced Vision System (EVS)
Visual Guidance System (VGS)
Dual Honeywell NZ-2000 FMS w/6.1
Additional Equipment/Features
ASC 190 Gross Weight Upgrade
Jukebox IFE Upgrade
Baker Audio Panels
Life Rafts w/Satellite ELT
Microwave & High Temp Oven
Jukebox IFE Upgrade
Baker Audio Panels
Life Rafts w/Satellite ELT
Microwave & High Temp Oven
Interior
Number Of Passengers:
14
Interior Last Refurbished:
2009
Refurbished August 2009

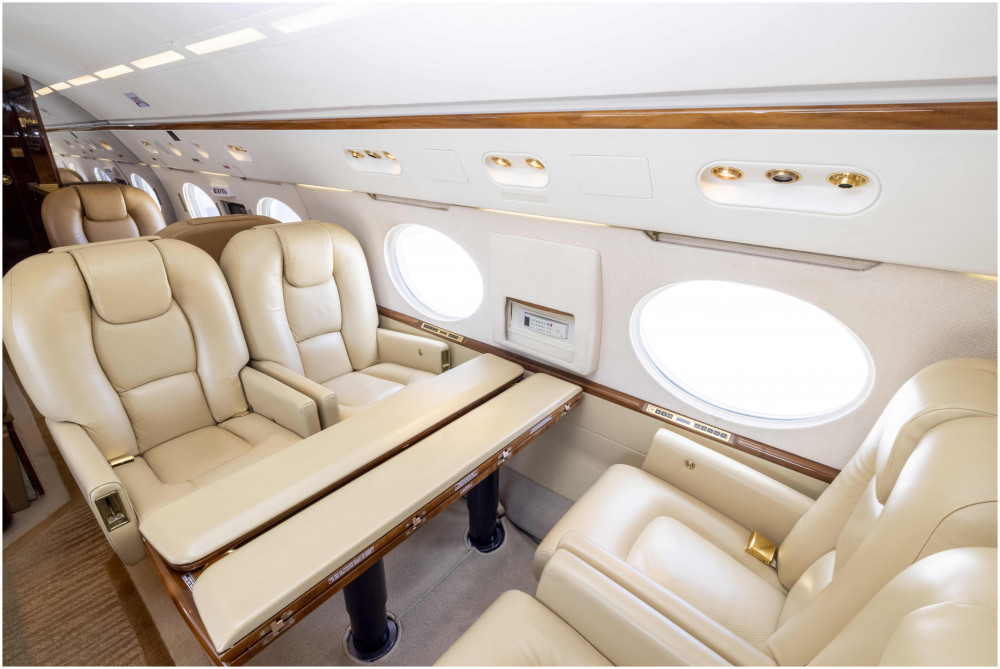

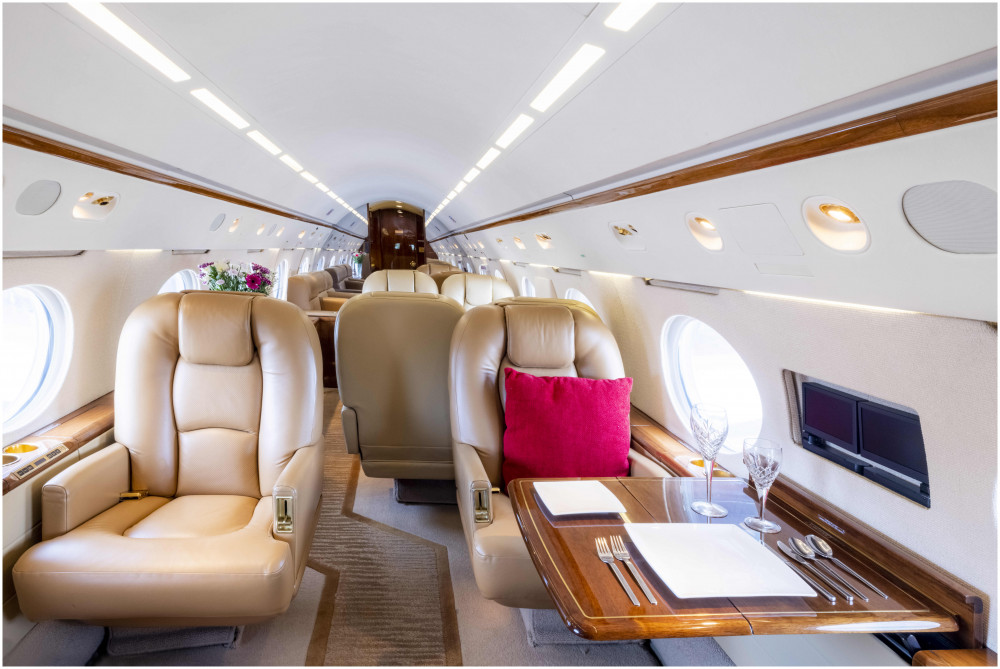

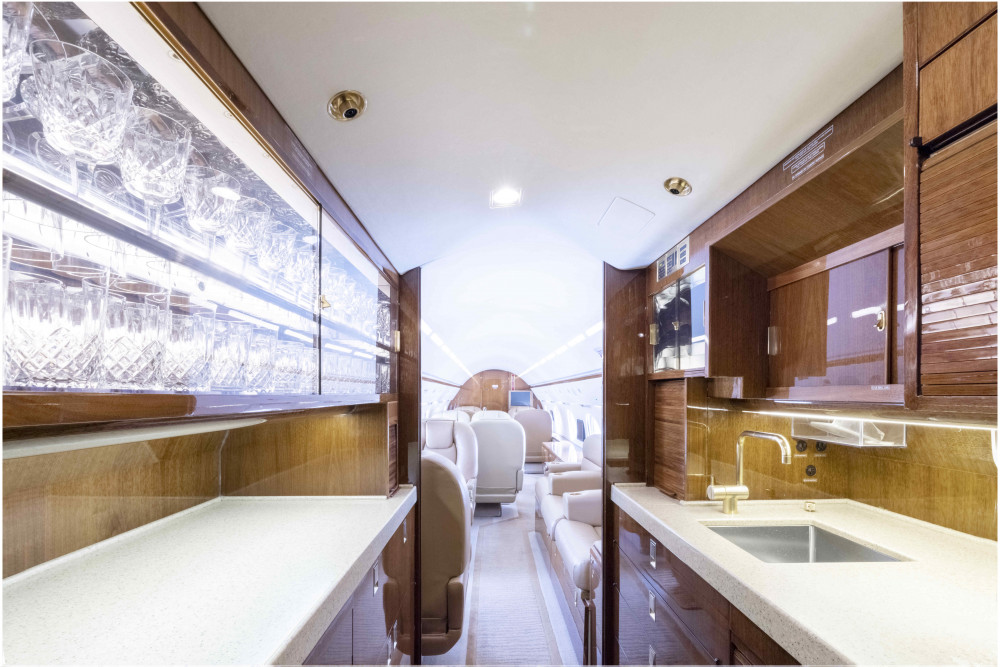

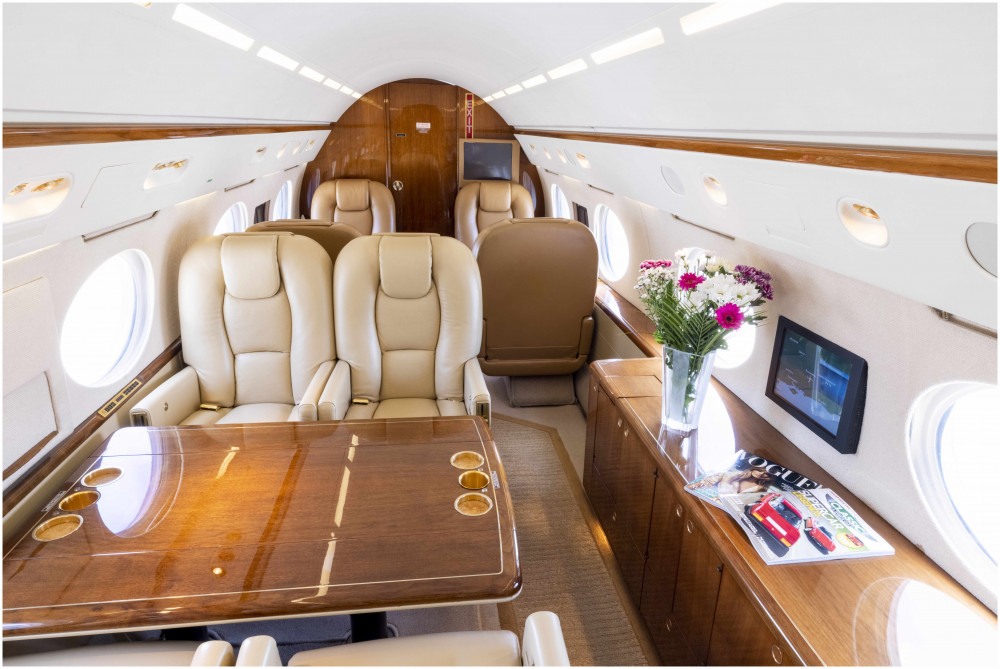

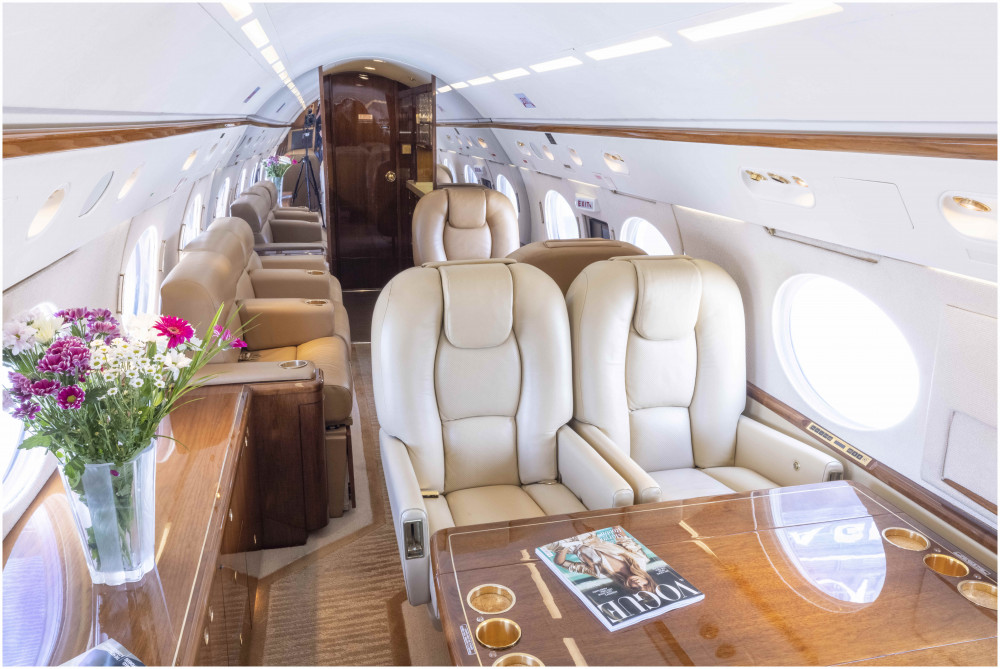

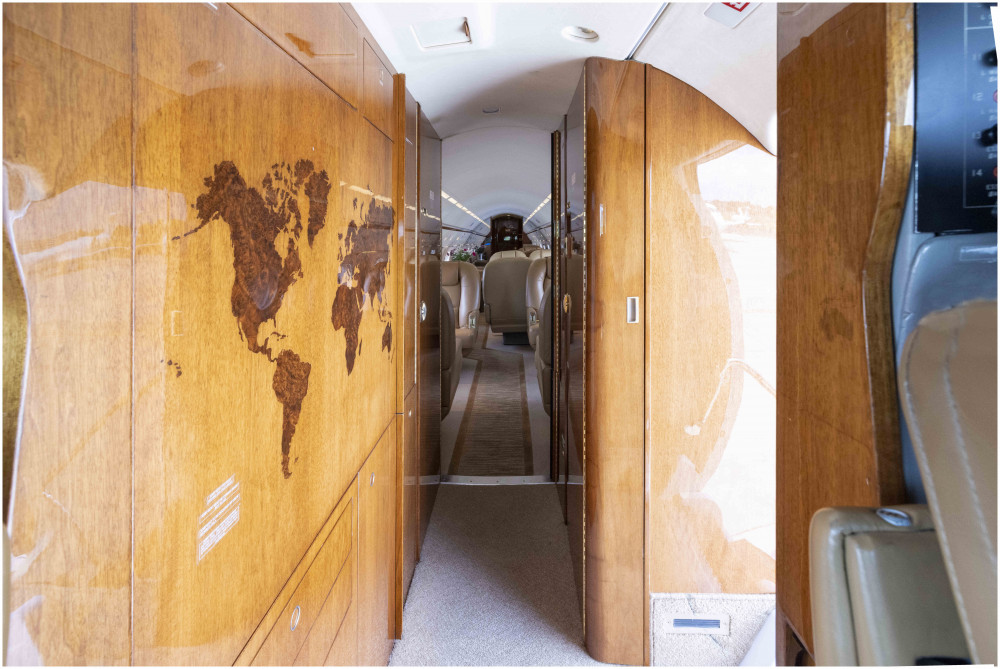

Fourteen (14) passenger configuration. Stunning World Map wood inlay in the entryway followed by a forward four (4) place club. The mid cabin features a four (4) place conference group opposite a credenza with a monitor. The aft cabin offers a two (2) place club opposite a four (4) place divan and a fully equipped galley. Additional cabin amenities include Flight Display swing out monitors, medium colored high-gloss wood veneer complimented by gold colored plating. All seating is completed in harmonious beige toned leather.
Fourteen (14) passenger configuration. Stunning World Map wood inlay in the entryway followed by a forward four (4) place club. The mid cabin features a four (4) place conference group opposite a credenza with a monitor. The aft cabin offers a two (2) place club opposite a four (4) place divan and a fully equipped galley. Additional cabin amenities include Flight Display swing out monitors, medium colored high-gloss wood veneer complimented by gold colored plating. All seating is completed in harmonious beige toned leather.
Entertainment
Forward Bulkhead Mounted Monitor
Credenza Monitor
Flight Display Swing Out Monitors
Credenza Monitor
Flight Display Swing Out Monitors
Exterior
Base Paint Colors:
Matterhorn White
Stripe Colors:
Custom Multi-Color Blue & Red Accent Striping
Last Painted:
2015
Painted February 2015

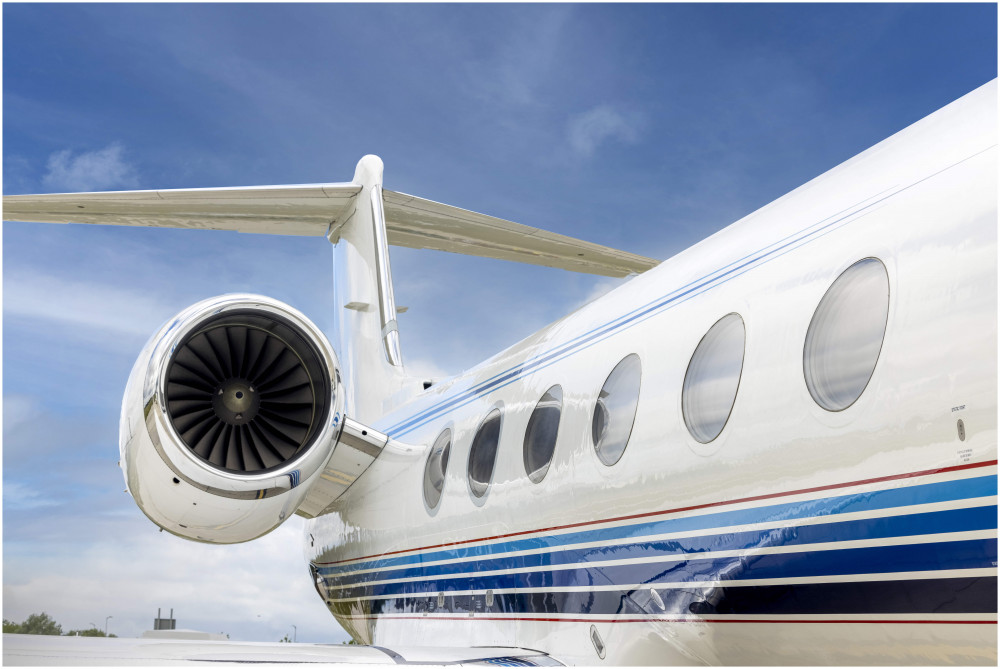

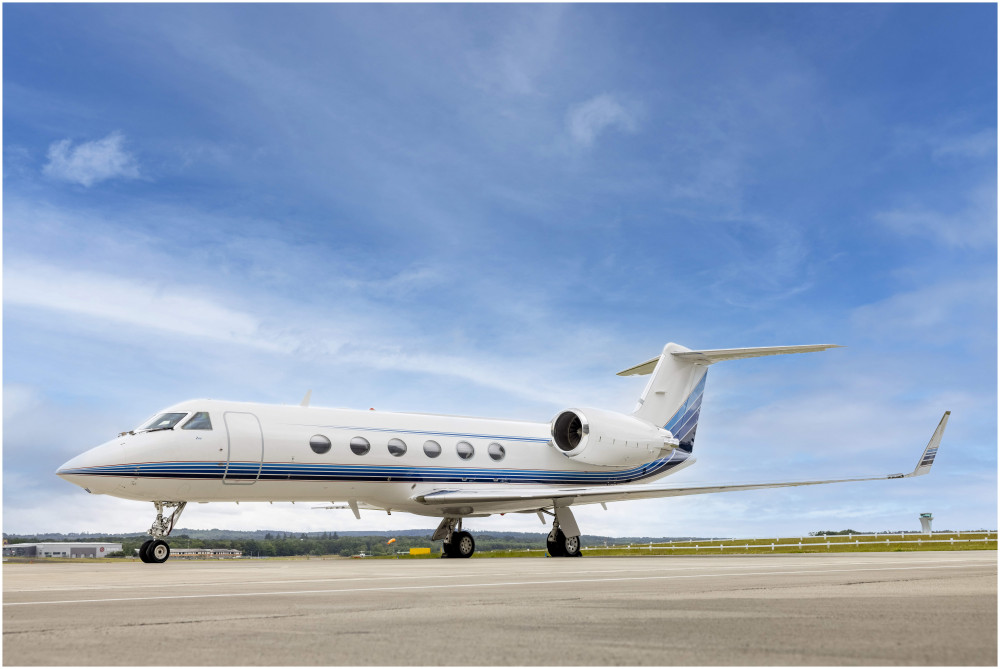

Overall Matterhorn White with Custom Multi-Color Blue & Red Accent Striping.
Overall Matterhorn White with Custom Multi-Color Blue & Red Accent Striping.
