2014 Bombardier Learjet 75
Price: Call for Price
- Serial Number: 0485
- Tail Number: N752R
- Hours: 1,002
- Cycles: 728
One U.S. Owner Since New
Transferrable Manufacturer’s Warranties Thru December 2019
Engines & APU Enrolled on MSP Gold
ATG-5000 Broadband Wi-Fi with Talk & Text
Transferrable Manufacturer’s Warranties Thru December 2019
Engines & APU Enrolled on MSP Gold
ATG-5000 Broadband Wi-Fi with Talk & Text
Airframe
Total Hours:
1,002
Total Cycles:
728
Home Base:
Memphis
One U.S. Owner Since New
Transferrable Manufacturer’s Warranties Thru December 2019
Engines & APU Enrolled on MSP Gold
ATG-5000 Broadband Wi-Fi with Talk & Text
Transferrable Manufacturer’s Warranties Thru December 2019
Engines & APU Enrolled on MSP Gold
ATG-5000 Broadband Wi-Fi with Talk & Text
Engines
Engines: Honeywell TFE731-40BR
1002 Hours Since New
728 Cycles Since New
Mode S Transponders w/ADS-B
Single HF w/SELCAL
RVSM Compliant / Capable
FM Immunity / 8.33 Spacing
MNPS / RNP-5 / RNP-10 Compliant
1002 Hours Since New
728 Cycles Since New
Mode S Transponders w/ADS-B
Single HF w/SELCAL
RVSM Compliant / Capable
FM Immunity / 8.33 Spacing
MNPS / RNP-5 / RNP-10 Compliant
Engine Program Coverage:
MSP Gold
APU
APU Program Coverage:
MSP Gold
Total Time Since New:
464
Total Cycles Since New:
832
Avionics
Bombardier Vision Flight Deck w/Garmin G5000 Avionics Suite
Synthetic Vision Systems (SVS)
Triple Garmin GDU-1400 14” Widescreen LED (EFIS) Display Units;
Two (2) Primary Flight Displays (PFD’s); One (1) Multi-Function Display
Engine Indication and Crew Awareness System (EICAS)
Single 3-Axis Automatic Flight Control System (AFCS)
Dual Garmin GIA-63W Com/Nav
Rockwell Collins DME 4000
Dual GTX 3000 Mode S Transponders w/ADS-B Out
Dual Flight Management Systems (FMS)
Dual 24 Channel GPS WAAS Receivers
Garmin GTS 8000 TCAS II with Change 7.1
Terrain Awareness and Warning System (TAWS)
GWX 70 Enhanced Weather Radar w/Turbulence Detection
Rockwell Collins ALT 4000 Radio Altimeter
Single High Frequency Radio w/SELCAL
L-3 Communications GH-3900 Electronic Standby Instrument System (ESIS)
Dual Garmin FRS-7800 AHRS
Dual Garmin GDC-7400 Air Data Computers
Dual Garmin GMA-36 Audio Panels
Garmin FDR-66 VHF Radio
L-3 FA-2100 (120 Minute) CVR
Artex C406 ELT
Synthetic Vision Systems (SVS)
Triple Garmin GDU-1400 14” Widescreen LED (EFIS) Display Units;
Two (2) Primary Flight Displays (PFD’s); One (1) Multi-Function Display
Engine Indication and Crew Awareness System (EICAS)
Single 3-Axis Automatic Flight Control System (AFCS)
Dual Garmin GIA-63W Com/Nav
Rockwell Collins DME 4000
Dual GTX 3000 Mode S Transponders w/ADS-B Out
Dual Flight Management Systems (FMS)
Dual 24 Channel GPS WAAS Receivers
Garmin GTS 8000 TCAS II with Change 7.1
Terrain Awareness and Warning System (TAWS)
GWX 70 Enhanced Weather Radar w/Turbulence Detection
Rockwell Collins ALT 4000 Radio Altimeter
Single High Frequency Radio w/SELCAL
L-3 Communications GH-3900 Electronic Standby Instrument System (ESIS)
Dual Garmin FRS-7800 AHRS
Dual Garmin GDC-7400 Air Data Computers
Dual Garmin GMA-36 Audio Panels
Garmin FDR-66 VHF Radio
L-3 FA-2100 (120 Minute) CVR
Artex C406 ELT
Navigation and Compliance
Mode S Transponders w/ADS-B
Single HF w/SELCAL
RVSM Compliant / Capable
FM Immunity / 8.33 Spacing
MNPS / RNP-5 / RNP-10 Compliant
Single HF w/SELCAL
RVSM Compliant / Capable
FM Immunity / 8.33 Spacing
MNPS / RNP-5 / RNP-10 Compliant
Interior

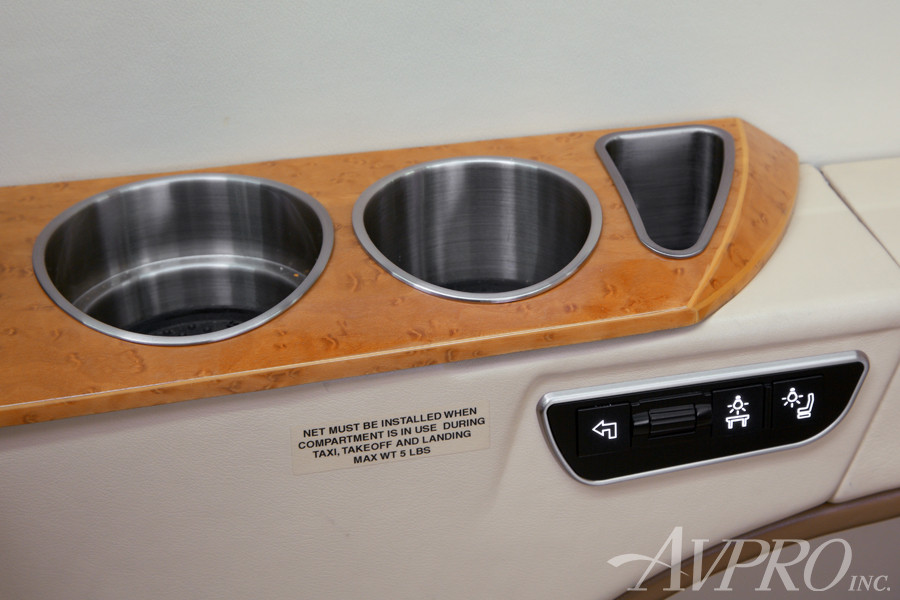

Fireblocked double-club main cabin configured floorplan certified for nine passengers including the belted lavatory seat located aft of the main cabin. This stylishly appointed interior features Ecru (light beige) leather seating surfaces and side ledges with Tobacco (darker beige) accents; complimented by Cream colored seat belts. An Almond Ultra-Leather headliner and cockpit curtain further compliment the cabin soft goods; as does the overall darker grey patterned carpeting. The forward refreshment center/Galley, drink-rails and fold-out tables are all finished in a High Gloss Birdseye Maple complimented by a soft Satin Nickel plating that runs throughout the cabin and lavatory. Galley amenities include a heated liquid dispenser and a TIA WaveJet microwave oven. The galley and lavatory also feature coordinated Real Rock Slate countertops. Additional cabin amenities also include a forward left-side bulkhead mounted 12” Color Monitor as well as six (6) Pop-Up 7” Monitors/Touchscreens; with four (4) screens at all forward club seats and two (2) located at the aft left-side seating positions. There are also USB Ports at the main cabin seats as well as an HDMI Port at the cabin master seat. The private aft lavatory compartment closes off from the main cabin through use of full-size Birdseye Maple pocket doors.
Originally completed December 2014 by Learjet, Wichita, KS
Originally completed December 2014 by Learjet, Wichita, KS
Entertainment
Lufthansa Technik “NICE” Cabin Management System
Airshow Flight Information Cabin Display
Airshow Flight Information Cabin Display
Exterior

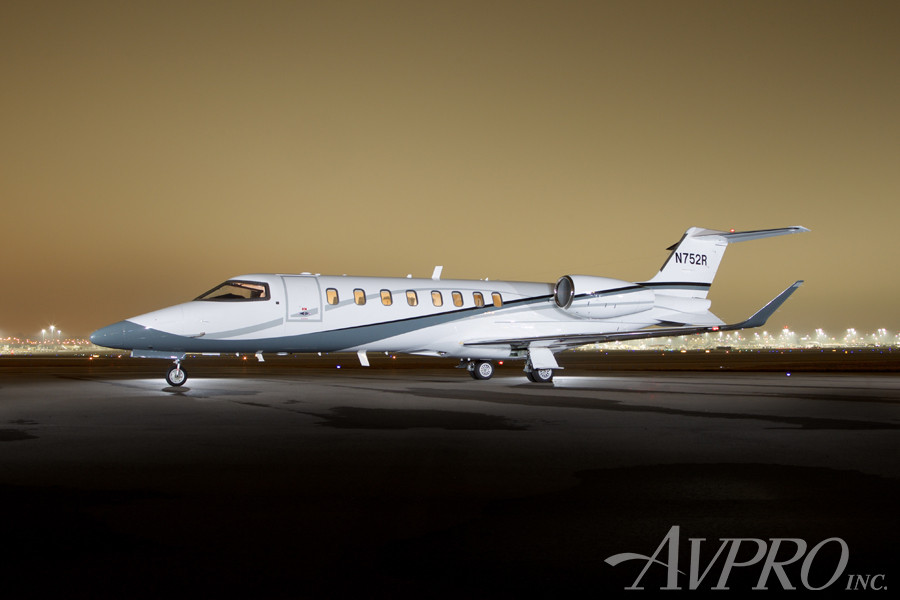

Overall White Fuselage with Forward to Aft Varying Shades of Gray and Single Black Accent Stripes.
Originally painted December 2014 by Learjet, Wichita, KS.
Originally painted December 2014 by Learjet, Wichita, KS.
